Quick Details
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
277 cm³
-
Injection Rate (g/s):
-
122 g/s
-
Injection Weight (g):
-
252 g
-
Screw Speed (rpm):
-
1 - 230 rpm
-
Screw diameter (mm):
-
42 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
470*420mm
-
Weight (KG):
-
4500 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
380 mm
-
Model Number:
-
HS-150
-
Brand Name:
-
Highshine
-
Power (kW):
-
18.2 kW
-
Highshine injection machine models:
-
110ton, 150ton, 180ton, 220ton,250ton,280ton,350ton, 420ton, 550ton,
-
injection machine design:
-
European type design
-
injection machine weight:
-
Highshine is heavier
-
Robot arm interface:
-
Euromap 12
-
gear pump:
-
Japan Sumitomo Pump
-
T slot:
-
standard
-
machine brand and color:
-
customized available
-
distributor agreement:
-
available
-
computer language:
-
English/Spanish/French or customized
-
spare parts:
-
available
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
470mm
-
Distance between Tie Bars(Height)(mm):
-
420mm
-
Mold Height(mm):
-
160 - 500 mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
277 cm³
-
Injection Rate (g/s):
-
122 g/s
-
Injection Weight (g):
-
252 g
-
Screw Speed (rpm):
-
1 - 230 rpm
-
Screw diameter (mm):
-
42 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
470*420mm
-
Weight (KG):
-
4500 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
380 mm
-
Model Number:
-
HS-150
-
Brand Name:
-
Highshine
-
Power (kW):
-
18.2 kW
-
Highshine injection machine models:
-
110ton, 150ton, 180ton, 220ton,250ton,280ton,350ton, 420ton, 550ton,
-
injection machine design:
-
European type design
-
injection machine weight:
-
Highshine is heavier
-
Robot arm interface:
-
Euromap 12
-
gear pump:
-
Japan Sumitomo Pump
-
T slot:
-
standard
-
machine brand and color:
-
customized available
-
distributor agreement:
-
available
-
computer language:
-
English/Spanish/French or customized
-
spare parts:
-
available

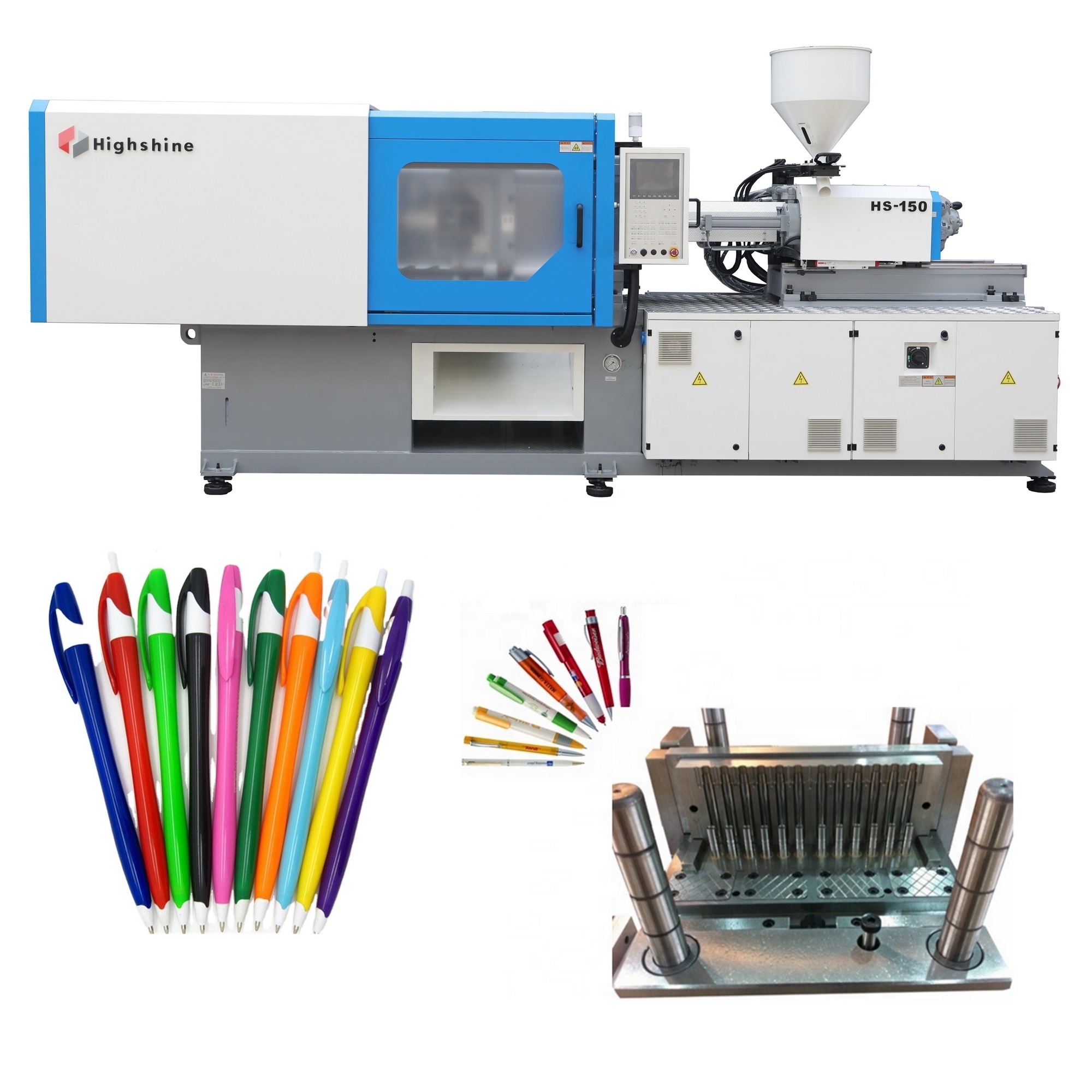

mesin pembuat pulpen Plastic ball pen injection molding machine/automatic ball pen making machine Highshine HS-150
HS-150 170 ton 150 TON 180 TON Highshine Pet PVC Cap Ball Pen Phone Case Making Moulding Plastic Injection Molding Machine
Plastic injection molding machine make plastic color marker pen ball pen low price
Highshine HS-150 Ball Pen Making Injection Molding Machine 150T Servo Injection Moulding Machine
Highshine servo motor injection molding machine 110ton 150ton 180ton 220ton 250ton 280ton 350ton 420ton 550ton 650ton 750ton 900ton 1200ton available or other customzied models
Wiki Wong
Wechat number: pewash
Whatsapp/Mobile Number: +8613738082939
280ton servo injection molding machine HS-280 Highshine
HS-280: https://youtu.be/_e2T627E0Uc
250ton servo motor injection molding machine Highshine
HS-250: https://youtu.be/qzwomN9SM1k
250ton servo injection molding machine HS-250 Highshine
https://youtu.be/ogs8AnEf9Sc
350ton servo motor injection molding machine Highshine
HS-350: https://youtu.be/jG7zNZNxbnY
110ton servo motor injection molding machine Highshine
HS-110: https://youtu.be/KxJ3cHPmOqU
HS-110 110ton servo injection molding machine
https://youtu.be/8VeBSYssEdk
150ton servo motor injection molding machine Highshine
HS-150: https://youtu.be/lH9SgQl0N1w
150ton servo injection molding machine HS-150 testing in factory
https://youtu.be/mnjFusmP48E
420ton servo motor injection molding machine Highshine
HS-420: https://youtu.be/z4ugXvNbfwA
Highshine injection molding machine frame
https://youtu.be/_w9Lkz9ZxDI
Highshine HS-S350 350ton high speed plastic injection molding machine
https://youtu.be/ToC5kOnJJKQ
Highshine HS-150 Ball Pen Making Injection Molding Machine 150T Servo Injection Moulding Machine
Injection Molding Machines Technician and Export Manager
Wiki Wong
Wechat Number: pewash
Mobile/Whatsapp Number: +8613738082939
Highshine is our new brand. All parts of machine use best quality same level with famous brand Haitian, Borche and Tederic and machine price is much cheaper. We hope the final users can enjoy our quality at a very best price. We welcome all customers to sign distributor with us.
Highshine 150Ton Servo Motor Injection Molding Machine model HS-180 main advantages
Price at least 10%-15% lower than famous brand like Haitian, Borche, Tederic injection molding machines, quality is same level with famous brand.
Beautiful design is comparable with Haitian, Borche, Tederic Injection molding machines
Machine weight is heavier than famous brand like Haitian, Borche, Tederic
Machine configuration is better than famous brand Haitian, Borche and Tederic.
More than 10years experience in injection molding machine design, production, export, installation, operation and service.
1. European type design, hydraulic system at the backside is covered for safety.
2. Under the same model number, Highshine has bigger tie bar distance;
3. Highshine has bigger power servo motor;
4. Highshine is heavier ;
5. Free bimetallic screw;
6. Free air blow;
7. Free Core Pull;
8. Free three color alarm light
9. Free ceramic heater
10. Free Euromap 12 robot interface
11. T Slot on platens is standard configuration
12. Pump: Eckerle, Germany/Sumitomo, Japan
Highshine 150Ton Servo Motor Injection Molding Machine Model HS-150 Main Technical Parameters
| Model HS-150 | ||||
| A | B | C | ||
| International Class | Unit | 539 | ||
| injection unit | ||||
| screw diameter | mm | 38 | 42 | 45 |
| screw L/D ratio | L/D | 24.3 | 22 | 20.5 |
| theoretical shot volume | cm3 | 227 | 277 | 318 |
| shot weight (PS) | g | 206 | 252 | 289 |
| injection rate | g/s | 100 | 122 | 140 |
| injection pressure | bar | 2377 | 1946 | 1695 |
| max. screw speed | rpm | 230 | ||
| Clamping Unit | ||||
| clamping force | KN | 1500 | ||
| opening stroke | mm | 380 | ||
| distance btw tie bars | mm | 470*420 | ||
| max mold height | mm | 500 | ||
| min. mold height | mm | 160 | ||
| ejector stroke | mm | 120 | ||
| ejector force | mm | 50 | ||
| Others | ||||
| max. pump pressure | Mpa | 16 | ||
| pump motor power | KW | 18.2 | ||
| heating capacity | KW | 12 | ||
| machine dimension | m | 4.66*1.27*1.65 | ||
| oil tank cubage | L | 250 | ||
| machine weight | KGS | 4500 | ||
Highshine Servo Motor Injection Molding Machines A, B and C three types of Screws are available.
| Model | B Screw Diameter | B Screw Shot Weight | Clamping Force | Space Btw Tie bars | Machine Weight | |
| 110ton | HS-110 | 35mm | 148g | 1100KN | 420*370mm | 3800KGS |
| 150ton | HS-150 | 42mm | 252g | 1500KN | 470*420mm | 4500KGS |
| 180ton | HS-180 | 45mm | 325g | 1800KN | 530*470mm | 5400KGS |
| 220ton | HS-220 | 50mm | 446g | 2200KN | 575*525mm | 7200KGS |
| 250ton | HS-250 | 55mm | 518g | 2500KN | 575*525mm | 7300KGS |
| 280ton | HS-280 | 60mm | 721g | 2800KN | 630*580mm | 9000KGS |
| 350ton | HS-350 | 70mm | 1225g | 3500KN | 730*680mm | 12700KGS |
| 420ton | HS-420 | 75mm | 1508g | 4200KN | 780*730mm | 16800KGS |
| 550ton | HS-550 | 85mm | 2168g | 5500KN | 880*830mm | 21600KGS |
| 650ton | HS-650 | 95mm | 2774g | 6500KN | 925*875mm | 32000KGS |
| 750ton | HS-750 | 95mm | 2966g | 7500KN | 980*950mm | 42000KGS |
| 900ton | HS-900 | 100mm | 3574g | 9000KN | 1125*1085mm | 50000KGS |
| 1200ton | HS-1200 | 110mm | 4805g | 12000KN | 1180*1100mm | 55000KGS |
150Ton Highshine Servo Motor Injection Molding Machine Main Parts Brand
| Electrical Parts | ||
| Item | Brand | Origin |
| servo controller | Delta | Taiwan |
| servo motor | Yunsheng | Zhongyi |
| PLC | Techmation | Taiwan |
| transducer | Opkon | Turkey |
| AC contactor | Schneider | France |
| limit switch | Schneider | France |
| air switch | Schneider | France |
| Hydraulic Components | ||
| hydraulic motor | Dandun | Italy |
| gear pump | Eckerle/Sumitomo | Germany/Japan |
| direction valve | Yuken/Tokyo Keiki | Japan |
| seal elements | Hallite | UK |
| pressure gauge | Skon | Taiwan |
| lubrication | Herg/Runzhou | Japan |
| Mechanical Components | ||
| China Standard | Germany Standard | |
| casting steel | QT500-7 | GGG-50 |
| tie bar | 40 Cr | 41Cr4 |
| pin shaft | 38crMoAL | 34CrALMo5 |
| screw barrel | 38crMoAL | 34CrALMo5 |
| rings | SKD61 | DINL.2344 |
HS-110 and HS-180: Eckerle Pump, Other models: Sumitomo Pump
