FN7 Series 3 phase 11kv 12kv 24kv High Voltage Load Break Switch IBS with fuse

Product Description

12kv/24kv Fn7 Series Dr Ac High Voltage Load Break Switch/lbs

FN7 Series 3 phase 11kv 12kv 24kv High Voltage Load Break Switch IBS with fuse

1. Environmental Conditions

Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40℃ ~ +45℃
Relative Humidity: Daily mean ≤95%, monthly mean ≤ 90%
No conductivity dust.
No insulation object with devastating metal and corrosive gas.
No violent vibration and striking.
No explosive danger and fire.

2. Technical Data

Load Switch:

Type	Rated voltage (KV)	Max working voltage (KV)	Rated current (A)	Machine stabling current (A)	Heat-stabling current (A)
FN7-12	12	12.7	400 630	25	10/2

Load Switch with Fuse:

Type	Rated voltage (KV)	Rated current (A)	Max breaking current (KV)	Max cut-off capacity (mva)	Current peak when cutting off limit short-circuit (KA)
RN3-3	3	10-50	40	200	24.5
		75-100			24.5
		200			36
RN3-6	6	10-50	20	200	14
		75			14
		100			19
		200			25
RN3-12	12		12	200
		10-50V			8.6
		75			8.6
		100-50			15.5

3. Application

FN7-12DR series AC high voltage load switch is a kind of new gas-type indoor high voltage load switch, applied to AC 50Hz and rated voltage 10KV for three-phase AC power system. It is used as the breaking load current and closing short-circuit current. Following part are some parameters about environment. The max ambient air temperature is 40 ℃. The mix ambient air temperature is 10 ℃for the general area and -25 ℃ for the alpine region. The daily average relative humidity is less than 95% in area of altitude less than 2000m and the month average relative humidity is less than 90%. The ambient air should not be obviously polluted by corrosive or flammable gases and water vapor. No recurrent severe vibration.

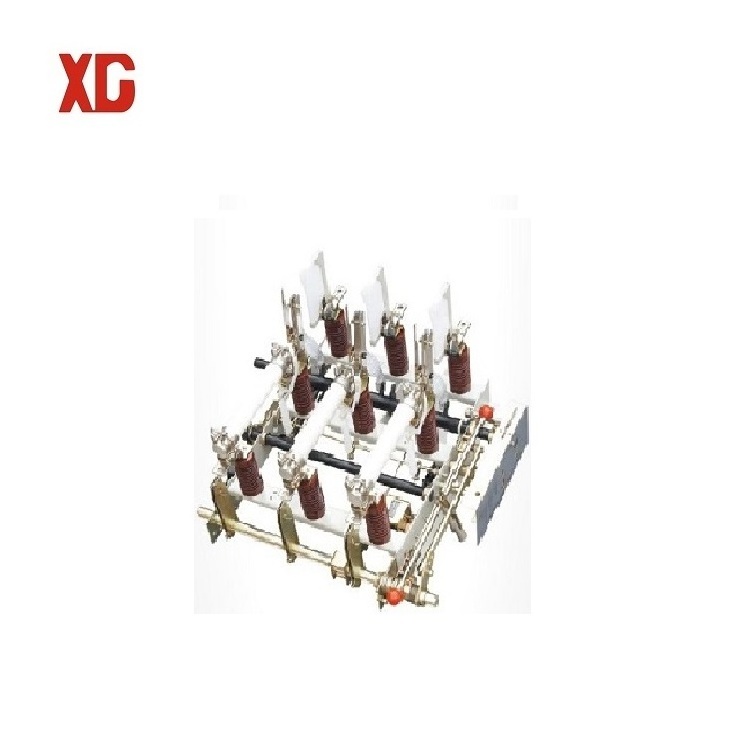

4. Appearance
