Quick Details
-
Brand Name:
-
RUNTX
-
Fork Length:
-
1150MM
-
Fork Width:
-
160MM
-
Type:
-
Electric Pallet Truck
-
Product Type:
-
Warehouse forklift
-
Color:
-
Red,Green
-
Feature:
-
Hydraulic Systems, Low Fuel Consumption, High Efficiency,Low Noise
-
Power form:
-
Hand
-
Lifting height:
-
200 mm
-
Load Center:
-
500mm
-
Weight:
-
192kg
-
Tire:
-
Polyurethane Solid
-
Loading Capacity:
-
1500kg
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Germany, UAE
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CQC, CE, SIQ, COC, TUV
-
Marketing Type:
-
New Product 2020
Quick Details
-
Min. Lifting Height:
-
200MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
RUNTX
-
Fork Length:
-
1150MM
-
Fork Width:
-
160MM
-
Type:
-
Electric Pallet Truck
-
Product Type:
-
Warehouse forklift
-
Color:
-
Red,Green
-
Feature:
-
Hydraulic Systems, Low Fuel Consumption, High Efficiency,Low Noise
-
Power form:
-
Hand
-
Lifting height:
-
200 mm
-
Load Center:
-
500mm
-
Weight:
-
192kg
-
Tire:
-
Polyurethane Solid
-
Loading Capacity:
-
1500kg
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Germany, UAE
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CQC, CE, SIQ, COC, TUV
-
Marketing Type:
-
New Product 2020
Products Description

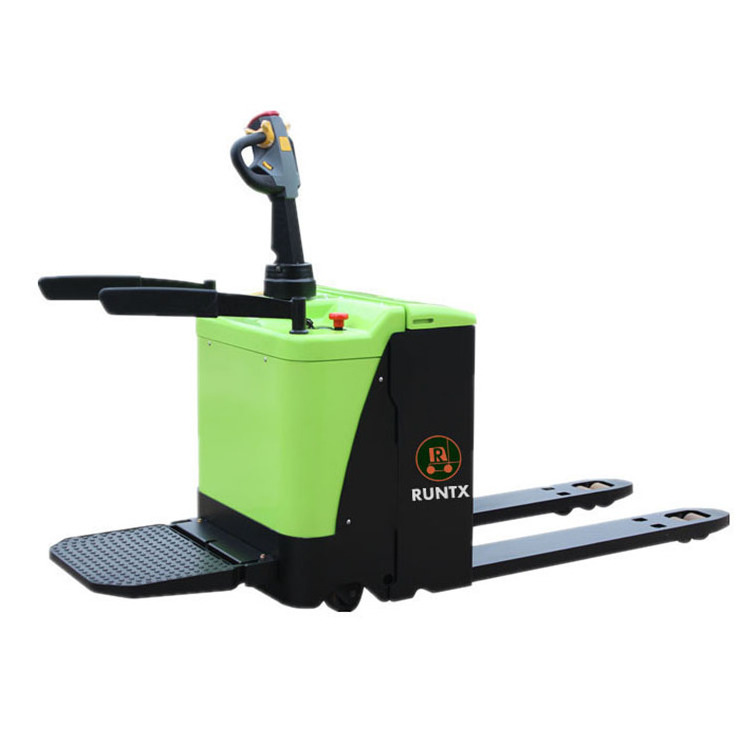

Mini Electric Forklift 2.0 ton Pallet Truck Electric Pallet Truck For Sale
|
Operation Type
|
Electric Pallet Truck(Standing Type)
|
|
|
|
|||
|
Model No.
|
Unit
|
CBD20
|
CBD25
|
CBD30
|
|||
|
Power Type
|
|
Full Electric
|
|
|
|||
|
Load capacity
|
kg
|
2000
|
2500
|
3000
|
|||
|
Load center
|
C(mm)
|
600
|
600
|
600
|
|||
|
Max lifting height
|
H(mm)
|
200
|
200
|
200
|
|||
|
Wheel Type
|
|
Polyurethance solid tire
|
|
|
|||
|
Fork Size
|
mm
|
1200*175
|
1200*175
|
1200*175
|
|||
|
Fork Spread
|
mm
|
685/540
|
685/540
|
685/540
|
|||
|
Fork Clearance frim the Ground
|
H1(mm）
|
85
|
85
|
85
|
|||
|
Overall length pedal closed
|
L(mm)
|
1918
|
1918
|
1918
|
|||
|
Overall Width
|
S(mm)
|
780
|
780
|
780
|
|||
|
Turning radius
|
BWa(mm)
|
1760
|
1760
|
1760
|
|||
|
The Distance from wheel front to fork end
|
mm
|
180
|
180
|
180
|
|||
|
Right-angled aisle width 1000*1200 pallet,Placed along the fork,Cleadeance 200
|
|
2490
|
|
|
|||
|
Right-angled aisle width 800*1200 pallet,Placed along the fork,Cleadeance 200
|
|
2398
|
|
|
|||
|
Max.walking speed (Load/unload)
|
km/h
|
4-5
|
4-5
|
4-5
|
|||
|
Grade ability (Load/unload)
|
%
|
8/10
|
8/10
|
8/10
|
|||
|
Totel weight
|
kg
|
715
|
715
|
715
|
|||
|
Drive Wheel
|
mm
|
230*75
|
230*75
|
230*75
|
|||
|
Wheel Front
|
mm
|
80 x 80
|
80x 80
|
80x 80
|
|||
|
Balance Wheel
|
mm
|
125x50
|
125x50
|
125x50
|
|||
|
Driving motor
|
kw
|
1.5
|
1.5
|
1.5
|
|||
|
Lifting motor
|
kw
|
0.8
|
0.8
|
0.8
|
|||
|
Battery capacity
|
V/ah
|
24/210
|
24/210
|
24/210
|
|||
|
Charge
|
V/Ah
|
24/30
|
24/30
|
24/30
|
|||
|
Braking
|
|
Electronmagnetic
|
Electronmagnetic
|
Electronmagnetic
|
|||
|
Drive Controlling Type
|
|
AC
|
|
|
|||
|
Walking Adjustable Type
|
|
Holzer type acceletator
|
|
|
|||
Details
Test before delivery
After the assembly is completed, our engineers will conduct test operations to ensure that our equipment meets the standards and is perfect
