Quick Details
-
Power:
-
15-25KW
-
Dimension(L*W*H):
-
2300*2000*2200mm
-
Weight:
-
400 KG
-
Material:
-
Stainless Steel 304
-
Function:
-
Brewing Beer Brewing Equipment
-
Insulation:
-
Polyurethane/rockwool 80mm
-
Control system:
-
PIC Control
-
Thickness:
-
2-3mm / Inside:3.0mm Outside:2mm
-
Keywords:
-
Brewpub Beer Equipment
-
Cooling way:
-
Dimple Plate Cooling
-
Product Name:
-
1000L Turnkey Beer Brewing System Bar Making Beer Equipment
-
Heating method:
-
Electrical Steam Gas Heating
-
Key words:
-
Brewhouse 1000l
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CASSMAN
-
Voltage:
-
220,380, customized
-
Power:
-
15-25KW
-
Dimension(L*W*H):
-
2300*2000*2200mm
-
Weight:
-
400 KG
-
Material:
-
Stainless Steel 304
-
Function:
-
Brewing Beer Brewing Equipment
-
Insulation:
-
Polyurethane/rockwool 80mm
-
Control system:
-
PIC Control
-
Thickness:
-
2-3mm / Inside:3.0mm Outside:2mm
-
Keywords:
-
Brewpub Beer Equipment
-
Cooling way:
-
Dimple Plate Cooling
-
Product Name:
-
1000L Turnkey Beer Brewing System Bar Making Beer Equipment
-
Heating method:
-
Electrical Steam Gas Heating
-
Key words:
-
Brewhouse 1000l

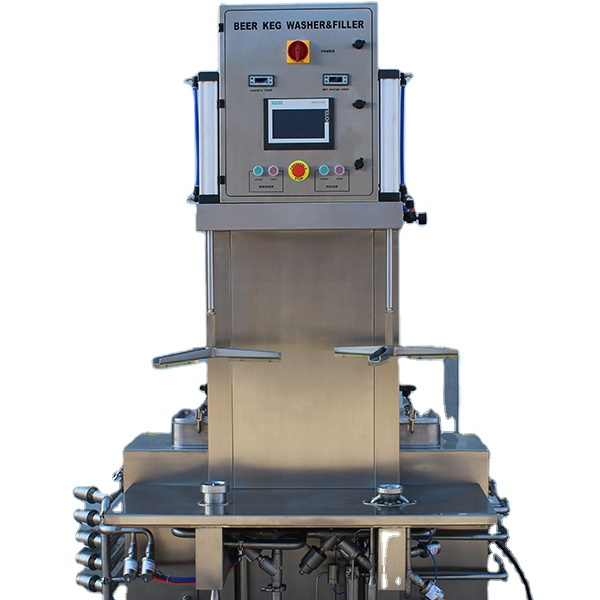

Beer double head keg filling machine isobaric filling machine semi-automatic kegging system
Keg Washing machine/ Keg filling machine
Automatic /semi-automatic operation system
Kegs volume: 20L,30L,50L, 1/2, 1/4, 1/6
Keg Spear: A/D/S/G/M/H
Capacity: 30~100 kegs/hour
Electricity supply: Three-phase, customized
Power: 3/18kW
|
Milling System |
Malt Miller |
300 kg/h |
1 pc |
|
Brewhouse system |
Mash Tun / Lauter Tank |
Volume is 1000L, with false bottom, grant, raker with motor |
1 pc |
|
Kettle / Whirlpool Tank |
Volume is 1000L, electric heating |
1 pc |
|
|
HLT Water Tank |
Volume is 2000L, electric heating |
1 pc |
|
|
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines |
|||
|
Fermentation system |
Fermenters |
Volume is 1000L or 2000L (double batches) |
6 pcs |
|
BBT (option) |
Volume is 1000L or 2000L (double batches) |
2 pcs |
|
|
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve |
|||
|
Cooling system |
Glycol tank |
Volume 3000L or 6000L |
1 pc |
|
Cold water tank (option) |
cooled by glycol tank |
1 pc |
|
|
Chiller |
5HP, Copeland |
1 pc |
|
|
Cleaning system |
CIP |
100L two tanks, heated by electric, with pump and trolley |
1 pc |
|
Controlling system |
Control cabinet |
PLC touch screen or PID controller |
1 pc |
Related Products
Warranty:
Beer equipment model selection:
1, Based on years of experience, Cassman can provide standard models of beer brewing equipment. We have mature experience in brewing technology and equipment design.
2, Cassman can provide custom-made service as per customer's requirement. including customize brewhouse system, fermentation tank, brite beer tank, coffee equipment, whiskey distillation equipment, stainless steel tank, etc.
Brewery design:
Cassman can help to design layout for newly built brewery, and we will supply P&ID drawings, electrical connection diagrams,flow chart, tank drawings, etc. , 3D drawings are also available if needs.
Installation:
Cassman has 6 to 8 experienced technical engineers, we can provide on-site installation and debugging instruction as per customer's needs.
1, To ensure good after-sales service, we will appoint the same technical personnel to debug and load the equipment before delivery,
2, For single tank, if on-site installation service is unnecassary, Cassman will provide equipment drawings and installation guides so that customers can install by themselves.
1:All material are SUS 304 or SUS 316.
2:Cassman company equipped with large-scale automatic tools such as laser cutting machines, automatic welding machines, automatic polishing machines, and inspection rooms, ensuring flawless processing details of the equipment.
3:All equipment is tested and debugged before shipment, ensuring that a complete set of perfect solutions arrive at the customer's hands.
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
Material certification of the SUS 304, 316.
