Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TY
-
Voltage:
-
380V50HZ3P or as the customer's requirement
-
Dimension(L*W*H):
-
4500*1400*1300mm
-
Weight:
-
3500 kg
-
Feeding width:
-
Accord customer's profile drawings
-
Marketing Type:
-
New Product 2021
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
45# Steel Outer Diameter:70mm
-
Frame:
-
350H Steel
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Roller stations:
-
12Stations
-
Control system:
-
PLC(detla) System
-
Color:
-
Customised
-
MAIN motor power:
-
5.5 Kw
-
After Warranty Service:
-
Video Technical
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
18-25m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TY
-
Voltage:
-
380V50HZ3P or as the customer's requirement
-
Dimension(L*W*H):
-
4500*1400*1300mm
-
Weight:
-
3500 kg
-
Feeding width:
-
Accord customer's profile drawings
-
Marketing Type:
-
New Product 2021
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
45# Steel Outer Diameter:70mm
-
Frame:
-
350H Steel
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Roller stations:
-
12Stations
-
Control system:
-
PLC(detla) System
-
Color:
-
Customised
-
MAIN motor power:
-
5.5 Kw
-
After Warranty Service:
-
Video Technical

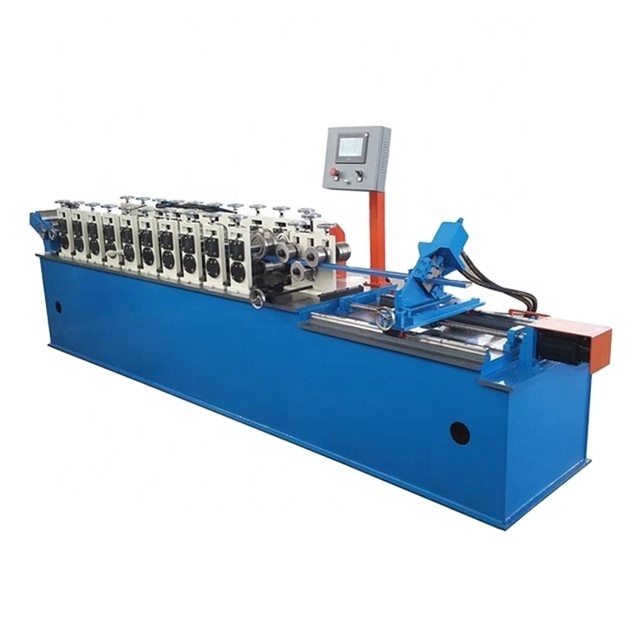

Galvanized steel metal drywall studs and track machine
Roll Forming Machine Process
Uncoiling --- Material Feeding --- Roll Forming --- Step Making --- Automatic Cutting --- Products Receiving
Uncoiling --- Material Feeding --- Roll Forming --- Step Making --- Automatic Cutting --- Products Receiving
Omega profile roll forming machine
C stud (CD) roll forming machine
Angle bead roll forming machine
C channel 3 size in 1 roll forming machine
Machine parameters
|
NO.
|
Item
|
Specification
|
|
Material |
Raw material
|
Galvanized steel
|
|
|
Thickness
|
0.3-0.8 mm
|
|
Machine |
Roller station
|
10
|
|
|
Shaft diameter
|
55 mm
|
|
|
Solid shaft material
|
High grade 45# steel with Cr12 mov coated,
quenching & tempering & treatment |
|
|
Roller material hardness 30-40 HRC
|
Cr12
|
|
|
Machine size
|
About 4.2*0.8*1 m
|
|
|
Machine weight
|
About 1.5 tons
|
|
|
Machine color
|
As customer need
|
|
|
Working speed
|
30-50 m/min
|
|
Cutter |
Hardness
|
50-65 HRC
|
|
|
Cutting tolerance
|
± 1mm
|
|
|
Material
|
Cr12
|
|
|
Operate
|
Hydraulic cutting
|
|
Power |
Driving way
|
Chain 1 inch
|
|
|
Main motor
|
4 KW
|
|
|
Pump motor for cutter
|
3 KW
|
|
|
Voltage
|
380V/50HZ, 3P or Customized as customer' request
|
|
Control system |
PLC brand
|
Delta made in Taiwan
|
|
|
Screen
|
Touchable screen
|
|
|
Language
|
Chinese and English or add customer need language
|
|
Decoiler |
Operation
|
Manual
|
|
|
Weight capacity
|
3 Tons
|
|
|
Price
|
Free as gift
|
Details Images
Machine production process
