Quick Details
-
Brand Name:
-
Pioneer
-
Motor Power:
-
7.5Kw
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
13r/min
-
Water Supply Mode:
-
Auto
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Auto
-
Outline Dimension:
-
5230*2300*5450mm
-
Weight (KG):
-
3100 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
General steel plate, High chromium manganese alloy steel
-
Colour:
-
As per request
-
Max. aggregate size:
-
70mm
-
Package:
-
Container
-
Warranty time:
-
More than 12 Months
-
Lifting Motor Power:
-
5.5kW
-
Certificate:
-
CE & ISO9001:2008
-
Weight:
-
3100Kg
Quick Details
-
Mixing Power:
-
7.5Kw
-
Productivity:
-
18-25m3/h, 18-25m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pioneer
-
Motor Power:
-
7.5Kw
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
13r/min
-
Water Supply Mode:
-
Auto
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Auto
-
Outline Dimension:
-
5230*2300*5450mm
-
Weight (KG):
-
3100 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
General steel plate, High chromium manganese alloy steel
-
Colour:
-
As per request
-
Max. aggregate size:
-
70mm
-
Package:
-
Container
-
Warranty time:
-
More than 12 Months
-
Lifting Motor Power:
-
5.5kW
-
Certificate:
-
CE & ISO9001:2008
-
Weight:
-
3100Kg
Product Description

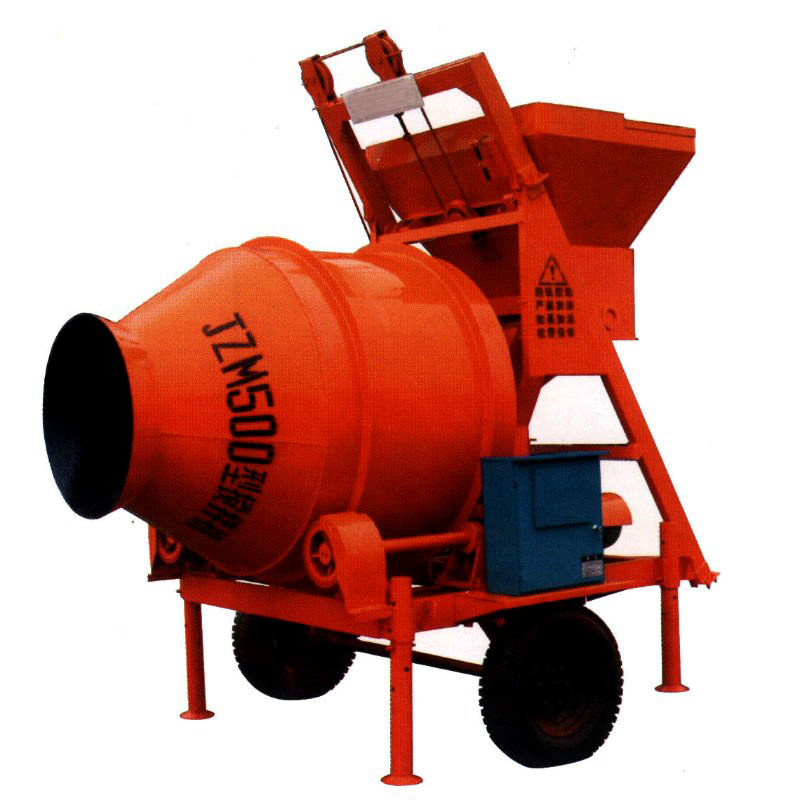

Our JZM seriesis Concrete Mixer is a mini mobile concrete mixer, also a Self-loading Concrete Mix Machine, Gear type Concrete Mixer. It is also a type of double conic reversal drum concrete mixer, positive turn for mixing and reverse turn for discharging automatically. Thanks to its simple structure and lightweight, it is easy to clean and move. It is ideal for the relatively small construction site or homeowners.
|
Model
|
JZM250
|
JZM350
|
JZM500
|
JZM750
|
|
Delivery Capacity
|
250L
|
350L
|
500L
|
750L
|
|
Trough-put Capacty
|
350L
|
560L
|
800L
|
1200L
|
|
Produdivity
|
7-10m3/h
|
10-13m3/h
|
18-20m3/h
|
30-35m3/h
|
|
Mising motor power
|
4.5kw
|
5.5kw
|
5.5kw*2
|
11kw
|
|
Lifting motor power
|
4kw
|
4.5kw
|
5.5kw
|
7.5kw
|
|
Water pump power
|
0.55kw
|
0.55kw
|
0.75-1.1kw
|
0.75kw
|
|
Accurancy of water supply
|
error<=2%
|
error<=2%
|
error<=2%
|
error<=2%
|
|
Drum rotating speed
|
17-18r/min
|
14r/min
|
14r/min
|
12.26r/min
|
|
Maximum aggregate size
|
60mm
|
60mm
|
60-80mm
|
80mm
|
|
Max trailing speed
|
20km/h
|
20km/h
|
20km/h
|
20km/h
|
|
Overall dimensional(L"W"H)
|
2260*1990*2750mm
|
3800*2050*2690mm
|
4230*2450*3570mm
|
transport status:3680*3065*3565mm
|
|
|
|
|
|
work status:5650*2065*3535mm
|
|
Overall weight
|
1500kg
|
1970kg
|
2600kg
|
4000KG
|
Product features:
1. Main material cylinder lengthening, use heavy steel. Ensure pumping capacity.
2. Wear plate adopts wear resistant alloy material, longer service life.
3. Adopts advanced electrics system and good electrics, ensure the machine working well
4. Hopper height adjustable up down,small concrete truck can directly poured into the hopper.
5. Hopper height adjustable up down,small concrete truck can directly poured into the hopper.
