Quick Details
-
Voltage:
-
380V or as request
-
Dimension(L*W*H):
-
1370*830*630 mm
-
Year:
-
2022
-
Power (kW):
-
10.5 kW
-
Weight (KG):
-
500 KG
-
Products Name:
-
Conveyor Belt Hot Joint Vulcanizer
-
Beam Material:
-
Aluminum Alloy
-
Application:
-
Rubber Conveyor Belt
-
Belt Width:
-
650 mm
-
Vulcanizing Temperature:
-
145℃
-

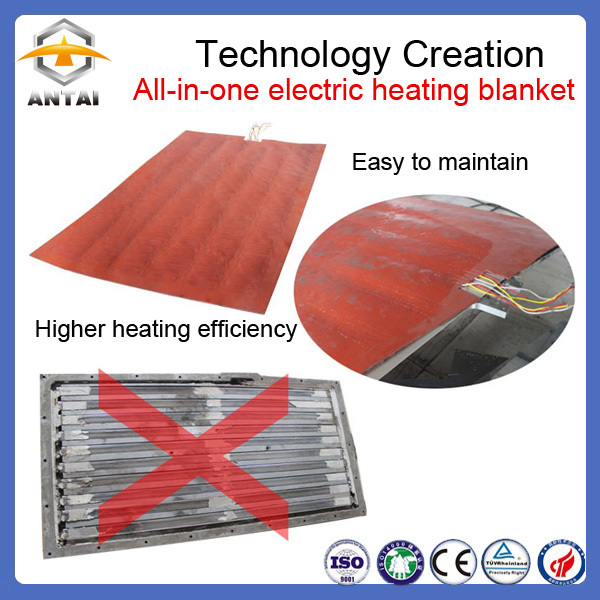

Heating platen:
-
Silicone element blanket
-
Curing time:
-
30 mins
-
Cooling system:
-
Water cooled system
-
Cooling time:
-
20 mins
-
Max Operating Pressure:
-
300 PSI
-
Marketing Type:
-
New Product 2022
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANTAI
-
Core Components:
-

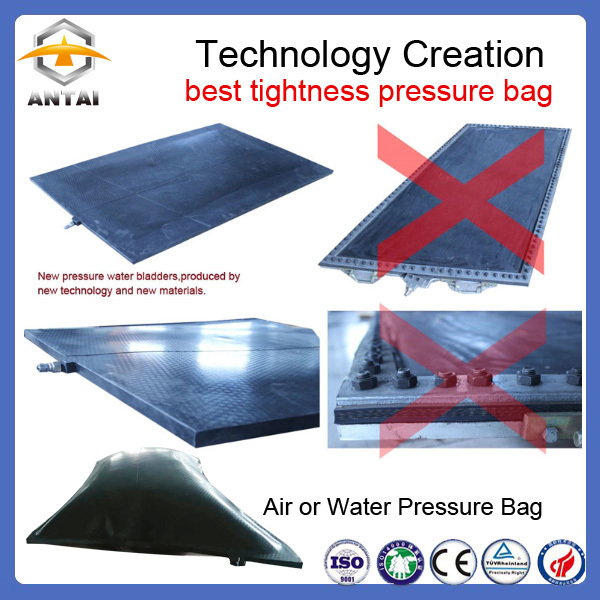

Heating Platen, Silicone Heating Blanket, Water Pressure Bag
-
Voltage:
-
380V or as request
-
Dimension(L*W*H):
-
1370*830*630 mm
-
Year:
-
2022
-
Power (kW):
-
10.5 kW
-
Weight (KG):
-
500 KG
-
Products Name:
-
Conveyor Belt Hot Joint Vulcanizer
-
Beam Material:
-
Aluminum Alloy
-
Application:
-
Rubber Conveyor Belt
-
Belt Width:
-
650 mm
-
Vulcanizing Temperature:
-
145℃
-
Heating platen:
-
Silicone element blanket
-
Curing time:
-
30 mins
-
Cooling system:
-
Water cooled system
-
Cooling time:
-
20 mins
-
Max Operating Pressure:
-
300 PSI
-
Marketing Type:
-
New Product 2022

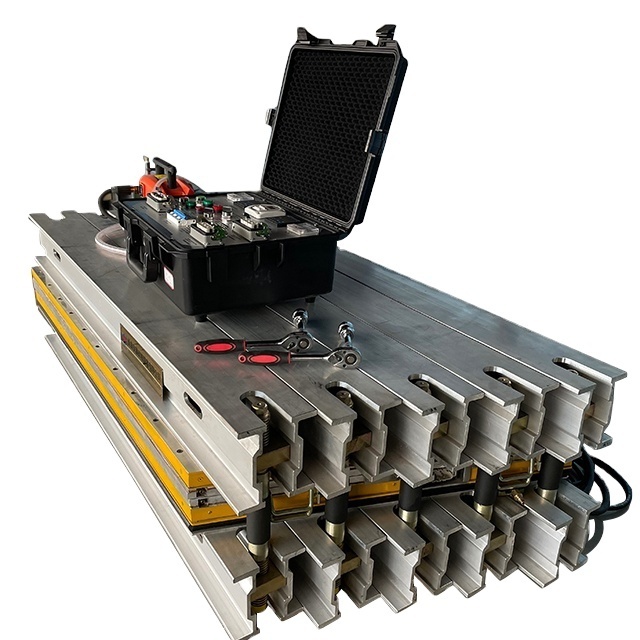

Conveyor Belt Vulcanizer Press
NO.1 INTRODUCTION OF CONVEYOR BELT VULCANIZER
Conveyor belt vulcanizer, also called conveyor belt vulcanizing press or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).
NO.2 TECHNICAL PARAMETERS
1. Vulcanization pressure 1.0-2.0 MPa;
2. Vulcanization temperature 145°C;
3. Difference in surface temperature of vulcanized plate ± 2°C;
4. Heating up time ( at normal temperature to 145°C )<25 minutes;
5. Voltage 220V/ 380V/415V/440V/480V/550V/660V, 50/60HZ, 3PHASES;
6. Temperature adjustment range 0 to 199°C;
7. Timer adjustment range 0 to 99 minutes;
|
Model |
Belt width (mm) |
Power KW |
Dimension (L×W×H)mm |
Weight KG |
|
SVP-800 |
800 |
11.2 |
1280×830×630 |
650 |
|
SVP -1000 |
1000 |
14.1 |
1480×830×630 |
700 |
|
SVP-1200 |
1200 |
16.5 |
1680×830×710 |
900 |
|
SVP-1400 |
1400 |
18.6 |
1930×830×760 |
1100 |
|
SVP-1600 |
1600 |
21.1 |
2140×830×800 |
1320 |
|
SVP -1800 |
1800 |
23.3 |
2300×830×850 |
1480 |
|
SVP -2000 |
2000 |
25.6 |
2600×830×950 |
1860 |
|
SVP -2200 |
2200 |
27.3 |
2830×830×980 |
1980 |
