Quick Details
-
Weight:
-
35
-
Brand Name:
-
XMBR
-
Place of Origin:
-
Fujian, China
-
Type:
-
Hydraulic Motors
-
piston hydraulic motor:
-
MS05
-
small motor:
-
MS motor
-
hydraulic motor:
-
stater motor
-
ms05 hydraulic motor:
-
piston hydraulic
Quick Details
-
Warranty:
-
1 Year
-
Motor Type:
-
Piston Motor
-
Displacement:
-
56cm³
-
Weight:
-
35
-
Brand Name:
-
XMBR
-
Place of Origin:
-
Fujian, China
-
Type:
-
Hydraulic Motors
-
piston hydraulic motor:
-
MS05
-
small motor:
-
MS motor
-
hydraulic motor:
-
stater motor
-
ms05 hydraulic motor:
-
piston hydraulic

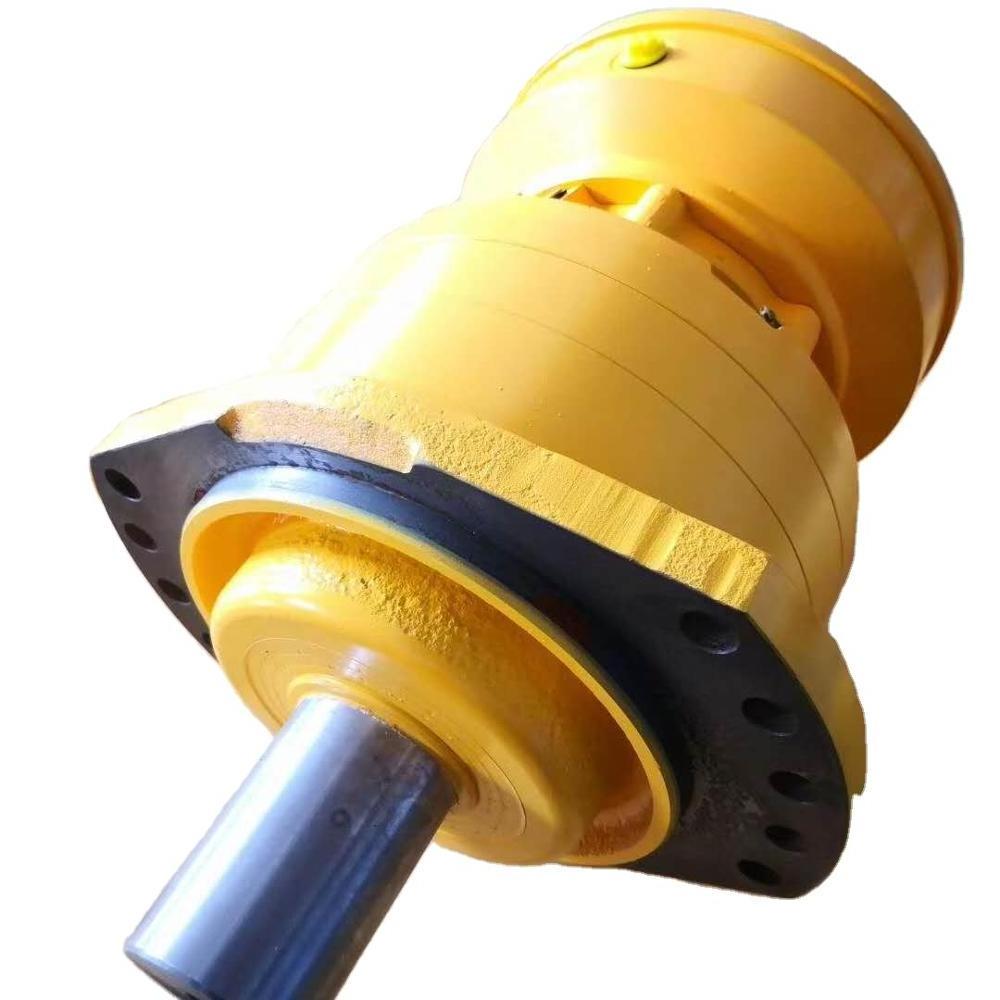

MS05 piston hydraulic motor, MS motor
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control,
|
Type Displacement |
MS05-8 |
MS05-9 |
MS05-0 |
MS05-1 |
MS05-2 |
|||||
|
Full/Semi |
Full/Semi |
Full/Semi |
Full/Semi |
Full/Semi |
||||||
|
Displacement(ml/r) |
376 |
188 |
|
|
468 |
234 |
514 |
257 |
560 |
280 |
|
Max power(kw) |
25 |
17 |
|
|
25 |
17 |
25 |
17 |
25 |
17 |
|
Pressure discrepancy 10MPa Torque (N.m) |
562 |
275 |
|
|
699 |
343 |
768 |
376 |
837 |
410 |
|
Rated torque(N.m) |
1405 |
|
1749 |
1921 |
2092 |
|||||
|
Rated pressure(MPa) |
25 |
|
25 |
25 |
25 |
|||||
|
Max pressure(MPa) |
40 |
|
40 |
35 |
35 |
|||||
|
Rated speed(r/min) |
90 |
|
90 |
85 |
80 |
|||||
|
Speed range(r/min) |
0-200 |
|
0-200 |
0-190 |
0-180 |
|||||
MS05 piston hydraulic motor, MS motor
1. Goods are packed with export standing standard.
2. Goods will be delivered on time.
3. Goods can arrive at the destination safely.
4.derivery time:within 30 days after the payment.
MS05 piston hydraulic motor, MS motor
We have strict quality control system:
1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
