Quick Details
-
Main Processor:
-
Hi3520D V300
-
Resolution:
-
1920x1080
-
Playback:
-
4CH Playback
-
Audio:
-
1 ch in/ 1 ch out
-
HDD:
-
1 SATA
-
Video Compression:
-
H.264 Standard Compression
-
Dimensions:
-
255x235x45mm
-
Weight:
-
2KG (without HDD)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Type:
-
1080P 5 in1 DVR
-
Video input:
-
4 Channels
-
Main Processor:
-
Hi3520D V300
-
Resolution:
-
1920x1080
-
Playback:
-
4CH Playback
-
Audio:
-
1 ch in/ 1 ch out
-
HDD:
-
1 SATA
-
Video Compression:
-
H.264 Standard Compression
-
Dimensions:
-
255x235x45mm
-
Weight:
-
2KG (without HDD)

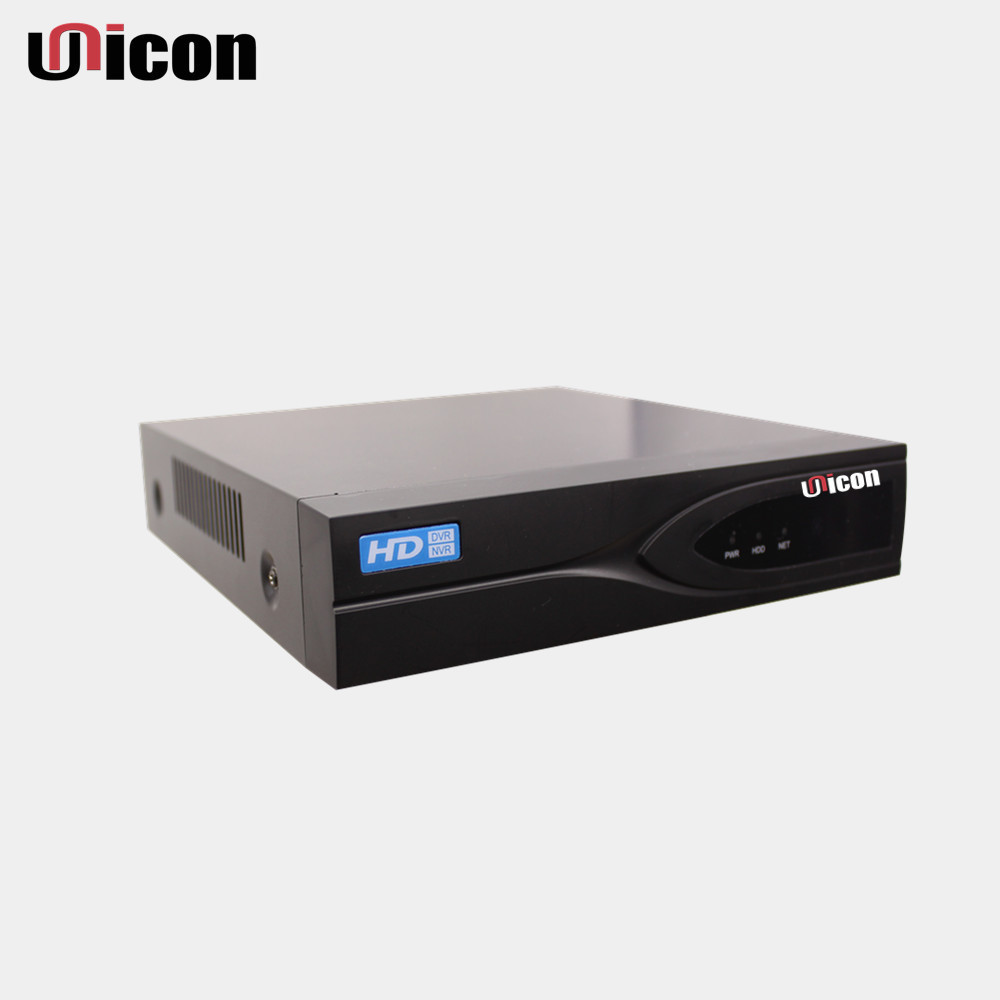

HD 1080P H.264 Hybrid CCTV Camera Network Recorder DVR
Key Features:
1. H.264 standard compression format with efficient processing and clear image.
2. Support 1080P/720P recording encoding.
3. Two high-speed USB2.0 interfaces, you can mix backup and mouse.
4. Support six operations at the same time, recording playback, network transmission,backup,mobile monitoring,PTZ control etc.
5.Support IE and client, remote parameter settings / convenient remote network access function without need to apply for any domain names, plug and play
6.Dedicated high-reliability file system for special monitoring
7.Simplified Chinese, English, Thai, Russian, French, Spanish etc. over twenty languages
A powerful mobile control and monitoring features to support Window Mobile, Symbian
Specification :
|
Master chip |
Hi3520D V300 |
|
|
Compression |
H.264 Standard Compression |
|
|
Operation |
Embedded Linux |
|
|
Image coding-control |
Image edit adjustable,both changeable and fix stream optional |
|
|
Dual stream |
Can be set up in each channel |
|
|
Monitor Image quality |
1080H (960 x 1080) |
|
|
Image dynamic detection |
Multiple detection areas in each channel |
|
|
Video frame rate |
1080H 15fps |
|
|
Image playback quality |
1080H Total:50fps(4ch) |
|
|
Video mode |
Support manual,automatic,dynamic monitoring,alarm trigger video mode |
|
|
Backup mode |
U disk,USB portable disk,USB burn,Network storage and backup |
|
|
Operate mode |
Mouse,Front Panel Control |
|
|
Login locally |
admin and password |
|
|
Save recording |
Local hard disk and network |
|
|
External Interface
|
Audio input |
RCA*1 |
|
Video output |
VGA*1, HDMI*1 |
|
|
Audio output |
RCA*1 |
|
|
Network interface |
10M/100M base-T Ethernet(RJ-45) |
|
|
USB connect port |
USB*2 |
|
|
RS485 |
RS485*1 |
|
|
Alarm input |
N/A |
|
|
Alarm output |
N/A |
|
|
Hard disk
|
Internal HDD |
1 SATA HDD Port |
|
|
Maximum Capacity |
Maximum 6TB Each SATA |
|
Cell phone monitoring |
Support Window Mobile,iphone ,ipad,Android |
|
|
Power |
12V/2A |
|
|
Operating Temperature |
-10~50 degree |
|
|
Operating humidity |
10%-90% |
|
Back end board connector :
Multi languages supported :
CMS with various intelligent settings :
IE Interface :
Mobile App "Vssmobile" interface :
Payment terms :
