Quick Details
-
Spindle Bore(mm):
-
48
-
Width of bed (mm):
-
260 mm
-
Spindle Motor Power(kW):
-
3.0
-
Max. Turned Length (mm):
-
200
-
Travel (X Axis)(mm):
-
260 mm
-
Travel (Z Axis)(mm):
-
240 mm
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.008
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1600x1000x1550mm
-
Brand Name:
-
Taian Yuzhuo
-
Model Number:
-
CK0640
-
Voltage:
-
3Phase 380V/ 220V/415V
-
Weight (KG):
-
850
-
Name:
-
CK0640 Small CNC Metal Lathe Machine
-
CNC or Not:
-
CNC
-
Control system:
-
GSK KND SIEMENS FANUC
-
Chuck:
-
Pneumation Collet / 3-jaw Chuck
-
Turret Type:
-
Gang-type tool post
-
Max. swing over bed:
-
250mm
-
Spindle bore:
-
48mm
-
Color:
-
Custom-made
-
Function:
-
Metal cutting
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
200
-
Max. Spindle Speed (r.p.m):
-
2500 r.p.m
-
Spindle Bore(mm):
-
48
-
Width of bed (mm):
-
260 mm
-
Spindle Motor Power(kW):
-
3.0
-
Max. Turned Length (mm):
-
200
-
Travel (X Axis)(mm):
-
260 mm
-
Travel (Z Axis)(mm):
-
240 mm
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.008
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1600x1000x1550mm
-
Brand Name:
-
Taian Yuzhuo
-
Model Number:
-
CK0640
-
Voltage:
-
3Phase 380V/ 220V/415V
-
Weight (KG):
-
850
-
Name:
-
CK0640 Small CNC Metal Lathe Machine
-
CNC or Not:
-
CNC
-
Control system:
-
GSK KND SIEMENS FANUC
-
Chuck:
-
Pneumation Collet / 3-jaw Chuck
-
Turret Type:
-
Gang-type tool post
-
Max. swing over bed:
-
250mm
-
Spindle bore:
-
48mm
-
Color:
-
Custom-made
-
Function:
-
Metal cutting
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Description

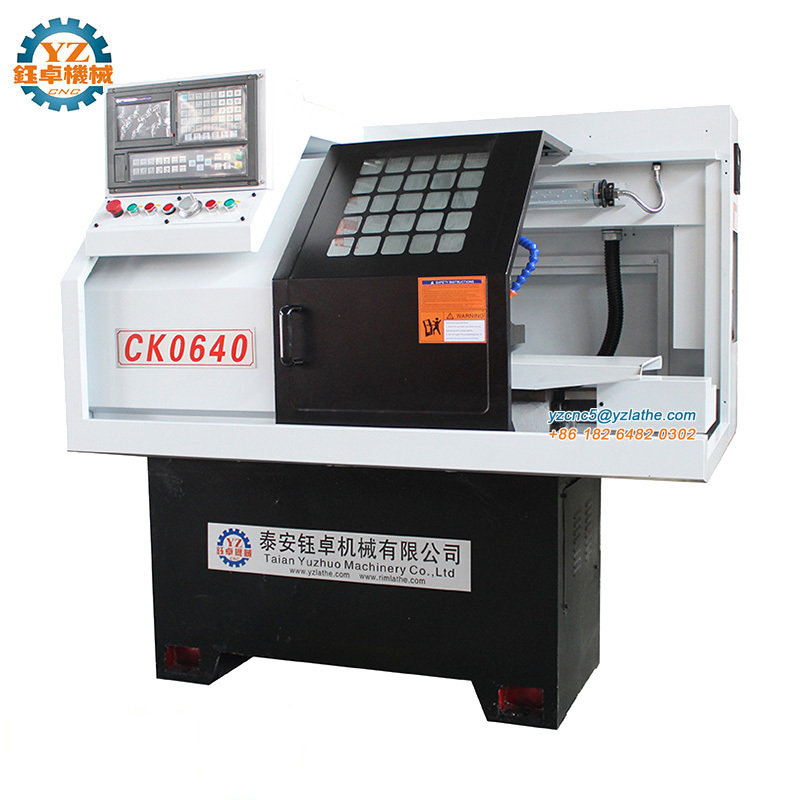

CK0640 Small CNC Metal Lathe Machine For Sale
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.
|
Model
|
|
CK0640
|
CK0660
|
CK0680
|
|
Drawn pipe diameter
|
mm
|
40
|
60
|
80
|
|
Max. swing dia. over cross slide
|
mm
|
100
|
100
|
100
|
|
Max. workpiece length
|
mm
|
Collet 200/
Chuck 120
|
Collet 200/
Chuck 120
|
Collet 200/
Chuck
120
|
|
Spindle bore
|
mm
|
48
|
70
|
90
|
|
Max. swing diameter over bed
|
mm
|
250
|
250
|
250
|
|
Lathe bed width
|
mm
|
260
|
260
|
260
|
|
X/Z max. stroke
|
mm
|
260/240
|
260/240
|
260/240
|
|
X/Z rapid feed
|
mm/min
|
4000/8000
|
4000/8000
|
4000/8000
|
|
Spindle speed range
|
rpm
|
150-2500
|
150-2500
|
150-2500
|
|
Main power
|
kw
|
3
|
3
|
3
|
|
Overall size
|
mm
|
1600x1000x1550
|
1600x1000x1550
|
1600x1000x1550
|
|
Overall weight
|
kg
|
850
|
950
|
1000
|
Standard configuration:
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
2) Pneumatic collet.
3) Gang type tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
Optional configuration:
1) CNC controller: Siemens/Fanuc/KND
2) Manual chuck, pneumatic or hydraulic chuck
3) Hydraulic tailstock, Pneumatic tailstock.
4) 4/6/8-station electric turret.
5) Automatic bar feeder, Chip conveyor.
6) Optional spinle bore: 120mm
2) Manual chuck, pneumatic or hydraulic chuck
3) Hydraulic tailstock, Pneumatic tailstock.
4) 4/6/8-station electric turret.
5) Automatic bar feeder, Chip conveyor.
6) Optional spinle bore: 120mm
