Quick Details
-
Motor's Power:
-
90W 220VAC / 80W 24VDC
-
Color:
-
Optional
-
Certificates & Warranty:
-
CE,ISO9000
-
Max Length Of Boom:
-
5m
-
Time For Up/Down:
-
1.8~6S
-
Environment Temperature:
-
-20°C-50°C
-
Protection Class:
-
IP55
-
Weight Without Boom And Support:
-
50kg
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Baisheng
-
Power Supply:
-
220VAC 50HZ/110VAC 60HZ
-
Motor's Power:
-
90W 220VAC / 80W 24VDC
-
Color:
-
Optional
-
Certificates & Warranty:
-
CE,ISO9000
-
Max Length Of Boom:
-
5m
-
Time For Up/Down:
-
1.8~6S
-
Environment Temperature:
-
-20°C-50°C
-
Protection Class:
-
IP55
-
Weight Without Boom And Support:
-
50kg
|

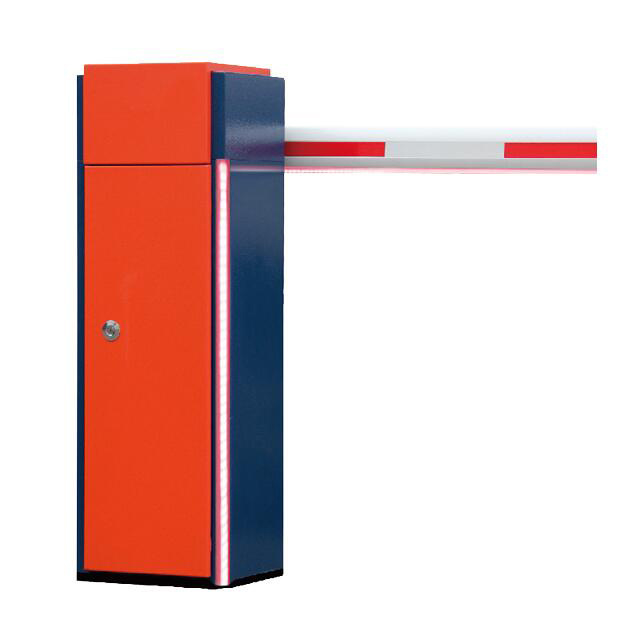

PRODUCT SPECIFICATION FOR BARRIER GATE BS-6306
|
|
|
|
Model NO.
|
BS-6306
|
|
|
Power Supply
|
220VAC 50Hz/110VAC 60Hz
|
|
|
Motor Power
|
90WAC/80WDC
|
|
|
Max. Boom Length
|
5m
|
|
|
Time for Open/Close
|
1.6s (for 1~2m), 4s (for 3~4m), 6s (for 5m)
|
|
|
Environmental Temperature
|
-20℃~50℃
|
|
|
Protection Level
|
IP55
|
|
|
Boom Color
|
Optional
|
|
|
Material of Barrier
|
Aluminium Alloy
|
|
|
Certification
|
ISO9001:2008 CE SGS
|
|
Model: (AC) Motor
Power supply: 220VAC 50HZ /
110VAC 60HZ
Motor's power: 90W 220VAC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20
o
C-50
o
C
Protection class: IP55
Model:(DC) Motor
Power supply: 220VAC 50HZ
/
110VAC 60HZ
Motor's power: 80W 24VDC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20
o
C-50
o
C
Protection class: IP55
Features
：
1.- The traffic barrier is widely used for the facilities of parking, traffic or toll system.
2.-Arms can be chosen from 3 meters to 6 meters.
3.-This type of barrier could match with direct boom( pole), fold boom Or fence boom..
4.-Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.
5.-All the process is soft without any noise and shaking.
6.-This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.
7.-Housing color: yellow,red ,blue,orange,white (optional)
8.-Boom arm direction can be chosen leftward to rightward.
9.-Auto warming up,suitable for cold environment.
10-Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.
mechanism:
2 series mechanism
BS-106, BS-206, BS-306,
BS-406, BS-606, BS-806,
BS-3306, BS- 6306, BS-6706
3 series mechanism
7 series mechanism
|
Number
|
Trouble
|
Cause
|
Shooting
|
|
1
|
Motor of Barrier does not work
|
1,No power supply
|
1,Check power supply
|
|
|
|
2,Break fuse
|
2,Change fuse
|
|
|
|
3,Motor is damaged
|
3,Change the motor
|
|
2
|
Barrier can open but can not close
|
1,Photocell is not connected properly
|
1,Connect the photocell
|
|
|
|
2,Photocell beam is block off
|
2,Clear out obstacle
|
|
|
|
3,Photocell is broken
|
3,Change a new device
|
|
3
|
Barrier can open (close) but can not close (open)
|
1,Position of limit switch is not correct
|
1,Adjust position
|
|
|
|
2,Limit switch is damaged
|
2,Change limit switch
|
|
4
|
Barrier can not locate accurately
|
1,Distance of limit switch is too large
|
1,Adjust position of limit switch
|
|
|
|
2,Limit switch is wrong
|
2,Change limit switch
|
|
|
|
3,Magnetic-stell’s position is wrong
|
3,Re-adjust the position
|
|
5
|
Release device of Barrier is doesn’t work
|
1,Operating handle is broken
|
1,Change the handle
|
|
|
|
2,Worm gears are jammed
|
2,Rotate the pinion
|
|
6
|
Push the “OPEN” button but the Barrier gate close
|
Whether “+MOTOR-” wires are connected wrong
|
Connect correctly according to wiring diagram
|
|
7
|
Motor of Barrier can work but boom can not work
|
Compression spring of clutch is dead
|
Change the spring
|
Delivery Details: 3~7 working days upon receipt of your deposit .
If you do not have forwarder,we can arrange shipping by express,air and sea
Full set contains: 1 barrier, 1 straight boom withe red rubber 5m, 1 boom support, mounting plate, 1 control unit with 2 remotes.
In order to protect the goods, pls order barrier in even number, 4,6,8pcs per wooden pallet.
(each pallet holds 8pcs at most)
