Quick Details
-
Warranty:
-
30 Years, 30 Years
-
Brand Name:
-
Longi
-
Model Number:
-

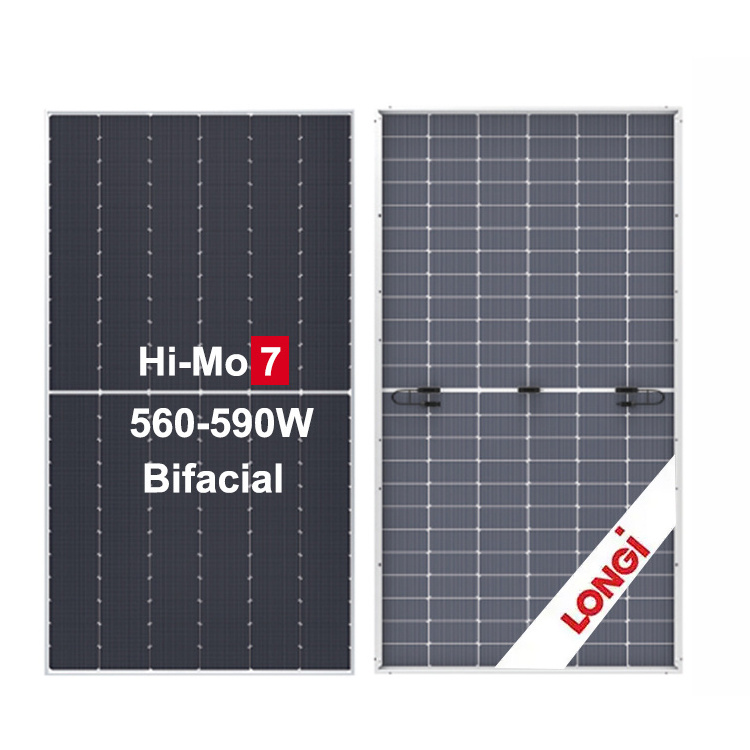

Hi-MO 7 LR5-72HGD 560-590M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278x1134x30mm
-
Product name:
-
Longi Solar Panel
-
Frame:
-
Anodized Aluminum Alloy Frame
-
Junction Box:
-
IP68, three diodes
-
Solar cell:
-
Monocrystalline
-
Weight:
-
31.8kg
-
Application:
-
Industrial, home
-
Output Cable:
-
4mm²+400, -200mm/±1400mm
-
Glas:
-
Dual glass, 2.0+2.0mm semi-tempered glass
-
Power Tolerance:
-
0~+3%
-
Certificate:
-
TUV/CE/IEC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, Bifacial, Double-glass
-
Panel Efficiency:
-
22.8%
-
Warranty:
-
30 Years, 30 Years
-
Brand Name:
-
Longi
-
Model Number:
-
Hi-MO 7 LR5-72HGD 560-590M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278x1134x30mm
-
Product name:
-
Longi Solar Panel
-
Frame:
-
Anodized Aluminum Alloy Frame
-
Junction Box:
-
IP68, three diodes
-
Solar cell:
-
Monocrystalline
-
Weight:
-
31.8kg
-
Application:
-
Industrial, home
-
Output Cable:
-
4mm²+400, -200mm/±1400mm
-
Glas:
-
Dual glass, 2.0+2.0mm semi-tempered glass
-
Power Tolerance:
-
0~+3%
-
Certificate:
-
TUV/CE/IEC
Products Description
|
Electrical Charactenstics STC:AM1.5 1000W/m2 25°C
|
|
|
|
|
|
|
|
|||||||
|
Module Type
|
LR5-72HGD-560M
|
LR5-72HGD-565M
|
LR5-72HGD
-570M
|
LR5-72HGD-575M
|
LR5-72HGD-580M
|
LR5-72HGD-585M
|
LR5-72HGD-590M
|
|||||||
|
Maximum Powe (Pmax/W)
|
560
|
565
|
570
|
575
|
580
|
585
|
590
|
|||||||
|
Open Circuit Voltage (Voc/V)
|
50.99
|
51.09
|
51.19
|
51.30
|
51.41
|
51.52
|
51.63
|
|||||||
|
Short Circuit Current (lsc/A)
|
13.89
|
13.97
|
14.05
|
14.14
|
14.22
|
14.30
|
14.38
|
|||||||
|
Voltage at Maximum Power (Vmp/V)
|
42.82
|
42.91
|
43.00
|
43.11
|
43.22
|
43.33
|
43.44
|
|||||||
|
Current at Maximum Power (Imp/A)
|
13.08
|
13.17
|
13.26
|
13.34
|
13.42
|
13.51
|
13.59
|
|||||||
|
Module Efficiency(%}
|
21.7
|
21.9
|
22.1
|
22.3
|
22.5
|
22.6
|
22.8
|
|||||||
