Quick Details
-
Cooling Mode:
-
Water Cooling / Air Cooling
-
Control Software:
-
Oscar Soft / Golden Orange
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Oscar
-
Marking Head Brand:
-
Sino-Galvo
-
Weight (KG):
-
67 KG
-
Marking Area:
-
70mm*70mm,,90*90mm,110*110mm,150*150mm
-
Core Components:
-
Laser Source
-
Feature:
-
Water Cooling / Air Cooling
-
Product name:
-

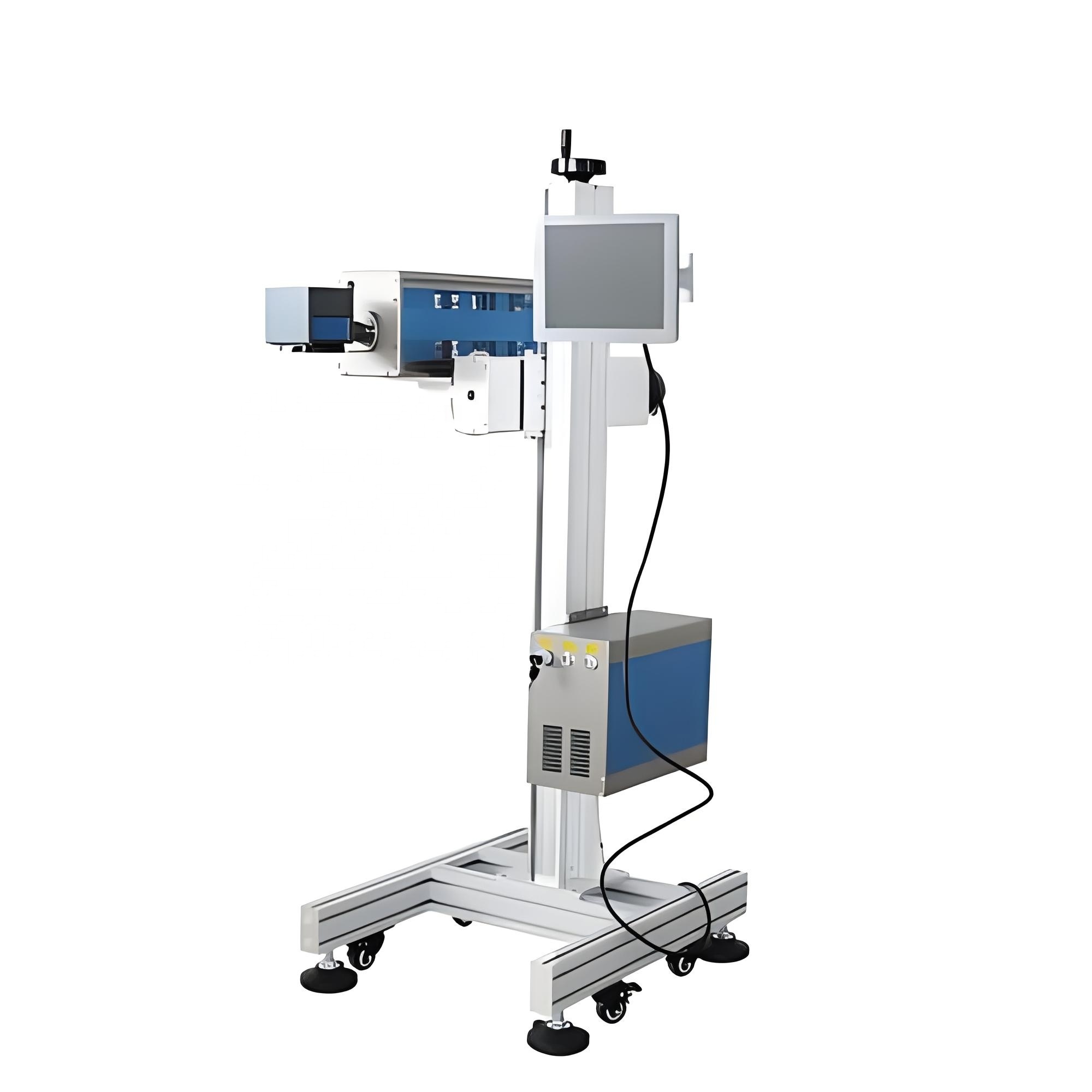

Assembly Line CO2 Laser Marking Machine
-
Laser Output Power:
-
30W/60W/100W/120W
-
Laser Generator:
-
Metal RF CO2 Laser Generator
-
Laser wavelength:
-
9.3um,10.2um,10.6um
-
Deflection galvanometer:
-
High-precision two-dimension scanning system
-
Positioning method:
-
Red light preview, red light positioning
-
Machine material:
-
All-aluminum structure
-
Marking speed:
-
0-20000mm/s
-
Marking range:
-
70*70mm/110*110mm
-
System power supply:
-
AC220V/50Hz
Quick Details
-
Working Accuracy:
-
0.003mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Water Cooling / Air Cooling
-
Control Software:
-
Oscar Soft / Golden Orange
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Oscar
-
Marking Head Brand:
-
Sino-Galvo
-
Weight (KG):
-
67 KG
-
Marking Area:
-
70mm*70mm,,90*90mm,110*110mm,150*150mm
-
Core Components:
-
Laser Source
-
Feature:
-
Water Cooling / Air Cooling
-
Product name:
-
Assembly Line CO2 Laser Marking Machine
-
Laser Output Power:
-
30W/60W/100W/120W
-
Laser Generator:
-
Metal RF CO2 Laser Generator
-
Laser wavelength:
-
9.3um,10.2um,10.6um
-
Deflection galvanometer:
-
High-precision two-dimension scanning system
-
Positioning method:
-
Red light preview, red light positioning
-
Machine material:
-
All-aluminum structure
-
Marking speed:
-
0-20000mm/s
-
Marking range:
-
70*70mm/110*110mm
-
System power supply:
-
AC220V/50Hz
Our Advantages
Our Advantages
High precision：
High marking precision and accurate coding.
Long laser source life：
Up to 100,000 hours of service life.
Strong anti-counterfeiting
：
Laser marking is not easy to imitate and change.
Special bracket forassembly line：
Multi-angle adjustment, suitable for complex working conditions of the assembly line.
Multiple confiqurations：
Equipped with a dedicated encoder to detect pipeline speed in real time or equipped with optical fiber sensors to detect items in real time.
Low cost of usage：
Maintenance-free,no consumables.
Specification
|
Product Name
|
Production Line CO2 laser marking machine
|
|
|
|
|||
|
Model
|
CLMM-30-PL
|
CLMM-60-PL
|
CLMM-100-PL
|
CLMM-150-PL
|
|||
|
Laser Output Power
|
30W
|
60W
|
100W
|
150W
|
|||
|
Laser Generator
|
Metal RF CO2 Laser Generator
|
|
|
|
|||
|
Laser Wavelength
|
9.3um、10.2um、10.6um
|
|
|
|
|||
|
Deflection Galvanometer
|
High-precision two-dimension scanning system
|
|
|
|
|||
|
Positioning Method
|
Red light preview, red light positioning
|
|
|
|
|||
|
Machine Material
|
All-aluminum structure
|
|
|
|
|||
|
Marking Speed
|
0-20000mm/s
|
|
|
|
|||
|
Marking Range
|
70 × 70mm、90 × 90mm、110 × 110mm、150 × 150mm
|
|
|
|
|||
|
Cooling Mode
|
Air cooling
|
|
|
|
|||
|
System Power Supply
|
AC220V/50Hz
|
|
|
|
|||
|
Marking Materials
|
PET, acrylic, glass, leather, cloth, paper box, rubber, etc., such as mineral water bottles, edible oil barrels, wine bottles,food packaging bags, etc
|
|
|
|
|||
Machine parts
The imported RF laser sourceis adopted,with stable lightoutput,fine spot and strongfocusing effect.
High-speed
galvanometer
High precision laser scanning galvanometer,fast and clear, with high stability.
Adopt quartz high-transmittance coated field lens greatly improves the capability of edge beam focusing, high light transmittance, and good marking effect.
High-quality touch control experience, no stuck operation, high resistance and super anti-magnetic dust-proof,impact-proof ability and strong anti-interference ability, can work continuously for a long time.
This software is developed based on flight marking, which can easily edit text or graphic pattern, automatically generate batch number , serial number, and the software functions can be flexibly modified.
Using a reliable powersupply.the machine sourceruns stably and improvesthe output efficiency of the production line.
Samples show
