Quick Details
-
Brand Name:
-
youxintong
-
Dimension(L*W*H):
-
450*410*700MM
-
Product name:
-
Rock Splitter Machine
-
Usage:
-
Stone Rock Block Quarrying
-
Working Medium:
-
Hydraulic Oil
-
Delivery:
-
Sea
-
After-sales Service Provided:
-
Overseas Service Center
-
Power:
-
7.5kw
-
Feature:
-
Portable
-
42-45mm:
-
Splitting Diameter
-
Voltage:
-
380V/50hz
-
NO. splitter:
-
Max 18pcs
Quick Details
-
Weight (KG):
-
300
-
Application:
-
stone ,concrete
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youxintong
-
Dimension(L*W*H):
-
450*410*700MM
-
Product name:
-
Rock Splitter Machine
-
Usage:
-
Stone Rock Block Quarrying
-
Working Medium:
-
Hydraulic Oil
-
Delivery:
-
Sea
-
After-sales Service Provided:
-
Overseas Service Center
-
Power:
-
7.5kw
-
Feature:
-
Portable
-
42-45mm:
-
Splitting Diameter
-
Voltage:
-
380V/50hz
-
NO. splitter:
-
Max 18pcs
Product Description

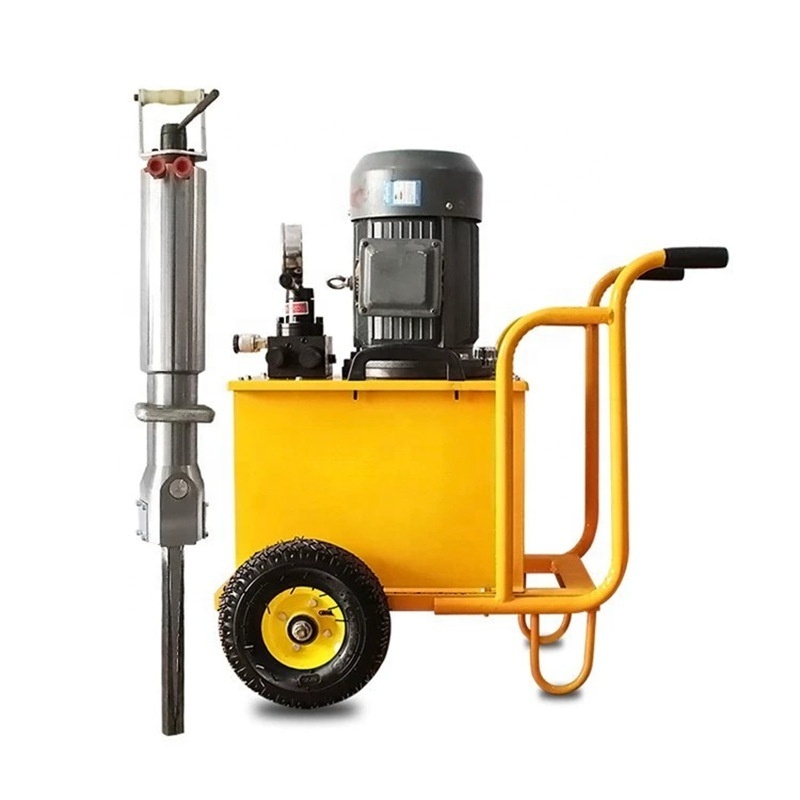

The rock splitting machine uses hydraulic mechanical method to split the rock, which is an innovative equipment for the efficient cracking and crushing of hard rock. It has great technical advantages in the case that the explosive can not be used in the mining and construction earthwork engineering, and the expansion crushing agent is eliminated.
Specification
|
Specification
|
Model
|
Drilling. Diameter
|
Drilling depth
|
Split time and volley
|
||||
|
|
|
|
|
Face distance
|
||||
|
Hydraulic Splitter
|
OLD-150
|
42mm
|
400mm
|
8-50s0.5m Left
|
||||
|
|
|
|
|
Right
|
||||
|
|
OLD-250
|
42mm
|
500mm
|
8-50s0.5m Left
|
||||
|
|
|
|
|
Right
|
||||
|
|
OLD-350
|
45mm
|
600mm
|
8-50s0.5m Left
|
||||
|
|
|
|
|
Right
|
||||
|
|
OLD-450
|
50mm
|
700mm
|
8-50s0.5m Left
|
||||
|
|
|
|
|
Right
|
||||
|
The pump station can be divided into two types
|
|
|
|
|
||||
|
Electric type: 3 types
|
|
|
Diesel type：3 types
|
|
||||
|
4kw
|
|
|
6HP
|
|
||||
|
5.5kw
|
|
|
8HP
|
|
||||
|
7.5kw
|
|
|
18HP
|
|
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
