Quick Details
-
Oiled or Non-oiled:
-
Non-oiled
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
China
-
Outer Diameter:
-
21.3 - 219.1 mm
-
Thickness:
-
1 - 10 mm
-
Grade:
-
235, Q195-Q345
-
Delivery Time:
-
21
-
Product name:
-
BS1387 galvanized pipe
-
Class:
-
Light /Medium / Heavy
-
Ends:
-
Threaded, Socketed, Plain, Grooved
-
Screw thread type:
-
BSP, NPT
-
Technique:
-
ERW
-
Type:
-
Welded Steel Pipe
Quick Details
-
Section Shape:
-
Round
-
Surface Treatment:
-
galvanized
-
Tolerance:
-
±5%
-
Oiled or Non-oiled:
-
Non-oiled
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
China
-
Outer Diameter:
-
21.3 - 219.1 mm
-
Thickness:
-
1 - 10 mm
-
Grade:
-
235, Q195-Q345
-
Delivery Time:
-
21
-
Product name:
-
BS1387 galvanized pipe
-
Class:
-
Light /Medium / Heavy
-
Ends:
-
Threaded, Socketed, Plain, Grooved
-
Screw thread type:
-
BSP, NPT
-
Technique:
-
ERW
-
Type:
-
Welded Steel Pipe
Product Description
BS 1387:1985 standard
Specification for Screwed and Socketed steel tubes and tubulars and for plain end steel tubes suitable for welding or for screwing to BS21 pipe threads.
Specification
|
ITEMS
|
BS1387-1985 galvanised pipe
|
|
Standard
|
BS 1387
|
|
Grade
|
Q235, Q345, Q195
|
|
Thickness
|
1mm - 10mm
|
|
Section Shape
|
Round
|
|
|
21.3mm - 219.1mm
|
|
Place of Origin
|
China
|
|
Application
|
Fluid Pipe
|
|
Technique
|
ERW
|
|
Surface Treatment
|
Galvanized
|
|
Tolerance
|
±5%
|
|
Type
|
Welded Steel Pipe
|
|
Processing Service
|
Bending, Welding, Punching, Cutting, Screwing, grooving, socketed, stamping
|
|
Product name
|
BS1387 galvanized pipe
|
|
Standard
|
BS1387
|
|
Class
|
Light/Medium/Heavy
|
|
Ends
|
Plain ends, Screwed ends,
|
|
End protector
|
PVC caps
|
|
Usage
|
Water pipe,Conduit pipe
|

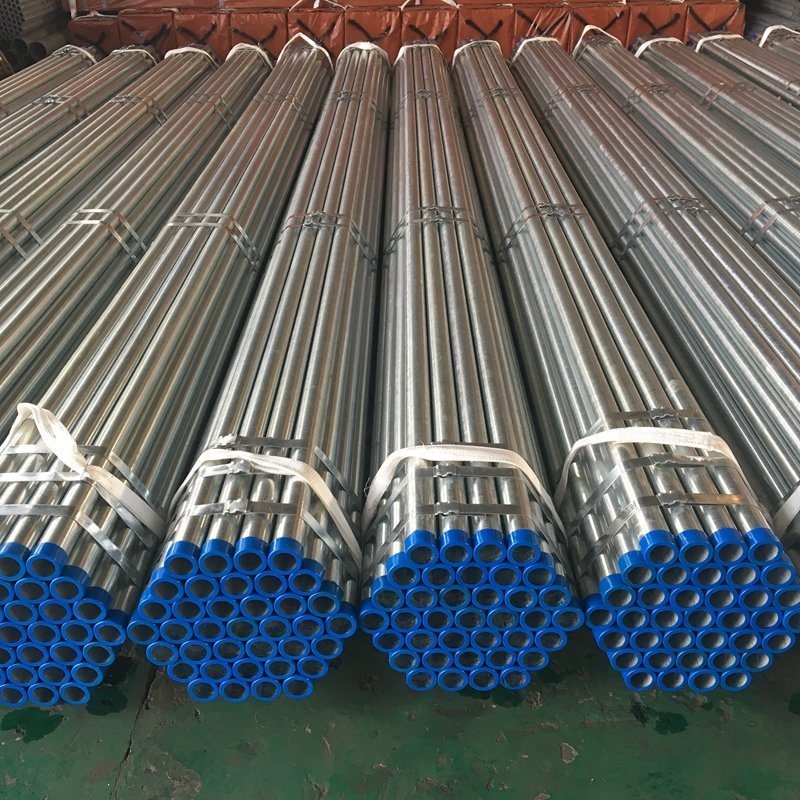

Packing & Delivery
1.Big OD (above OD273mm): in bulk loose packing
2.Small OD (below OD273mm):packed by bundles and fastened by steel strips
3.Normal OD: bundles with eight heavy steel strips ,plastic tarpaulin cloth cover all the bundles and including two slings per bundle with two steel tags
