Quick Details
-
Model Number:
-
DM3011
-
Product name:
-
Transmission Densitometer
-
Principle:
-
Transmission Type
-
Density Range:
-
0.00 ~ 5.00
-
Outstanding Feature:
-
Auto Calibration
-
Application:
-
X-Ray Film
-
Display:
-
Three Digital
-
Power supply:
-
AC 100V - 120V or 200V - 240V
-
Gross Weight:
-
3.4kg
-
Working Environment:
-
Temperature 0℃-40℃
-
Warranty:
-
12 Months
Quick Details
-
Type:
-
Electrical
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YUSHI
-
Model Number:
-
DM3011
-
Product name:
-
Transmission Densitometer
-
Principle:
-
Transmission Type
-
Density Range:
-
0.00 ~ 5.00
-
Outstanding Feature:
-
Auto Calibration
-
Application:
-
X-Ray Film
-
Display:
-
Three Digital
-
Power supply:
-
AC 100V - 120V or 200V - 240V
-
Gross Weight:
-
3.4kg
-
Working Environment:
-
Temperature 0℃-40℃
-
Warranty:
-
12 Months
Product Description
DM3011 Led X-Ray Densitometer Calibrated X Ray Film NDT Density Meter
DM30 Series Black White Transmission Densitometer is used for measuring the blackness of films; YUSHI Densitometer
Black White

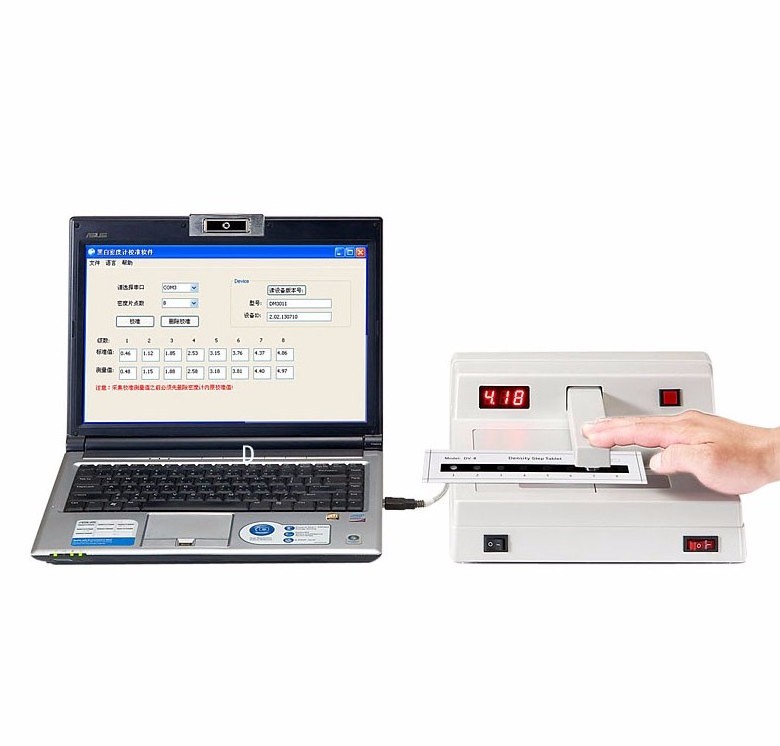

has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation. Each x-ray film densitometer is equipped with density tablet and calibration software for testing its accuracy, users can calibrate the densitometer by themselves with our calibration software and standard step density tablet.
YUSHI Industrial Portable
Transmission Densitometer
can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc.
Detailed Images
|
Product Name
|
calibrated x ray film ndt density meter
|
|
Density Range
|
D=0.00—4.00 (DM3010)
D=0.00—4.50 (DM3010A) D=0.00—5.00 (DM3011) |
|
Repeatability
|
±0.02
|
|
Measuring Error
|
0.00—2.00 0.02
2.00—4.50 0.05 4.50—5.00 0.06 |
|
Power
|
50 ~ 60Hz, 100V-120V or 200V-240V
|
|
Power Dissipation
|
25W
|
|
Aperture Size
|
Dia. 2mm
|
|
Display
|
Three digital display
|
|
Light Source
|
27pcs LED
|
|
Sampling Time
|
0.8 s
|
|
Communication Port
|
RS232 Port, optional USB connection
|
|
Working Environment
|
Temperature 0 ℃~40 ℃, Relative humidity(RH)≤85%
|
|
Dimension
|
260×265×110 (H×W×L)
|
|
Weight
|
2.1kg
|
Calibration Certificate of Black and White Calibrated Density Meter
Packing & Delivery
|
DM3000
calibrated x ray film ndt density meter
|
|
|
Standard Step Density Tablet
|
|
|
|
|
|
Serial Port Cable
|
|
|
Software CD for Auto Calibration
|
1
|
|
