Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1500x1800mm
-
Weight:
-
600 KG
-
Machine name:
-
cartridge filling capping machine
-
Capacity:
-
50-80 vials/min
-
Filling volume:
-
1-5ml
-
filling nozzle:
-
4
-
capping head:
-
2
-
certificate:
-
CE
-
controller:
-
PLC
-
warranty:
-
1-2 years
-
Service time:
-
Lifelong
-
operate panel:
-
Touch screen
Quick Details
-
Machinery Capacity:
-
12000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Oil
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1500x1800mm
-
Weight:
-
600 KG
-
Machine name:
-
cartridge filling capping machine
-
Capacity:
-
50-80 vials/min
-
Filling volume:
-
1-5ml
-
filling nozzle:
-
4
-
capping head:
-
2
-
certificate:
-
CE
-
controller:
-
PLC
-
warranty:
-
1-2 years
-
Service time:
-
Lifelong
-
operate panel:
-
Touch screen
Yangbang Factory
4 Nozzles High Speed Press Vial Stoppering Capping Machine Sealant Oil Cartridges 1ml 1.8ml Cartridge Machine Filling
Products Description
|
Model
|
YB-KS2
|
YB-KS4
|
|
Filing head number
|
2
|
4
|
|
Capping head number
|
1
|
2
|
|
Filling volume
|
2-120ml
|
2-120ml
|
|
Capacity
|
30-40 vials/min
|
50-70 vials/min
|
|
Filling accuracy
|
≤ ±1%
|
≤ ±1%
|
|
Pass rate
|
≥ 98%
|
≥ 98%
|
|
Power supply
|
1 Ph. AC220V/ 50/60Hz
|
1 Ph. AC220V/50/60Hz
|
|
Total power
|
1.9 KW
|
2.1 KW
|
|
Net weight
|
About 600kg
|
About 700 kg
|
|
Overall Dimension
|
L2000x W1500x H1800mm
|
L2400x W1500x H1900mm
|
Machine features:
1. Workflow: vial feeding→inserting inner stopper
→
filling liquid→adding outer cap→capping→self adhesive labeling (optional) →ribbon printing (optional)→inkjet printing (optional).
2. This machine use a mechanical arm for capping, equipped with automatic sliding device, to prevent damage to the cap.
3. Peristaltic pump/piston pump measuring, accurate measurement, easy to control.
4. Filling system has suction / anti-drip device.
5. Color touch screen display, PLC control system, no bottle no filling/ no adding plug/ no capping.
6. The whole machine is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine body is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.
Details Images

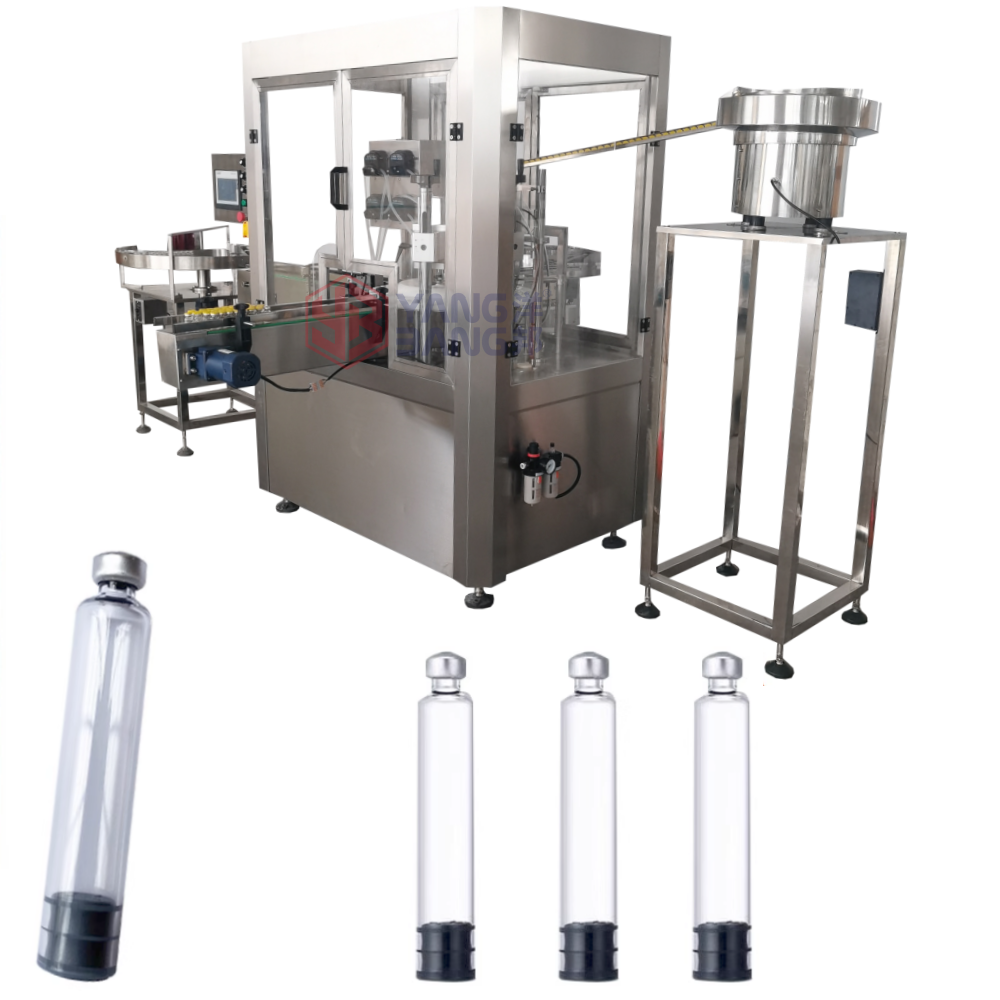

Automatic 4 Heads Cartridge Filling Machine for 1.8ml Glass Vial With Stoppering and Adding Aluminum Caps (50-70 vials/min)
Automatic Hopper for Cartridge Vials
Automatic Rubber Stopper Feeding Mold
Automatic aluminum cap feeder
Touch Screen Display
Automatic adding stopper on bottom,
4 nozzles filling
liquid, adding aluminum cap, crimping
High quality imported good brand components
