Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Repeatability:
-
±2.5 total range
-
Connection method:
-
Terminal
-
Output:
-
NO+NC(250VAC,3A)
-
Withstand pressure:
-
16bar
-
Ambient temperature:
-
-25... 85 ℃
-
Medium temperature:
-
90℃
-
Protection level:
-
IP33
-
Body:
-
Stainless steel
-
Process connections:
-
Stainless steel
-
Connection rod:
-
Stainless steel
Quick Details
-
Brand Name:
-
KATU
-
Model Number:
-
FC340
-
Type:
-
flow switch
-
Place of Origin:
-
Jiangsu, China
-
Repeatability:
-
±2.5 total range
-
Connection method:
-
Terminal
-
Output:
-
NO+NC(250VAC,3A)
-
Withstand pressure:
-
16bar
-
Ambient temperature:
-
-25... 85 ℃
-
Medium temperature:
-
90℃
-
Protection level:
-
IP33
-
Body:
-
Stainless steel
-
Process connections:
-
Stainless steel
-
Connection rod:
-
Stainless steel
Principle characteristics

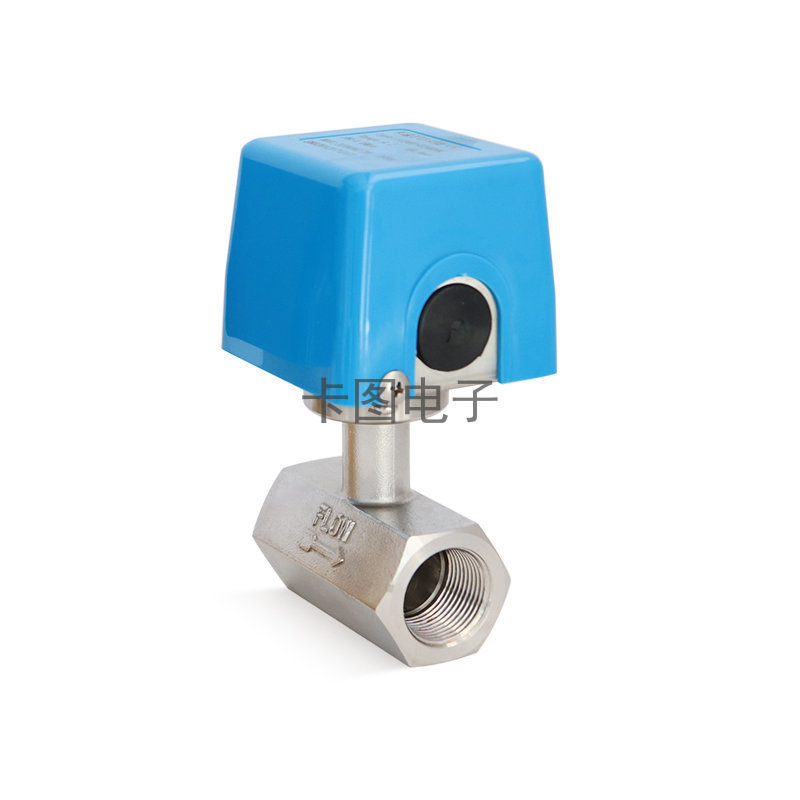

FC340 stainless steel straight-through flow switch is the upgraded MODEL of FC330 stainless steel with built-in spring spring-supported baffle. When the flow reaches the prefabricated value,the mechanical structure triggers the micro switch. In -line installation，minimal pressure loss,good repeatability,anti - fouling ability,accurate switch setting by knob. The mechanical part is completely isolated from the electrical part.
Product application
Vapor-liquid dual-purpose，industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning for pipes with diameter ≤40mm.
Product parameter
|
Repeatability
|
±2.5 total range
|
|
Connection method
|
Terminal
|
|
Output
|
NO+NC(250VAC,3A)
|
|
Withstand pressure
|
16bar
|
|
Ambient temperature
|
-25... 85 ℃
|
|
Medium temperature
|
90℃
|
|
Protection level
|
IP33
|
|
Body
|
Stainless steel
|
|
Process connections
|
Stainless steel
|
|
Connection rod
|
Stainless steel
|
|
Baffle
|
Stainless steel
|
|
Shell
|
ABS
|
|
Sealing
|
NBR
|
|
