Quick Details
-
Product Name:
-

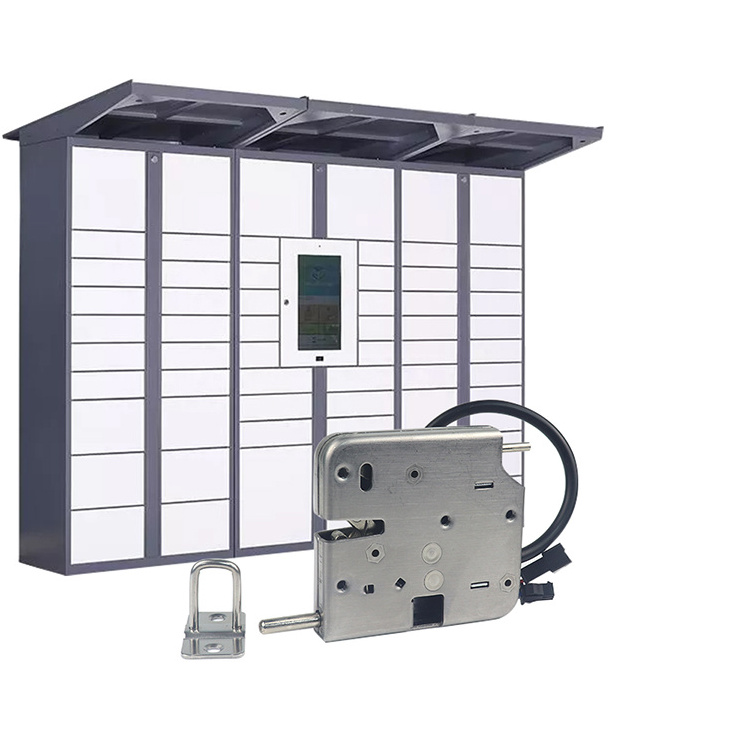

Cabinet Door Lock
-
Product Model:
-
KR-S99
-
Size:
-
67*72.5*13.5 mm
-
Material of lock body:
-
430 Stainless Steel
-
Working voltage:
-
DC 12V/24V
-
Working current:
-
2.4A/1.2A
-
Tensile strength:
-
240 kg
-
Warranty:
-
1 year
-
Application:
-
Logistics express lock, automatic vending machine lock, etc
-
Certification:
-
CE; FCC; RoHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERONG
-
Model Number:
-
KR-S99
-
Product Name:
-
Cabinet Door Lock
-
Product Model:
-
KR-S99
-
Size:
-
67*72.5*13.5 mm
-
Material of lock body:
-
430 Stainless Steel
-
Working voltage:
-
DC 12V/24V
-
Working current:
-
2.4A/1.2A
-
Tensile strength:
-
240 kg
-
Warranty:
-
1 year
-
Application:
-
Logistics express lock, automatic vending machine lock, etc
-
Certification:
-
CE; FCC; RoHS
|
Model |
KR-S99 |
|
Brand |
KERONG |
|
Product name |
Cabinet Door Lock |
| Size |
67*72.5*13.5 mm |
|
Weight with lock hook |
184 g |
|
Material of lock body |
430 Stainless Steel |
|
Material of lock tongue |
Zinc Alloy |
|
Surface treatment |
Brushed texture surface |
|
Usage |
storage locker; cabinet; logistic locker; vending machine ; deposit locker |
|
Door weight |
0.5KG~10KG |
|
Working voltage |
DC 12V/24V |
|
Working current |
2.4A/1.2A |
|
Maximum power |
28.8W |
|
Drive mode |
Solenoid |
|
Reaction time |
Less than 200ms |
|
Working temperature |
-20℃ ~ +60℃ |
|
Working humidity |
5% ~ 85%RH |
|
Working life |
500,000 times |
|
OEM |
Accepted |
|
Test |
Salt spray testing 48 hours |
|
Signal detection/ Travel switch (open/close) |
Omron (can choose domestic switch) |
|
Certification |
CE; FCC; RoHS |
1. The compact structure design allows more space for the storage cabinet.
2. Omron micro detective switch from Japan, high quality and durability of 500,000-time working life.
3. Solenoid driven, support 12V & 24V.
4. Security: Lock shells , made from 430 stainless steel, won't obvious permanent deform permanently.
5. AWG24 wires with PVC protecting tube.
6. Different lock hooks suit for different locker design, customizing service is available.
7. Support customizing wires and connectors.
