Quick Details
-
Model Number:
-
SKA-22mm
-
Product Name:
-
2 Port Zone Valve
-
Power:
-
230 VAC
-
Pressure:
-
2 bar
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SKA
-
Model Number:
-
SKA-22mm
-
Product Name:
-
2 Port Zone Valve
-
Power:
-
230 VAC
-
Pressure:
-
2 bar

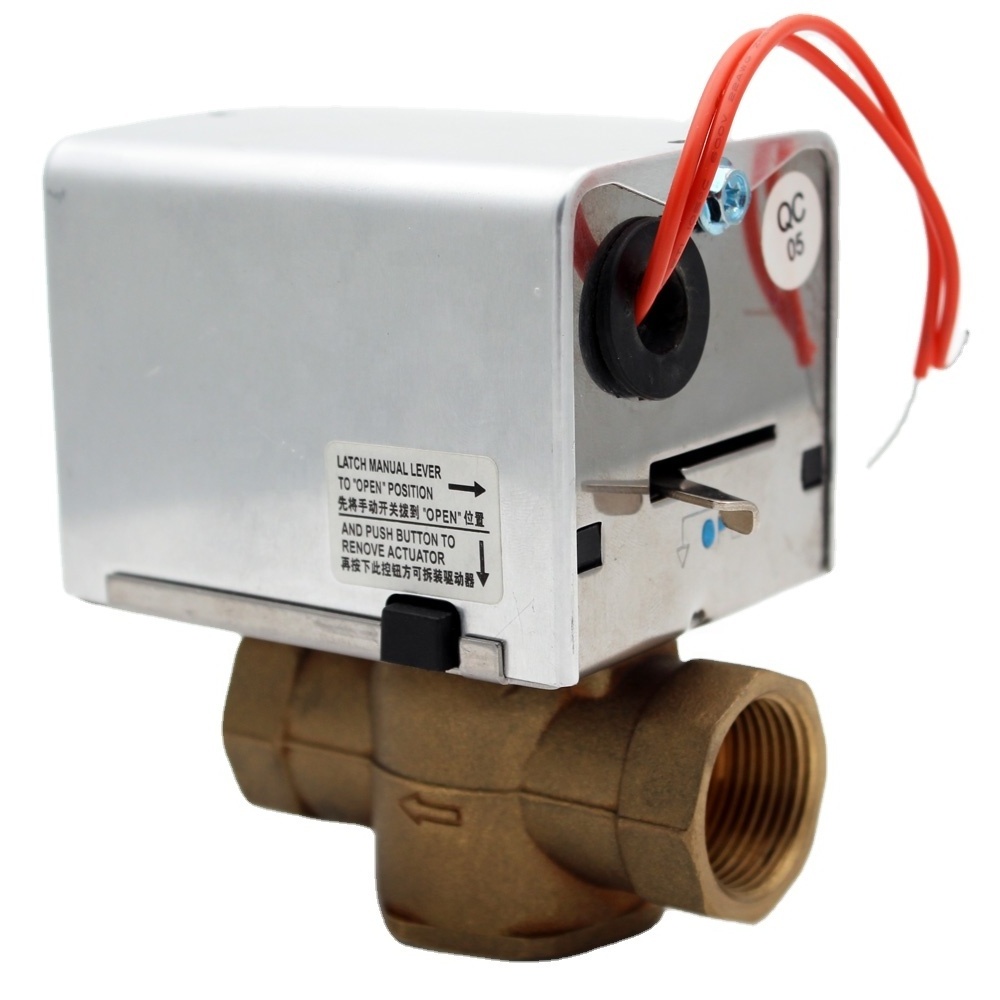

SKA-22mm compression Fan Coil Motorized 2 Port Zone Valve
2 PORT ZONE VALVE / WITH METAL COVER
230 Vac(24Vac and 110 Vac on request),6W power consumption.5 Core, 1 meter cable length with 'industry standard' colour coded
wire. Auxillary microswitch 3A-250 Vac. Max amp temp 60℃, Media temp 5 to 88℃K.V. measured in m³/h for bar pressure drop. Manual
lever for filling/draining. Port A is normally closed when there is no power. Detachable actuator.
APPLICATION
The SZV range 2-port spring return valve has been designed in general to be used in commercial, industrial applications and on
central heating systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will
control the water flow from the boiler to central heating.
230 Vac(24Vac and 110 Vac on request),6W power consumption.5 Core, 1 meter cable length with 'industry standard' colour coded
wire. Auxillary microswitch 3A-250 Vac. Max amp temp 60℃, Media temp 5 to 88℃K.V. measured in m³/h for bar pressure drop. Manual
lever for filling/draining. Port A is normally closed when there is no power. Detachable actuator.
APPLICATION
The SZV range 2-port spring return valve has been designed in general to be used in commercial, industrial applications and on
central heating systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will
control the water flow from the boiler to central heating.
|
ZONE VALVES
|
|
|
||
|
With metal cover
|
|
|
||
|
Auxillary microswitch fitted as standard
|
|
|
||
|
ZV22
|
22mm Compression
|
KV4.3
|
||
|
ZV28
|
28mm Compression
|
KV5.0
|
||
|
ZV1/2
|
1/2"BSP female
|
KV4.3
|
||
|
ZV3/4
|
3/4"BSP female*
|
KV4.3
|
||
|
ZV3/4C
|
3/4"Comp.Irish pipe
|
KV4.3
|
||
|
ZV1
|
1"BSP female*
|
KV5.0
|
||
|
ZV1C
|
1"Comp.Irish pipe
|
KV5.0
|
||
