Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Dinosaw
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
600X500X300CM
-
Weight:
-
5000 kg
-
Product name:
-
Bridge cutting machine
-
After-sales Service Provided:
-
Online support
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
18.5KW
-
Cutting thickness (max):
-
180mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Dinosaw
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
600X500X300CM
-
Weight:
-
5000 kg
-
Product name:
-
Bridge cutting machine
-
After-sales Service Provided:
-
Online support

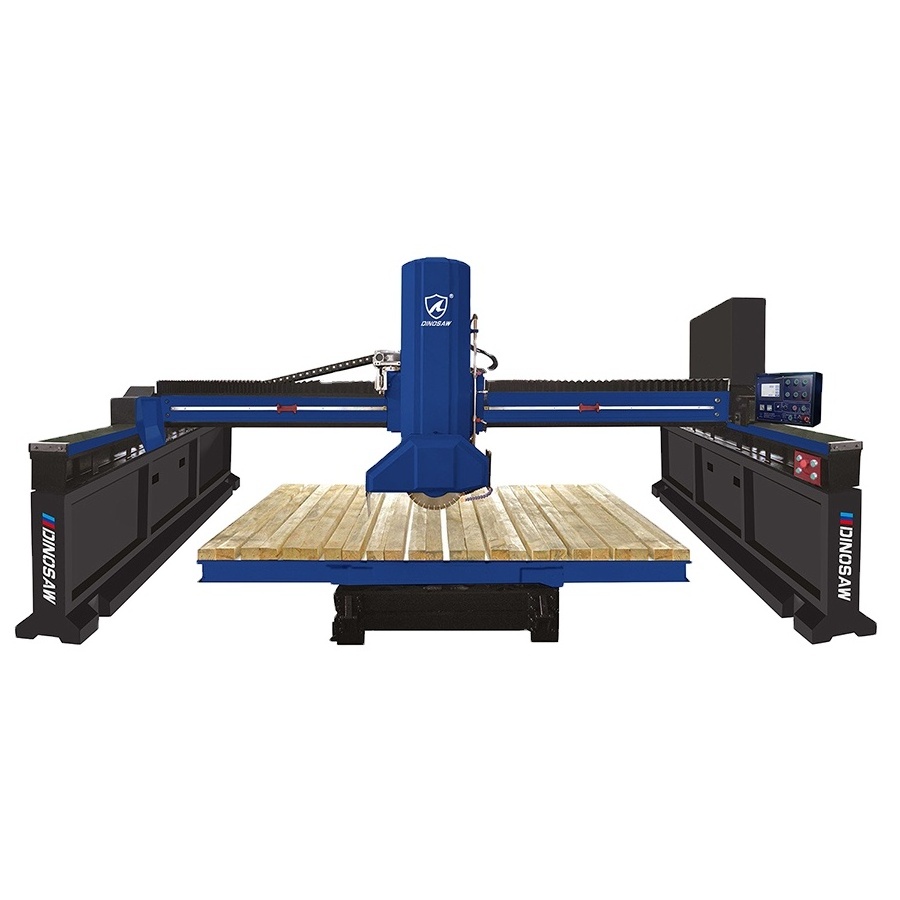

Intelligent laser bridge saw stone cutting machine
Product Description
Machine Features:
Stone bridge cutting machine is for slab processing, which adopts programmer logic controller, fine frequency converter, signing laser etc for automatic function and guarantee its precise and stable cutting. We have model QSQJ-400, QSQJ-600, QSQJ-800 for you to choose.
Technical Parameters:
| Model | Unit | QSQJ-400 | QSQJ-600 | QSQJ-800 |
| Max. diameter of blade | mm | φ350-φ400 | φ400-φ600 | φ400-φ800 |
| Main motor power | kw | 15 | 18.5 | 22 |
| Table dimension | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Table tilting degree | n° | 0-85° | 0-85° | 0-85° |
| Table rotating degree | n° | 90°/360° | 90°/360° | 90°/360° |
| Max. cutting size | mm | 3200*2000*80 | 3200*2000*180 | 3200*2000*280 |
| Overall dimension | mm | 6000*5000*3000 | 6000*5000*3200 | 6000*5000*3400 |
| Water consumption | m³/h | 3 | 3 | 3 |
| Approximate weight | kg | 5000 | 5300 | 5500 |
