Host parameters
|
Waterproof level: IP65
Screen size: 5 inches Volume: 195X140X45mm Weight: 0.85kg |
|
Ultrasound value error
|
±0.1μs
|
|
Operating frequency of the ultrasonic transducer
|
50KHz
|
|
Instrument ultrasonic frequency range
|
5Hz~500KHz
|
|
Method of data transmission
|
USB transmission, wireless cloud transmission (optional)
|
|
Nominal impact energy of the rebound hammer
|
2.207J
|
|
Pop the pull spring stiffness
|
785.0±40.0(N/m)
|
|
Strike rod strike length
|
75.0±0.3 mm
|
|
Bulback value error
|
≤±0.5
|
|
The average of rebound steel roostock
|
80±2
|
|
power supply mode
|
Large-capacity lithium battery, the power supply time is more than 8 hours
|
|
work environment
|
-10℃~40℃
|
|
packing specifications
|
Material: engineering plastic volume: 420140335mm weight 5.5kg
|

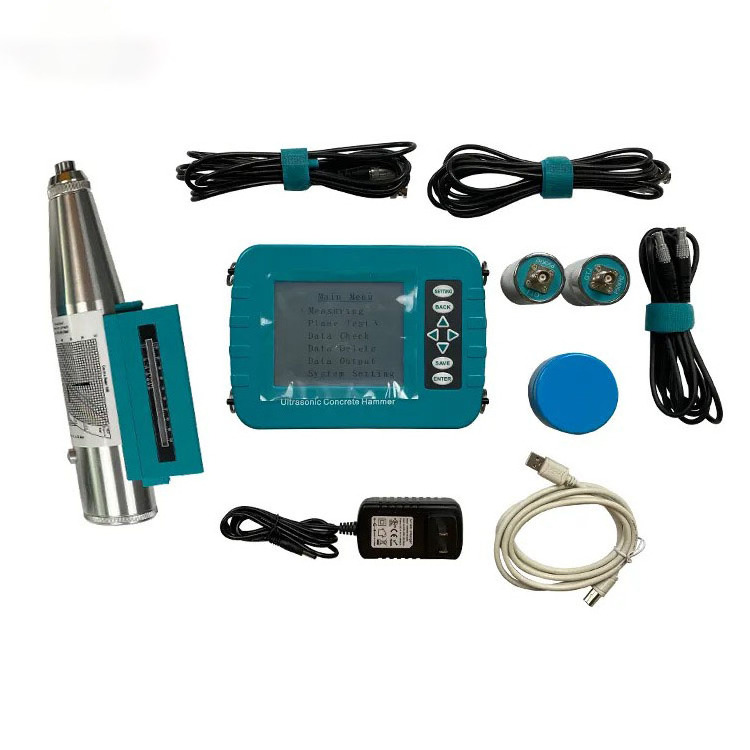

U200 Concrete Strength Tester
Ultrasonic Rebound test system is a kind of comprehensive instrument
widely used to test the surface compressive strength and internal defect of concrete. It could be used as a digital concrete test hammer alone, and also could test sound velocity and sound time.
