Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Dimension(L*W*H):
-
105*66*59cm
-
Weight (KG):
-
85 KG
-
Product Name:
-
CO2 Laser Engraving Machine
-
Working Table Size:
-
300x400mm
-
Laser Tube:
-
Sealed CO2 Glass Tube
-
Working Table:
-
Honeycomb
-
Laser Power:
-
40W
-
Cutting Speed:
-
0-60mm/s
-
Computer system:
-
Windows XP/win7/ win8/win10
-
Motor:
-
Stepper Motor
-
Certification:
-
CE
Quick Details
-
Engraving Area:
-
300*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
400mm/s, 0-400mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Dimension(L*W*H):
-
105*66*59cm
-
Weight (KG):
-
85 KG
-
Product Name:
-
CO2 Laser Engraving Machine
-
Working Table Size:
-
300x400mm
-
Laser Tube:
-
Sealed CO2 Glass Tube
-
Working Table:
-
Honeycomb
-
Laser Power:
-
40W
-
Cutting Speed:
-
0-60mm/s
-
Computer system:
-
Windows XP/win7/ win8/win10
-
Motor:
-
Stepper Motor
-
Certification:
-
CE

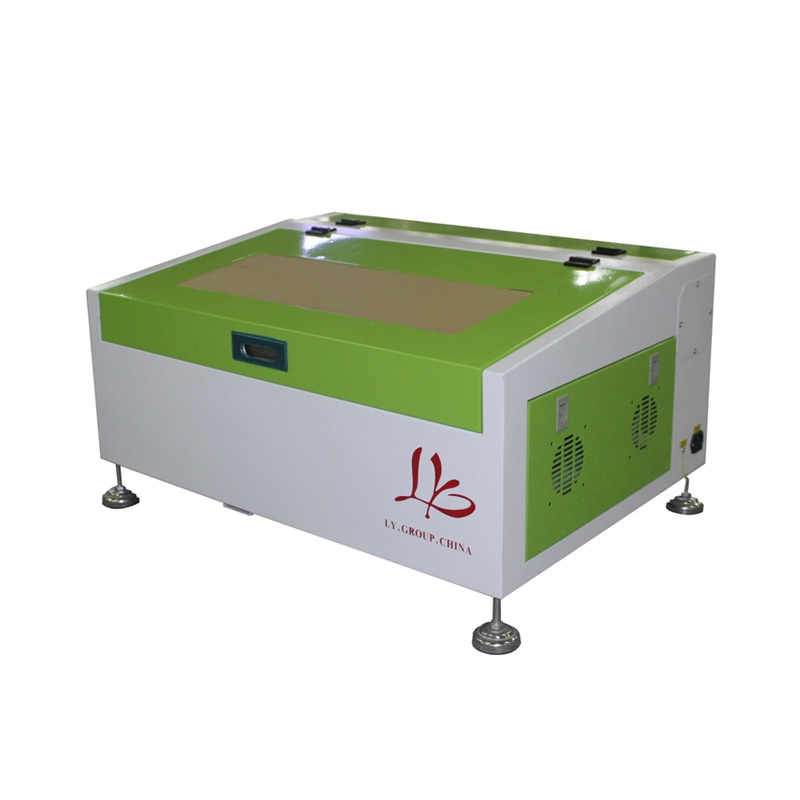

LY Mini Laser 3040 40W CO2 Laser Engraving Cutting Machine 300*400mm Working Size With LCD Control Panel Hand Honeycomb Board
|
Working Table Size |
300mmm *400mm |
|
Laser Tube |
Sealed CO2 glass Tube |
|
Working Table |
Honeycomb |
|
Laser Power |
40W |
|
Cutting Speed |
0-60 mm/s |
|
Engraving Speed |
0-400mm/s |
|
Resolution |
±0.05mm/1000DPI |
|
Minimum Letter |
English 1×1mm (Chinese Characters 2*2mm) |
|
Support Fils |
BMP,HPGL,PLT,DST and AI |
|
Interface |
USB2.0 |
|
Software |
Coreldraw /Laserdraw |
|
Computer system |
Windows XP/win7/ win8/win10 |
|
Motor |
Stepper Motor |
|
Power Voltage |
AC 110 or 220V±10%,50-60Hz |
|
Power cable |
European Type/China Type/America Type/UK Type |
|
Working Environment |
0-45 ℃ (temperature) 5-95%(humidity) |
|
Power consumption |
<900W (Total) |
|
Z-Axis Movement |
Manual |
|
Position system |
Red-light pointer |
|
Cooling way |
Water cooling and protection system |
|
Cutting thickness |
Please consult sales |
|
Rotary device |
With |
|
Industrial Water cooler |
Optional |
|
Packing Size |
105*66*59cm |
|
Gross Weight |
85KG |
|
Package |
Standard plywood case for export |
|
Warranty |
All life free tech support, one year warranty, except consumables |
|
Free accessories |
Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |
|
Optional parts |
Spare focus lens Spare reflecting mirror |
|
Blowing antiflaming system |
With |
|
Red light align function |
With |
Single pack:
1.laser 3040 Engraving machine 40W.
2.Honey comb board 300*400mm
3.USB date line
4.Power line
5.USB dongle
6.Smoke pipe
7.Water pump
8.Air pump
9.Rotary axis
10.Smoke fan
ZH1009 pack:
Single pack x 1
Reflector x 3
Mirror x 1
ZH1010 pack:
Single pack x 1
Reflector x 3
Mirror x 1
Rotary axis x 1
ZH1013 pack
Single pack x 1
Reflector x 3
Mirror x 1
DSP Kit*1
ZH1014 pack
Single pack x 1
Reflector x 3
Mirror x 1
DSP Kit*1
Rotary axis x 1
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
