Quick Details
-
Style:
-
Radio Control Toy
-
Torque:
-
21kg-cm/6.0V 24.5kg-cm/7.4V
-
Speed:
-
0.12sec/60°/6.0V 0.10sec/60°/7.4V
-
Size:
-
40mm*20mm*37mm
-
Motor:
-
Brushless Motor
-
Gear:
-
Titanium
-
Case:
-
Full aluminum
Quick Details
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
K-power
-
Model Number:
-
HBL836
-
Style:
-
Radio Control Toy
-
Torque:
-
21kg-cm/6.0V 24.5kg-cm/7.4V
-
Speed:
-
0.12sec/60°/6.0V 0.10sec/60°/7.4V
-
Size:
-
40mm*20mm*37mm
-
Motor:
-
Brushless Motor
-
Gear:
-
Titanium
-
Case:
-
Full aluminum

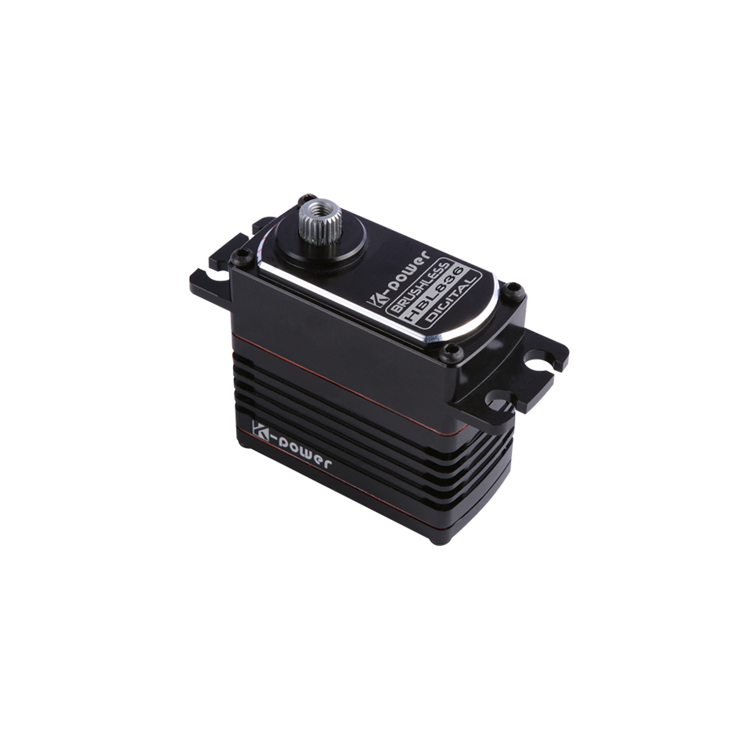

HBL836 K-power 25kg digital burshless titanium gear aluminum case servo motor
1.Brushless motor provides high speed, incredible efficiency, and low power consumption.
2.The Aluminum case design looks good and allows for cooler and smoother operating temps.
3.Extremely strong Titanium gears ensure long-life and durability.
4.Ideal used for RC Airplane, Heli, Car, Boat, Robot and Retract Landing Gear
|
Application
|
RC Airplane, Heli, Car, Boat, Robot and Retract Landing Gear
|
|
Model Type:
|
Digital servo
|
|
Motor Type:
|
Brushless
|
|
Case material:
|
Aluminum Whole Case
|
|
Gear material:
|
Titanium Alloy
|
|
Bearing Type:
|
2BB
|
|
Weight:
|
72g / 2.5oz
|
|
Dimension:
|
40*20*37mm³ / 1.6*0.8*1.5in³
|
|
Operation Voltage:
|
6-7.4V
|
|
Torque:
|
21kg-cm/6.0V; 24.5kg-cm/7.4V
|
|
|
289oz-in/6.0V; 338oz-in/7.4V
|
|
Speed:
|
0.15sec/60°/6.0V; 0.13sec/60°/7.4V
|
|
Pulse Width:
|
900-2100
|
|
Dead band width:
|
2μs
|
|
Interface Type:
|
JR / FT / JST1.5 / JST2.0 / Other
|
|
Operating Temperature:
|
-20 to 75 centigrade
|
|
Splining:
|
25T
|
|
Wire Length:
|
Based on your requirement
|
|
Waterproof:
|
Yes
|
|
Certification:
|
CE & FCC
|
1)Generally we use cartons and bubbles or plastic box to package the goods, Ensure the goods reach you smoothly. Our warehouse staff will check the packaging before delivery.
2) Normally we use DHL, FedEx, UPS, TNT to ship your goods.Just pay for the cost and wait for it at home .
Q: Can I get a free sample?
A: Some servos support free sample. Please contact with us for more detailed information.
Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact with us if you need special rotation angle.
Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.
Q: Can I get customized servo?
A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and software. Perfect customization services are our main business.
We are confident we can make any to suit your application!
Q: For a customized servo, how long is the R&D time (Research & Development time)?
A: Normally, 10~50 business days depends on your requirements.
