Quick Details
-
Brand Name:
-
Gaodetec
-
Charging Capacity:
-
75L-1875L
-
Reclaiming capacity:
-
50l-1250l
-
Speed of Mixing Drum:
-
40rpm
-
Water Supply Mode:
-
water pump
-
Working Cycle Period:
-
5min
-
Discharge Way:
-
Pneumatic/ Hydraulic Discharge
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2000 kg
-
Model:
-
GCPM Series
-
Output Volume:
-
50-1250L
-
Feeding Capacity:
-
120-3000L
-
Product name:
-
Planetary Concrete Mixer
-
Brand:
-
Gaodetec
-
Certificate:
-
CE/SGS/ISO9001
-
Type:
-
Planetary Mixer
-
Advantage:
-
High Productivity
-
Concrete mixer type:
-
Vertical Planetary Concrete Mixer
Quick Details
-
Mixing Power:
-
customization
-
Productivity:
-
18M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Gaodetec
-
Charging Capacity:
-
75L-1875L
-
Reclaiming capacity:
-
50l-1250l
-
Speed of Mixing Drum:
-
40rpm
-
Water Supply Mode:
-
water pump
-
Working Cycle Period:
-
5min
-
Discharge Way:
-
Pneumatic/ Hydraulic Discharge
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2000 kg
-
Model:
-
GCPM Series
-
Output Volume:
-
50-1250L
-
Feeding Capacity:
-
120-3000L
-
Product name:
-
Planetary Concrete Mixer
-
Brand:
-
Gaodetec
-
Certificate:
-
CE/SGS/ISO9001
-
Type:
-
Planetary Mixer
-
Advantage:
-
High Productivity
-
Concrete mixer type:
-
Vertical Planetary Concrete Mixer
Products Description

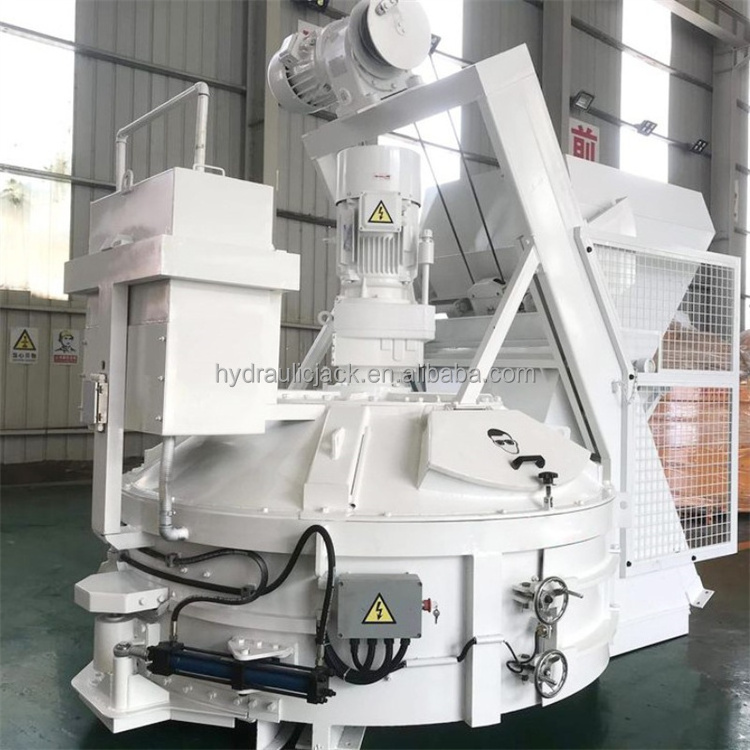

GCPM series planetary mixer can mix all kinds of high-quality and high performance concrete, and which can reach homogenous mixing at shortest time.
The planetary concrete mixer machine output volume is
50L-4000L
, also provide the customized service!
Mixing Device
Driven by the gearing system, the blades fixed on mixing arms and the scarpers arms crush and overturn the: material to complete
the compelling mixing.
Driven by the gearing system, the blades fixed on mixing arms and the scarpers arms crush and overturn the: material to complete
the compelling mixing.
Water Device
The specially designed sprayer is installed on the water pipe. The spraying water cloud can cover more area and also make the mixing.
Technical Parameters
|
Model
|
GCPM50
|
GCPM100
|
GCPM150
|
GCPM250
|
GCPM330
|
||||
|
Feeding Volume (L)
|
75
|
150
|
225
|
375
|
500
|
||||
|
Feeding Capacity (Kg)
|
120
|
240
|
360
|
600
|
790
|
||||
|
Output Volume (L)
|
50
|
100
|
150
|
250
|
330
|
||||
|
Mixing Power (Kw)
|
3
|
5.5
|
7.5
|
11
|
15
|
||||
|
Mixing Star*Blade
|
1*2
|
|
|
|
|
||||
|
Side Scraper
|
1
|
|
|
|
|
||||
|
Discharge Scraper
|
-
|
-
|
1
|
|
|
||||
|
Discharging Power (KW)
|
Pneumatic Discharging
|
|
|
2.2
|
2.23
|
||||
|
Weight (Kg)
|
750
|
1000
|
1300
|
1500
|
2000
|
||||
|
Model
|
GCPM500
|
GCPM750
|
GCPM1000
|
GCPM1250
|
|||
|
Feeding Volume (L)
|
750
|
1125
|
1500
|
1875
|
|||
|
Feeding Capacity (Kg)
|
1200
|
1800
|
2400
|
3000
|
|||
|
Output Volume (L)
|
500
|
750
|
1000
|
1250
|
|||
|
Mixing Power (Kw)
|
18.5
|
30
|
37
|
45
|
|||
|
Mixing Star*Blade
|
1*2
|
1*3
|
2*2
|
2*2
|
|||
|
Side Scraper
|
1
|
|
|
|
|||
|
Discharge Scraper
|
1
|
3
|
1
|
|
|||
|
Discharging Power (KW)
|
2.2
|
3
|
|
2.2
|
|||
|
Weight (Kg)
|
2400
|
3900
|
5500
|
6000
|
|||
Product Show
Products Details
The inside of the machine is equipped with a wear-resistant lining to prevent damage to the inside of the machine. The stirring arm is made of steel, which greatly improves the service life of the machine. The internal unloading scraper allows the machine to unload quickly, and there are two other unloading methods to choose from.
Product Application
The planetary concrete mixer can mix all kinds of high-quality and high-performance concrete, and also be widely used for glass, ceramics, refractories, fertilizer etc.
