Quick Details
-
Product name:
-
Home Powerwall Battery
-
Application:
-
Solar Energy Storage
-
Capacity:
-
50Ah
-
Cycle life:
-
6000 Times
-
Voltage:
-
48V 51.2V
-
Warranty:
-
5 Years
-
Battery cell:
-
CATL
-
Protection:
-
Short Circuit Protection
-
Features:
-
Wall Mounted Design
Quick Details
-
Model Number:
-
JSK-B48502W
-
Brand Name:
-
GOOTU
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Home Powerwall Battery
-
Application:
-
Solar Energy Storage
-
Capacity:
-
50Ah
-
Cycle life:
-
6000 Times
-
Voltage:
-
48V 51.2V
-
Warranty:
-
5 Years
-
Battery cell:
-
CATL
-
Protection:
-
Short Circuit Protection
-
Features:
-
Wall Mounted Design
Product Description

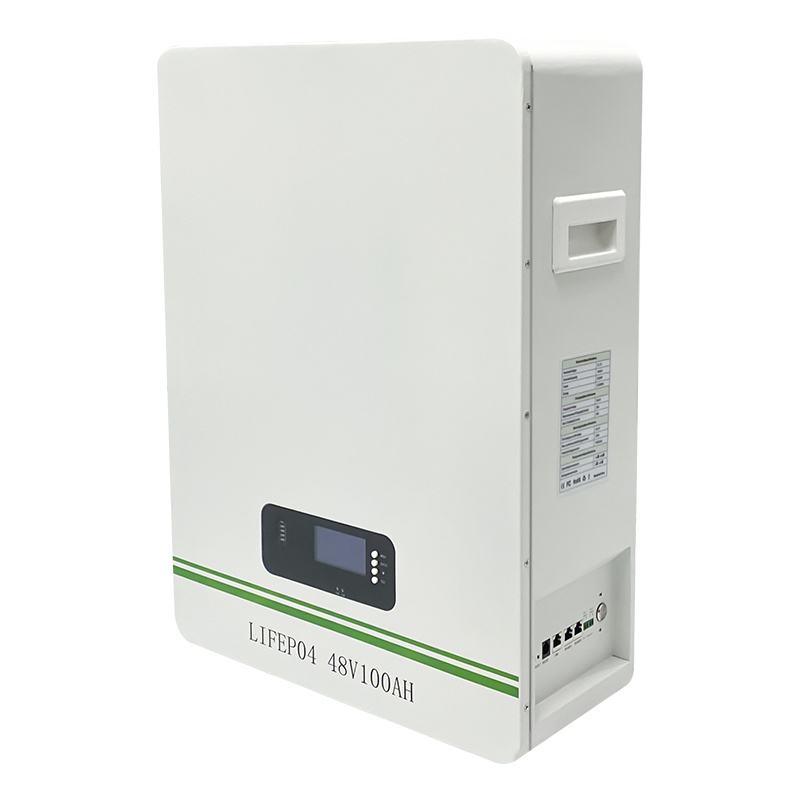

51.2V Power Wall LiFePO4 Energy Storage Battery
Top brand cells such as CATL/BYD , grade A quality
Cells cycle times 6000 cycles, 5 years warranty, 10-15 years life design
Power wall design, space saving design
High density, small size and weight
Big charge and discharge current, suitable for solar storage system
Smart BMS can communicate with Different Brand of Hybrid Solar Inverter
With maximum 1~5A cell equalizer, can balance all cells in short time.
LCD display with communication port(CAN/RS485/RS232) .
All around protectionApplication
Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecommunication
power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on
Data Sheet
|
MODEL
|
JSK-B48502W
|
JSK-B481005W
|
JSK-B4820010W
|
|||
|
SPECIFICATION
|
|
|
|
|||
|
Battery Type
|
LiFePO4
|
|
LiFePO4
|
|||
|
Normal Battery Model
|
51.2V50AH
|
51.2V100AH
|
51.2V200AH
|
|||
|
Normal Capacity(25℃，0.2C）（WH）
|
2056Wh
|
5120Wh
|
10.24KWh
|
|||
|
Voltage window (Vdc)
|
44.8～58.4V
|
|
44.8～58.4V
|
|||
|
Folat Charge Voltage(Vdc)
|
56.0V
|
|
56.0V
|
|||
|
Max.continue discharge current（A）
|
100
|
100
|
100
|
|||
|
Max.pulse discharge current（A）
|
150A 1Sec.
|
150A 1Sec.
|
150A 1Sec.
|
|||
|
Max.continue charge current（A）
|
50
|
50
|
100
|
|||
|
Cycle life(+25℃ 0.2C 100%DOD）
|
＞6000 Cycles
|
|
＞6000 Cycles
|
|||
|
Cell Equalizer Current(A)
|
1~5A Max.
|
|
1~5A Max.
|
|||
|
Terminal
|
M8
|
|
M8
|
|||
|
Storage temperature
|
0℃～30℃
|
|
0℃～30℃
|
|||
|
Storage duration
|
6 months at 25℃
|
|
6 months at 25℃
|
|||
|
Safety standard
|
UN38.3,MSDS,CE
|
|
UN38.3,MSDS,CE
|
|||
|
IP degree
|
IP65
|
|
IP20
|
|||
|
Communication function
|
RS485/CAN(Communication protocol supported inverter brand: Deye, Growatt, Voltronic, GOODWE, VICTRON, PYLONTEC, SMA, SOFAR)
|
|
RS485/CAN(Communication protocol supported inverter brand: Deye, Growatt, Voltronic, GOODWE, VICTRON, PYLONTEC, SMA, SOFAR)
|
|||
|
PROTECTION
|
|
|
|
|||
|
Protection
|
Overcharge protection、Overdischarge protection、Overcurrent protection、
Shortcircuit protection、 Overtemperature protection
|
|
Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、 Overtemperature protection
|
|||
|
AMBIENT
|
|
|
|
|||
|
working Temperature
|
-10℃～+50℃
|
|
|
|||
|
Humidity
|
0~95% ( no condensation)
|
|
|
|||
|
Sea Level(m)
|
≤1500
|
|
|
|||
|
DIMENSION
|
|
|
|
|||
|
L×W×H (products size) mm
|
L786*W455*H181mm
|
|
|
|||
|
L×W×H (package size) mm
|
L851*W537*H245mm
|
|
|
|||
|
Weight(NW Kg)
|
|
|
63.0Kg
|
|||
|
Weight(GW Kg)
|
|
|
66.0Kg
|
|||
