Advantage
1. High purity: SiO2 >99.99%
2. JGS1, JGS2, JGS3
3. Excellent chemical performance for acid resistance and alkali resistance
4. No air bubble no air line
5. High temperature resistance
6. Excellent electrical insulator
7. ISO 9001 Certification
8. We can accept customized according to your requirement.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOYUE
-
Model Number:
-
OEM
-
Color:
-
transparent
-
Type::
-
Clear Quartz Pipe
-
Application::
-
Semiconductor, optical
-
Shape::
-
On both ends of the through Quartz Tube
-
Ozone Content::
-
Ozone Free
-
SIO2::
-
99.99%
-
Processing Service::
-
Bending, Welding, Punching, polishing
-
Density::
-
2.2g/cm3
-
Working temperature::
-
1100℃
-
Surface Treatment::
-
Polished
-
Size::
-
Custom sizes
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Industrial
-
Outside Diameter:
-
15mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HOYUE
-
Model Number:
-
OEM
-
Color:
-
transparent
-
Type::
-
Clear Quartz Pipe
-
Application::
-
Semiconductor, optical
-
Shape::
-
On both ends of the through Quartz Tube
-
Ozone Content::
-
Ozone Free
-
SIO2::
-
99.99%
-
Processing Service::
-
Bending, Welding, Punching, polishing
-
Density::
-
2.2g/cm3
-
Working temperature::
-
1100℃
-
Surface Treatment::
-
Polished
-
Size::
-
Custom sizes
Product Description
|
Purity
|
>99.99%
|
|
Density
|
2.2(g/cm3)
|
|
Degree of hardness Moh' scale
|
6.6
|
|
Melting point
|
1732°C
|
|
Working temperature
|
1100°C
|
|
Max temperature can reach in a short time
|
1450°C
|
|
Acid tolerance
|
30 times than Ceramics , 150 times than Stainless steel
|
|
Visible light transmittance
|
above 93%
|
|
UV spectral region transmittance
|
80%
|
|
Resistance value
|
10000 times than ordinary glass
|
|
Annealing point
|
1215°C
|
|
Softening point
|
1730°C
|

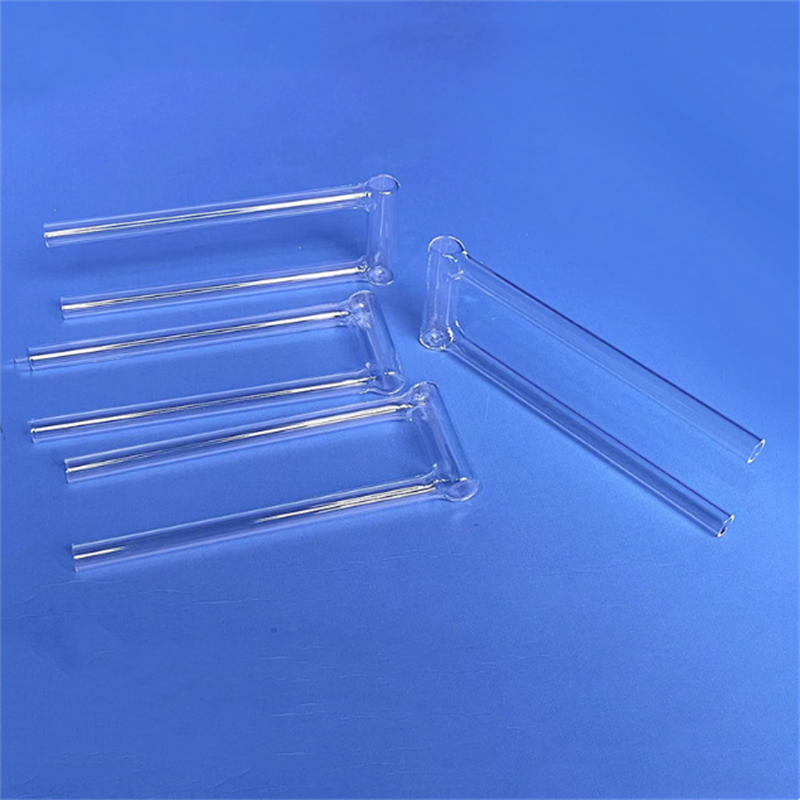

Standard Clear Quartz Tube
The standard clear quartz tube is produced by high purified quartz sand.
The standard clear quartz tube is produced by high purified quartz sand.
It has high purity, strong heat resistance, high
transmission rate, and precise dimension.
The standard clear quartz tube is applicable in many areas like lighting, and heating(halogen lamp, the mercury lamp, single-ended
lamp, automotive lamp, water treatment lamp).
transmission rate, and precise dimension.
The standard clear quartz tube is applicable in many areas like lighting, and heating(halogen lamp, the mercury lamp, single-ended
lamp, automotive lamp, water treatment lamp).
Specification
|
Density
|
2.2x103 kg/m3
|
Hardness
|
5.5 - 6.5 Mohs' Scale 570 KHN 100
|
|
Design Tensile Strength
|
4.8x107 Pa (N/m2) (7000 psi)
|
Design Compressive Strength
|
Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
|
|
Bulk Modulus
|
3.7x1010 Pa (5.3x106 psi)
|
Rigidity Modulus
|
3.1x1010 Pa (4.5x106 psi)
|
|
Softening Point
|
1730°C
|
Annealing Point
|
1215°C
|
