Quick Details
-
Material:
-
ABS
-
Flow Rate:
-
2.83L/min
-
Power:
-
AC 220V 50HZ
-
Size Channel:
-
0.3, 0.5, 1, 3, 5, 10μm
-
Light Source:
-
Laser Diode
-
Certificate:
-
ISO14644, FS209E
-
Size Error:
-
≤±30%
-
Repetition:
-
≤10%FS
-
Maximun size concentration:
-
≤30k/L
-
Standard:
-
JJF1190-2008
-
Operation Manual:
-
Available
Quick Details
-
Brand Name:
-
SX
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
LZJ
-
Material:
-
ABS
-
Flow Rate:
-
2.83L/min
-
Power:
-
AC 220V 50HZ
-
Size Channel:
-
0.3, 0.5, 1, 3, 5, 10μm
-
Light Source:
-
Laser Diode
-
Certificate:
-
ISO14644, FS209E
-
Size Error:
-
≤±30%
-
Repetition:
-
≤10%FS
-
Maximun size concentration:
-
≤30k/L
-
Standard:
-
JJF1190-2008
-
Operation Manual:
-
Available
| Technical Index | |
| Flow Rate | 2.83 L/min |
| Flow rate error | ≤±5% |
| Clean-down Capability | ≤10min |
| Repeatability relative error | ≤±10%FS |
| Size distribution error | 0.5μm 5μm≤±30% |
| Concentration indication error | 0.5μm≤±30% |
| Size Channel | 0.3, 0.5, 1, 3, 5, 10μm |
| Maximum measurable particle concentration | 3*10000/L |
| Power | AC 220V 50HZ |
| Cleanliness Standard | ISO 14644, FS209E, GMP static state, GMP dynamic state |
| Illumination | Laser dioxide (life time longer than 30000 hours) |
| Size | 220 (W)*210 (D)*120(H)mm |
| Weight | 3.8kg |
| Working Condition |
Working condition: 15~35℃, 10-85%RH
Storage condition: -10~50℃, 10-85%RH
|
| Sampling time | (1~99min) self-set |
| Sampling delay | (1~99min) self-set |
| Sampling frequency | 1~99 or continuously |
| Working time | Continuous test for over 6h |
| Counting mode | Accumulative |
| Cleanliness Standard | GB / T6167-2007, JJF 1190-2008 |
| Display | Blue LCD screen |
| Built-in needle printer | |
| Standard accseeories | Power sampling head, tripod, portable protection box, operation instruction, calibration report, printer |

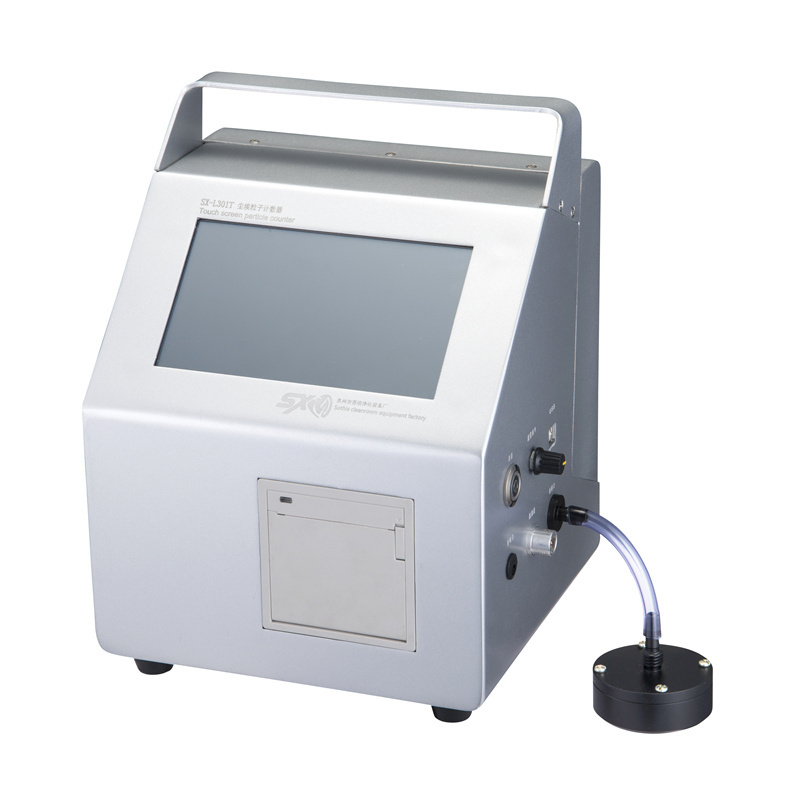

2.83L/min Particle Counter
- Semiconductor laser tube and semiconductor photodiode
- Imported miniature pump
- LCD display
- Light scattering sensor
- Small size, light weight
- Easy operation
Q:Where have you exported your equipment?
A:
We’ve already exported to more than 30 countries in Aisa,Europe,Middle East,Africa,South America.etc.
Q:Can you arrange the visit to your user?Can you customized the machine according to our requirements?
A:
Yes,Of course!
Q:Is your equipment in accordance with GMP, WHO?
A:
Yes,we will design and manufacture the equipment according to the requirement of GMP/WHO in your company.
Q:How about your after sale service?
A:
We will reply you within 24hours by email or phone.
If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem.
Q:How about the staff training?
A:
Normally,we will train your staffs during the installation in your site,you are also welcome to send your staff train in our factory.
Q:How long will the turnkey project take?
A:
About 1 year from designing the layout to finish installation and commissioning.
Q:Which kind of after-sales service you can offer?
A:
Except the regular service ,we can also provide you know-how transfer,and dispatch our qualified engineers to help you run the factory up to 6-12 months.
