Quick Details
-
Max. Lifting Height:
-
6 meter, as required
-
Span:
-
6 meter, as required, 2-10m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maxload
-
Weight (KG):
-
300 kg
-
Model:
-
BZD500KG
-
Max. Lifting Load:
-
625 kgs
-
Operating:
-
manual or electrical operated
-
Color:
-
Orange
-
Product name:
-
slewing cantilever wall mounted jib crane
Quick Details
-
Application:
-
Workshop, material handling
-
Rated Loading Capacity:
-
500kg, 500 kgs
-
Rated Lifting Moment:
-
4900 N.m
-
Max. Lifting Height:
-
6 meter, as required
-
Span:
-
6 meter, as required, 2-10m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Maxload
-
Weight (KG):
-
300 kg
-
Model:
-
BZD500KG
-
Max. Lifting Load:
-
625 kgs
-
Operating:
-
manual or electrical operated
-
Color:
-
Orange
-
Product name:
-
slewing cantilever wall mounted jib crane
Welcome to Shanghai Maxload Cranes & Hoists Co.,Ltd
Product Description

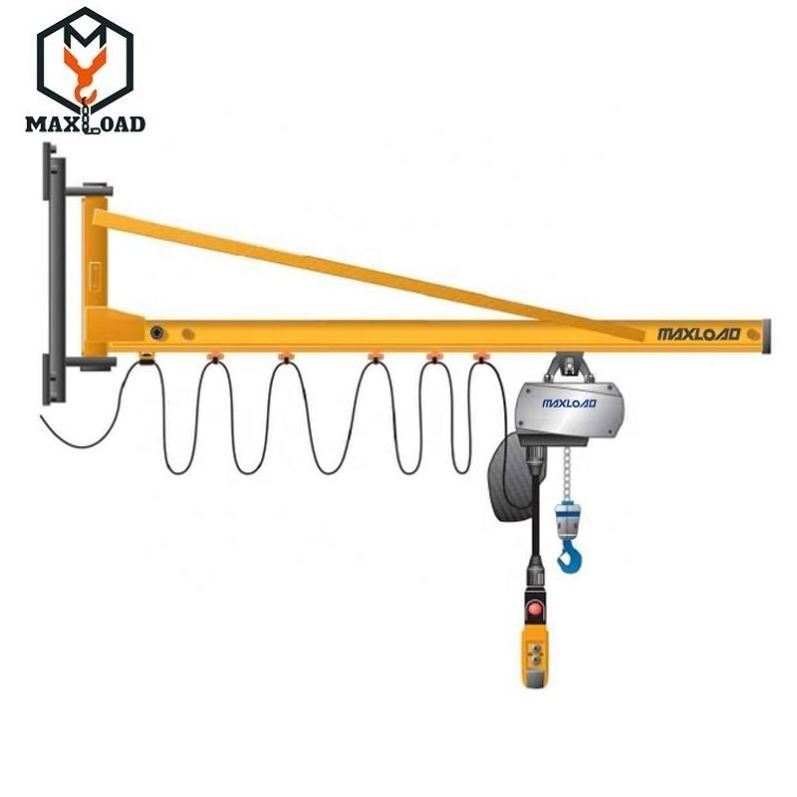

0.5 ton Wall Type JIB Cranes
JIB Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.
Specifications:
| Capacity(KG) | 125 KG | 250 KG | 500KG | 1000 KG |
| Model | BXK125KG | BXK250KG | BXK500KG | BXK1000KG |
| Beam Material | Enclosed Track | Enclosed Track | Enclosed Track | Enclosed Track |
| Travelling Type | Manual | Manual | Manual | Electrical or Manual |
| Revolving Type | Manual | Manual | Manual | Electrical or Manual |
| Revolving Radius | 2m - 6m | 2m - 6m | 2m - 6m | 2m - 6m |
| Lifting Height | 2m - 5m | 2m - 5m | 2m - 5m | 2m - 5m |
| Total Height | 2m - 6m | 2m - 6m | 2m - 6m | 2m - 6m |
| Revolving Angle | 270° | 270° | 270° | 270° |
| Lifting Speeed | 8/2 m/min | 8/2 m/min | 8/2 m/min | 4/2 m/min |
