Quick Details
-
Power:
-
80kw
-
Weight:
-
1500kg
-
Dimension(L*W*H):
-
25000*1500*2200
-
Warranty:
-
One Year
-
Function:
-
Aniaml Feed Puffed Pellet Machine
-
Color:
-
Blue and Yellow
-
Advantage:
-
High Capacity
-
Output:
-
0.35-0.40t/h
-
Main Power:
-
22-30 KW
-
Feeding Power:
-
11 KW
-
Modulating Power:
-
1.5 KW
-
Raw material:
-
Flour,corn meal,soybean meal,maize meal
-
Name:
-
Floating Fish Feed Pellet Machine
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hanson
-
Voltage:
-
380V/50HZ
-
Power:
-
80kw
-
Weight:
-
1500kg
-
Dimension(L*W*H):
-
25000*1500*2200
-
Warranty:
-
One Year
-
Function:
-
Aniaml Feed Puffed Pellet Machine
-
Color:
-
Blue and Yellow
-
Advantage:
-
High Capacity
-
Output:
-
0.35-0.40t/h
-
Main Power:
-
22-30 KW
-
Feeding Power:
-
11 KW
-
Modulating Power:
-
1.5 KW
-
Raw material:
-
Flour,corn meal,soybean meal,maize meal
-
Name:
-
Floating Fish Feed Pellet Machine
-
Certification:
-
CE ISO9001

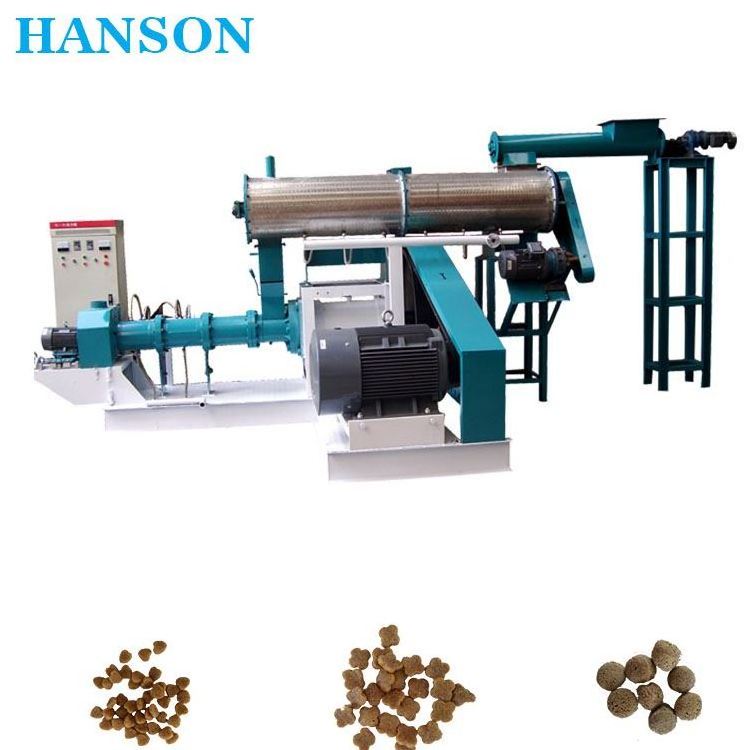

Food Extruder Machine Animal Pet Pellet Fish Meal Poultry Feed Production Line
Fish Feed Production line Introduction
1.The whole fish feed production line including Crusher-Mixer-Fish feed machine-Dryer-Cooler-Oil spray machine-Packing machine.
2.The line min.capacity is 30-40 kg/h,max.capacity is 3-4 t/h.
3.The whole line is proper for medium or large farm,factory.
4.The line can use to make floating or sinking fish feed,pet feed,chicken feed etc.
Food Extruder Machine Animal Pet Pellet Fish Meal Poultry Feed Production Line
|
Model |
Screw diameter |
Capacity |
Main power |
Feeding power |
Cutting power |
Conditioning power |
|
DSP60 |
φ60mm |
180-200kg/h |
15kw |
0.75kw |
0.75kw |
0.37kw |
|
DSP70 |
φ70mm |
250-300kg/h |
18.5kw |
0.75kw |
0.75kw |
1.5kw |
|
DSP80 |
φ80mm |
350-400kg/h |
22kw |
1.1kw |
0.75kw |
1.5kw |
|
DSP90 |
φ90mm |
500-600kg/h |
37kw |
1.1kw |
1.1kw |
2.2kw |
|
DSP120 |
φ120mm |
700-800kg/h |
55kw |
1.1kw |
1.1kw |
2.2kw |
|
DSP135 |
φ133mm |
1000-1500kg/h |
75kw |
1.5kw |
2.2kw |
2.2kw |
|
DSP160 |
φ155mm |
1800-2500kg/h |
90kw |
2.2kw |
2.2kw |
3.5kw |
|
DSP200 |
φ195mm |
3000-4000kg/h |
132kw |
2.2kw |
3.0kw |
4.5kw |
Detailed Description of Fish Feed Production Line Machines
1. Crusher
The crusher machine is mainly used for grinding the raw materials like soybean,maize etc.
2. Mixer
The mixer machine is mainly be used to mix all kinds of raw material evenly, such as wheat meal, corn meal,sorghum meal,bone meal,meat meal and so on,it also can mix other micro- ingredients such as vitamins, amino acids, trace elements and other feed additives.
The machine is widely used for process all kinds of grains into high-grade aquatic floating feed pellet for fish,catfish,shrimps,crab.
4. Pellet dryer
The dryer can lower the temperature and moisture content of the feed pellet.
The cooler is adopting the counter-flow cooling principle,it can reduce the high temperature and moisture content,for large capacity fish feed production line,this is an necessary machine.For small capacity,the pellet can cool naturally.
The oil spray machine is use to spray oil onto the surface of the feed pellet.First the smell can attract the fish to eat the pellet.Second it is better for storage.
The packing machine can packing the finished feed pellet into bags,and 1-50kg per bag,thus it is more convenient for storage and transport.The process including filling,weighing,sealing.
Food Extruder Machine Animal Pet Pellet Fish Meal Poultry Feed Production Line
1. According to different purposes, you can choose aquatic particles and pets, animal particles.
2. According to different animals, as well as different stages of growth, you can choose different sizes, different types of particles.
Food Extruder Machine Animal Pet Pellet Fish Meal Poultry Feed Production Line
