Quick Details
-
Brand Name:
-
NEWLD
-
Product Name:
-
Customized Steerable Agv Transfer Cart
-
Key Words:
-
agv transfer cart
-
Application:
-
Industrial Filed,Warehouse;Workshop; Port...
-
Color:
-
Customized
-
Capacity:
-
1-500 ton for agv transfer cart
-
Certificates:
-
CE ISO SGS
-
Running speed:
-
0-30m/min
-
Power supply:
-
Battery
-
Advantage:
-
Flexible turning; low cost with professional manufacturing
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWLD
-
Product Name:
-
Customized Steerable Agv Transfer Cart
-
Key Words:
-
agv transfer cart
-
Application:
-
Industrial Filed,Warehouse;Workshop; Port...
-
Color:
-
Customized
-
Capacity:
-
1-500 ton for agv transfer cart
-
Certificates:
-
CE ISO SGS
-
Running speed:
-
0-30m/min
-
Power supply:
-
Battery
-
Advantage:
-
Flexible turning; low cost with professional manufacturing
Product Description

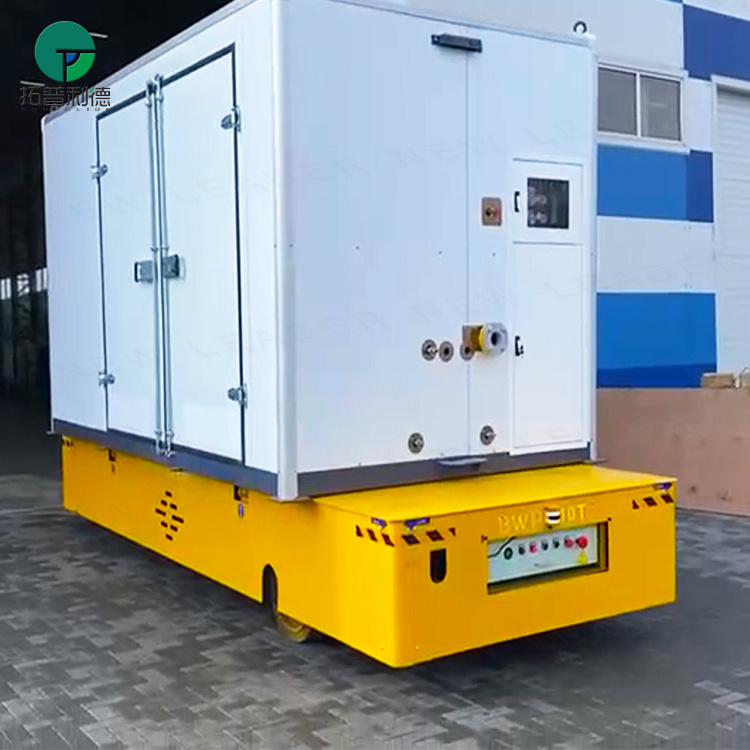

Customized Steerable Agv Transfer Cart
The battery powered cart is a kind of handling system in transfer cart. It is powered by battery and can turn with 360 degree.The speed is 0-15m/min, start steadily and gradually accelerate to ensure the cargo transportation safety. It runs on plane floor in the bay of factory. Easy to operate and be convenient to use. No running distance limitation and don't need rails.
The steel part handling trailer is mainly applied in assembly line (ring production line, loop production line), metallurgy
industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure),construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (poly crystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort), etc.
industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure),construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (poly crystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort), etc.
Parts Details
Product Parameters
|
Model
|
|
BWP-5T
|
BWP-15T
|
BWP-30T
|
BWP-50T
|
BWP-70T
|
BWP-100
|
|
|
Rated load(t)
|
|
5
|
15
|
30
|
50
|
70
|
100
|
|
|
Table Size
|
Length(L)
|
2200
|
2400
|
3500
|
5500
|
6000
|
6600
|
|
|
|
Width(W)
|
2000
|
2100
|
2200
|
2600
|
2600
|
3000
|
|
|
|
Heigth(H)
|
500
|
600
|
700
|
800
|
900
|
1200
|
|
|
Wheel Base(mm)
|
|
1650
|
1600
|
1650
|
2000
|
1850
|
2000
|
|
|
Axle Base(mm)
|
|
1680
|
1830
|
2700
|
2850
|
3500
|
4000
|
|
|
Wheel Dia.(mm)
|
|
Φ300
|
Φ400
|
Φ450
|
Φ600
|
Φ600
|
Φ600
|
|
|
Wheel Quantity(pcs）
|
|
4
|
4
|
4
|
4
|
6
|
8
|
|
|
Ground Clearance(mm)
|
|
50
|
50
|
50
|
50
|
75
|
75
|
|
|
Running Speed(mm)
|
|
0-25
|
0-20
|
0-20
|
0-20
|
0-20
|
0-18
|
|
|
Motor Power(kw）
|
|
2*1.5
|
2*3.5
|
2*5.5
|
2*7.5
|
2*12
|
40
|
|
|
Batter Capacity(Ah)
|
|
180
|
330
|
450
|
500
|
600
|
1000
|
|
|
Battery Voltage(V）
|
|
48
|
48
|
48
|
72
|
72
|
72
|
|
|
Running Time When Full Load
|
|
2.88
|
2.3
|
2
|
2.5
|
1.8
|
1.9
|
|
|
Running Distance for One Charge(Km)
|
|
3.5
|
2.8
|
2.4
|
3
|
2.2
|
2.3
|
|
|
Max Wheel load(KN)
|
|
25.8
|
64.5
|
110.4
|
174
|
152
|
190
|
|
|
Reference Wight(t)
|
|
3.6
|
5.5
|
6.8
|
8
|
12.8
|
26.8
|
|
Support Customized
Working Principle
