Quick Details
-
Dimension(L*W*H):
-
2000*3100*1600mm
-
Weight (KG):
-
980
-
Repeatability (X/Y/Z) (mm):
-
±0.02
-
Positioning Accuracy (mm):
-
0.02 mm
-
Spindle Power (kW):
-
3.2
-
X/Y axis:
-
20/25 rail
-
Z axis:
-
High precision imported ball screw
-
Principal axis:
-
Power 3.0kw water cooling speed 6000-24000r/min
-
Support format:
-
BMP,PLT,AI,CDR,DXF / BMP,PLT,AI,CDR,DXF
-
Operating system:
-
Standard Weihong system
-
Type:
-
woodworking machinery parts
-
Machine name:
-
mini cnc milling machine
-
Function:
-
wood engraving machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 r.p.m
-
Brand Name:
-
Songli
-
Dimension(L*W*H):
-
2000*3100*1600mm
-
Weight (KG):
-
980
-
Repeatability (X/Y/Z) (mm):
-
±0.02
-
Positioning Accuracy (mm):
-
0.02 mm
-
Spindle Power (kW):
-
3.2
-
X/Y axis:
-
20/25 rail
-
Z axis:
-
High precision imported ball screw
-
Principal axis:
-
Power 3.0kw water cooling speed 6000-24000r/min
-
Support format:
-
BMP,PLT,AI,CDR,DXF / BMP,PLT,AI,CDR,DXF
-
Operating system:
-
Standard Weihong system
-
Type:
-
woodworking machinery parts
-
Machine name:
-
mini cnc milling machine
-
Function:
-
wood engraving machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
|

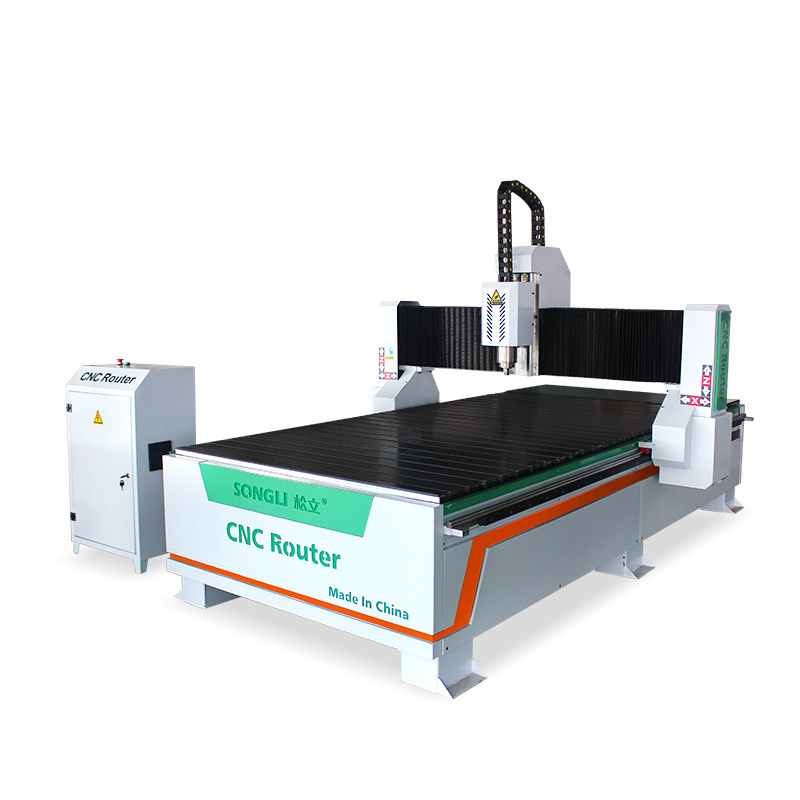

SONGLI CNC 1325 WOODWORKING MACHINES |
|||
|
Type |
Product name |
1325 Outside span of rotation axis Woodworking Engraving Machine |
|
|
Power |
3.2KW |
3.2KW/2.2KW |
|
|
Working Voltage |
220V/380V |
50/60HZ |
|
|
Main performance parameters |
Maching precision |
±0.03mm |
±0.01mm |
|
Processing area |
1300mm*2500mm |
accept custom |
|
|
XYZ stroke |
1300*2500*200mm |
Z axis can be increased to 300mm |
|
|
System |
System environment |
Windows XP/Win7/8 |
4G + memory,32 bits |
|
Operation mode |
Stepper motor |
Marking 450b motor |
|
|
Operating system |
Ncstudio system |
Type 86 Driver |
|
· All our machines will be thoroughly inspected and tested by our quality control department before shipment.
· Lifelong free technical maintenance and spare parts supply.
· Free training. Our engineers can speak English.
· 24-hour technical support.
· We will provide you with "instruction book", "operation manual" and "training video". This is easy to understand.
· We will also provide online face-to-face training, from our dedicated software, our engineers can control computers and machines, step by step to show you.
