New 2023 model sweater collar cuff scarf carpet universal flat knitting machine flat knit Professional and Full Jacquard

New 2023 model sweater collar cuff scarf carpet universal flat knitting machine flat knit Professional and Full Jacquard

FOB Reference Price: Get Latest Price

≥1 Sets

US $5800

≥4 Sets

US $5700

≥8 Sets

US $5600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Knitting Method:: Single-Double

Computerized:: Yes

Gauge:: 12 GG, 14 GG, 16 GG, 10GG, 18GG

Knitting width:: 52 inch

Place of Origin:: Jiangsu, China

Power:: 900 W, Double system

Weight:: 700 KG

Dimension(L*W*H):: 2.5*1.1*1.8 meter

Sinker system:: Without sinker

Frequency:: 50HZ/60HZ 1.5kVA

Product Name:: Automatic computerized flat knitting machine/single/double system

Drive System:: Belt drive. AC servo motor. No lubrication necessary.

Size:: single head:52-120inch/double head:80-120inch(1+1)

Quick Details

Type:: jacquard

Production Capacity:: Collar knitting speed: 3-10 minutes/PC

Knitting Style:: Flat

Knitting Method:: Single-Double

Computerized:: Yes

Gauge:: 12 GG, 14 GG, 16 GG, 10GG, 18GG

Knitting width:: 52 inch

Place of Origin:: Jiangsu, China

Power:: 900 W, Double system

Weight:: 700 KG

Dimension(L*W*H):: 2.5*1.1*1.8 meter

Sinker system:: Without sinker

Frequency:: 50HZ/60HZ 1.5kVA

Product Name:: Automatic computerized flat knitting machine/single/double system

Drive System:: Belt drive. AC servo motor. No lubrication necessary.

Size:: single head:52-120inch/double head:80-120inch(1+1)

Product Overview

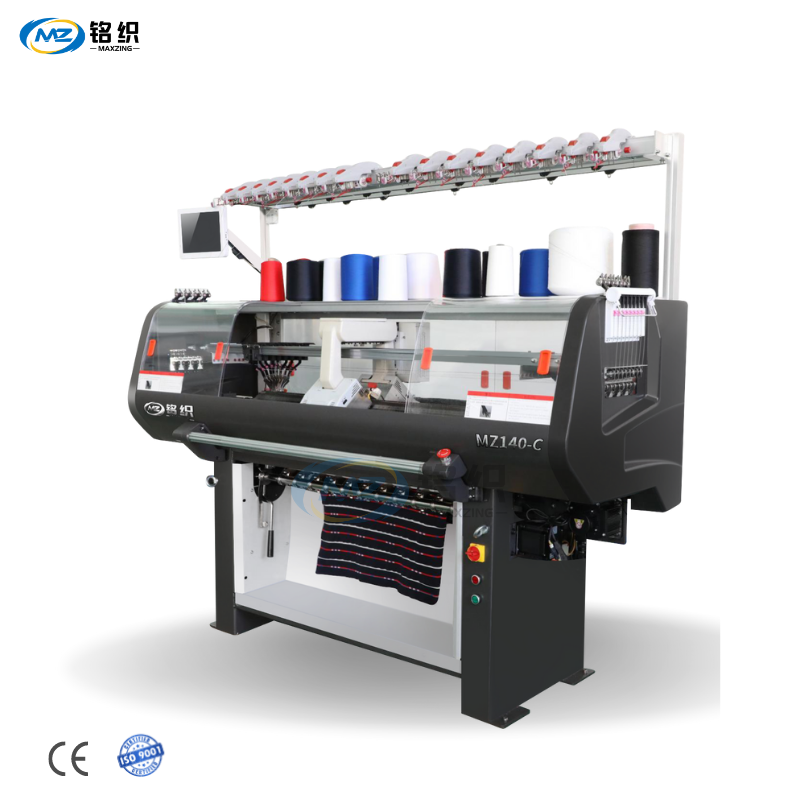

MaxZing Professional Collar/cuff machine

MaxZing Professional Collar/cuff machine, The main features are as follows:

① All iron materials use the tempering process, the machine can be used for 10 years without deformation

② CAM, needle bed using high quality material

③ The machine uses high-quality manufacturing methods, and the manufactured fabrics are smooth and supple

Quality is the most important!!!

FEATURES AT A GLANCE

High Speed system

Fully automatic jacquard system

4 rails, 8 yarn feeders

Mini CAM

SK5 material needle bed

Wide guage

super finishing

Machine Detail

No	Item	Data
1	Machine system	HENGQIANG , MAIHONG , RAYNENG
2	Machine size	36Inch\ 52Inch \60Inch \72Inch\ 80Inch \100Inch \120Inch
3	Knitting function	knitting single or double jersey,full needles,irregular jacquard,intarsia,cables,pointel fabirc
4	Data input	USB memory interface.
5	Control unit	Built-in controller. Stored program for flat knitting machine.
6	Back-up power	Power supply for resuming knitting after power failure.
7	Power	AC 220V/380V FREQUENCY:50HZ/60HZ 1.5kVA
8	PACKING SIZE	2.551.11.8 meter 980KG

Full jacquard knitting collar machine


Single system	40/52/60/66/72/80/100 Inch	10G/12G/14G/16G/18G
Double system	40/52/60/66/72/80/100 Inch
Three system	40/52/60/66/72/80/100 Inch
1+1 system	60/72/80/100 Inch
2+2 system	72/80/100 Inch
3+3system	72/80/100 Inch

Mini knitting CAM

MaxZing's collar loom uses a smaller carry, with a minimum of 10cm. It has higher weaving efficiency and better turning distance.

Knitting CAM is processed by finishing technology with high precision. The woven collar is flatter and the pattern is more beautiful.

Knitting Bed

Insert needle machine and slot milling needle machine can be selected as required

① The needle bed is made of German steel ② Ultra high precision processing technology is used, and the precision reaches 0.02 ③ The needle bed is treated by special process, and will not deform even if it is used for 10 years

Full touch display CNC system

The machine is controlled by numerical control system, fully automatic system, reducing manual use

Machine system

Using high-speed system, the maximum knitting speed of the machine head is 1.7 m/s, with the highest speed machine in China.

The system supports English, Russian, Spanish, Turkish, Arabic, French and other national languages.

The system supports SHIMA and STOLL, HENGQIANG, RAYNENG pattern program direct input without any changes

Yarn smooth conveying device

The device is used in conjunction with the roller yarn feeder to make the yarn input smoother and reduce resistance

Side yarn input device

8-channel yarn input device

Yarn break alarm sensor

The device is mainly used for spandex yarn breakage alarm

4 rails and 8 yarn feeders

①The machine uses 4 yarn feeder guide rails, not 3 ②has higher intarsia efficiency ③The machine is equipped with 8 yarn feeders as standard ④Support up to 32 colors of intarsia

Controlled sub-roller

Assistance to Sinker system

1/ 4 left and right presser feet work simultaneously
2/Use ultra-high speed motor
3/ Part of the pattern can achieve zero waste yarn function
4/ Can be used for sweaters, hats, scarves, vamp knitting

Needle impact sensor

Yarn Roller

Fault alarm buzzer

Maxzing Factory

The company integrates production, training, accommodation (customers), display, and office. It is the only factory in China that uses assembly lines to produce computerized flat knitting machines.

Packaging And Deliver

Anti-rust treatment

Pack in wooden box

Packed wooden box

Contact

Wechat	+86 15895593937
Whatsapp	+86 15895593937
Mail	AX-LEE@139.COM
QQ	1061080077
Web	www.textil100.com

FAQ

Q: How to buy the machine?

A: Please contact the sales manager, after getting an accurate quotation, you can purchase through credit guarantee orders

Q: About after-sales service? A: We provide a one-year warranty for each machine (starting from the date of receipt), as well as online technical guidance and online design services. If necessary, we can send technicians to install, teach, debug, etc.

Q: After-sales technician dispatch charge standard

A: Air ticket + salary + visa fee

Q: What type of machine we have?

A: We have single system, double system, triple system, all models of computerized flat knitting machines, the size includes 36-120
inches
