Quick Details
-
Brand Name:
-
BT-PON
-
Brand:
-
BT-713XR
-
Application:
-
FTTH FTTB FTTX Network
-
XPON:
-
4GE+ac onu+1USB+CATV
-
Package Size:
-
20.5 *14 *3cm
-
Power adapter input:
-
100V~240V AC,50Hz~60Hz
-
Net weight:
-
300g
-
Operating Temperature:
-
-5°-- 45°
-
Ambient Humidity:
-
10%-95%
-
Power consumption:
-
<10w
-
Power supply:
-
12V DC,1.5A
Quick Details
-
Type:
-
ONU
-
Model Number:
-
BT-713XR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BT-PON
-
Brand:
-
BT-713XR
-
Application:
-
FTTH FTTB FTTX Network
-
XPON:
-
4GE+ac onu+1USB+CATV
-
Package Size:
-
20.5 *14 *3cm
-
Power adapter input:
-
100V~240V AC,50Hz~60Hz
-
Net weight:
-
300g
-
Operating Temperature:
-
-5°-- 45°
-
Ambient Humidity:
-
10%-95%
-
Power consumption:
-
<10w
-
Power supply:
-
12V DC,1.5A
Product Description
Our company offer
OEM OR ODM
service, any details please kindly send us inquiries,thanks.

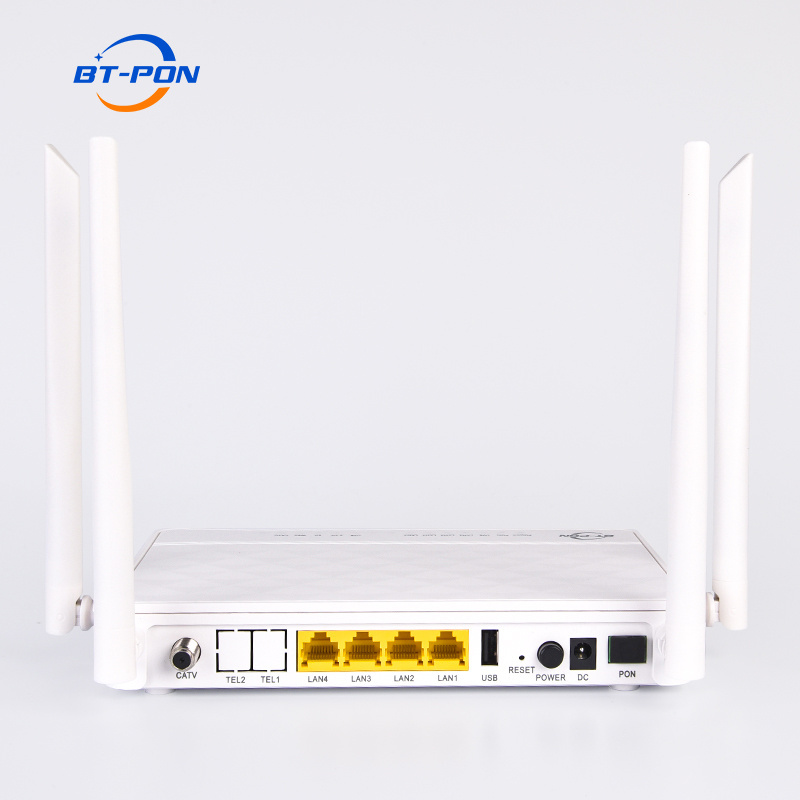

Bt-713Xr 2.4G Y 5G Dual Band Wifi Gpon Xpon 5G Ont Catv Onu
BT-713XR
model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
BT-713XR
is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Company Introduction
BT-PON has more than 10 years experience in fiber optical equipment industry since 2008. We're specializing in research and development of FTTX solution, especially in ONU and OLT technology. OEM & ODM are available.Our products cover G/EPON ONU/OLT,EOC, POE switch and other FTTX project equipment so on. Products have exported to more than 20 countries and regions around the world.
Specification
|
Product Specification
|
value
|
|
|
Hardware Specifications
|
|
|
|
Size（L*W*H）
|
205mm (L) *140mm (W) *30mm (H)
|
|
|
Optical signal access
|
1*GPON/EPON
|
|
|
User interface
|
4GE+2.4G/5.8G WLAN+1USB+CATV
|
|
|
Indicator light
|
POWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、USB、2.4G、5G、WPS、CATV
|
|
|
Button
|
Power switch Button, Reset Button, WLAN Button, WPS Button
|
|
|
Weight
|
300g
|
|
|
Power adapter input
|
100V～240V AC，50Hz～60Hz
|
|
|
PowerSupply requirement
|
12V DC，1.5A
|
|
|
Power consumption
|
<10w
|
|
|
Working temperature
|
-10°C ~ +45°C
|
|
|
Environment humidity
|
5% ~ 95% (Non-condensing)
|
|
|
PON Interface
|
|
|
|
Module type
|
SC/APC
|
|
|
Working wavelength
|
PON：up 1310nm，down 1490nm ；CATV：1550nm
|
|
|
TX Optical power value
|
0.5～4dBm
|
|
|
RX Optical power value
|
-27dBm
|
|
|
Transmission distance
|
0～20km
|
|
|
Transmission rate
|
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps |
|
|
Ethernet interface
|
|
|
|
Interface type
|
4* RJ45
|
|
|
Interface parameters
|
4*10/100/1000Mbps auto adaptive Ethernet interfaces
|
|
|
Wireless
|
|
|
|
Working mode
|
IEEE 802.11 b/g/n/AC
|
|
|
Antenna pattern
|
External 2*2T2R External antenna
|
|
|
Antenna gain
|
5dBi
|
|
|
Wireless bandwidth
|
Support 20MHz/40MHz/80MHz
|
|
|
Interface rate
|
2.4G WLAN：Maximum rate 300Mbps
5.8G WLAN：Maximum rate 866Mbps |
|
|
SSID
|
Up to 4 SSID broadcasts are supported
|
|
|
CATV Interface
|
|
|
|
Optical receiving wavelength
|
1550±10nm
|
|
|
Optical reflection loss
|
≥45dBm
|
|
|
RF, WDM, optical power
|
+2~-15dBm
|
|
|
RF frequency range
|
47~1000MHz, RF output impedance: 75Ω
|
|
|
RF output level
|
78dBuV
|
|
|
AGC range
|
0~-12dBm
|
|
|
MER
|
≥32dB@-15dBm
|
|
