Quick Details
-
Brand Name:
-
Tiangxiang
-
Model Number:
-
YTK-18H
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
60MPa
-
IP level:
-
IP65
-
Connection (F):
-
M20x1.5
-
Weight Kg:
-
0.85 kgs
-
Product name:
-
pressure switch
-
Repeatablity Error::
-
≤2.5%
-
Working Viscosity::
-
<1x10-3m2/s
-
sensor:
-
r piston type and diaphragm type combination
-
Type:
-
YTK-18H
-
Media:
-
Air Water Oil Refrigerating Fluid
-
WARRANTY:
-
1 Year
-
Pressure range:
-
0.3 to 40 Mpa
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tiangxiang
-
Model Number:
-
YTK-18H
-
Max. Current:
-
6A
-
Max. Working Pressure:
-
60MPa
-
IP level:
-
IP65
-
Connection (F):
-
M20x1.5
-
Weight Kg:
-
0.85 kgs
-
Product name:
-
pressure switch
-
Repeatablity Error::
-
≤2.5%
-
Working Viscosity::
-
<1x10-3m2/s
-
sensor:
-
r piston type and diaphragm type combination
-
Type:
-
YTK-18H
-
Media:
-
Air Water Oil Refrigerating Fluid
-
WARRANTY:
-
1 Year
-
Pressure range:
-
0.3 to 40 Mpa
Product Description
The sensor of the switch is piston type and diaphragm type combination. Can be used to control the compressed air which contains oil mist and other gas which contains oil mist which will not exert corrosion to sensor material and hydraulic oil, water-oil mixture corrisve liquid and neutrial liquid medium with good lubricating property. the Set Point is adjustable ,the adjustable range is from 0.3 to 40 Mpa

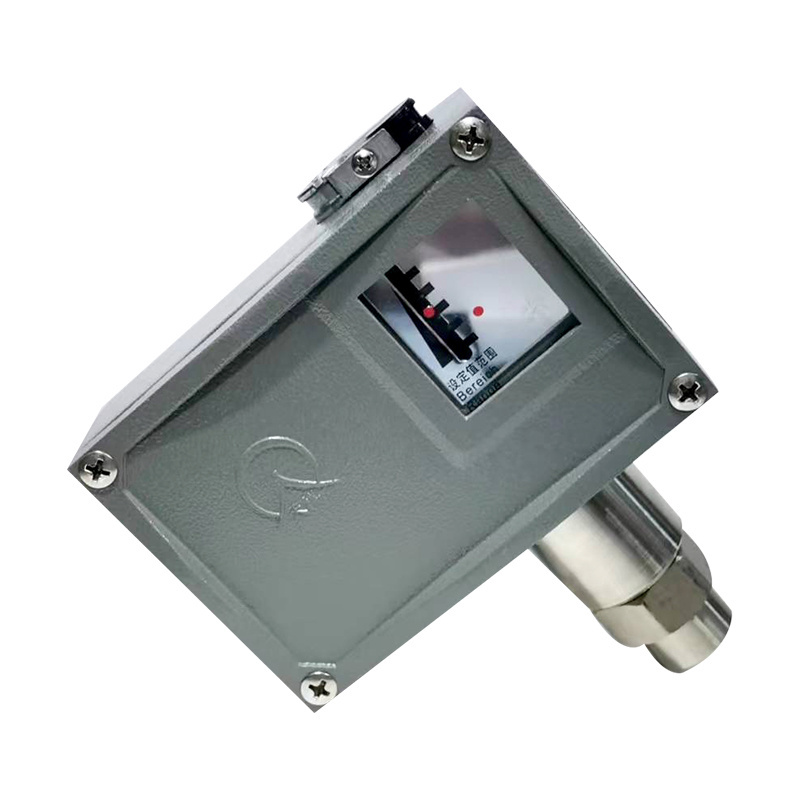

YTK-18H High Pressure Switches
YTK-18H Explosion-proof High Pressure Switches
Specification
|
YTK-18H Pressure Switch
|
|
|
|
|
General Type
|
Explosion-proof Type
|
|
Working Viscosity:
|
＜1x10-3m2/s
|
＜1x10-3m2/s
|
|
Switching Elements:
|
Microswitches
|
Sealed Switches
|
|
Explosion Class
|
|
Exed II CT4~T6 Certificate No. GYB04396X
|
|
Protection Class of Enclosure:
|
with slot sealing ring IP54, O-ring, IP65 (accord with DIN40050)
|
with slot sealing ring IP54, O-ring, IP65 (accord with DIN40050)
|
|
|
|
|
|
Ambient temperature:：
|
-20℃~40℃
|
-20℃~40℃
|
|
Medium Temperature:
|
0~100℃
|
0~120℃
|
|
Mounting Position:
|
Pressure connection vertically downward (15 inclination is allowable)
|
Pressure connection vertically downward
|
|
|
|
|
|
Anti-Vibration:
|
Max, 40m/s2
|
Max. 20m/s2
|
|
Repeatablity Error:
|
≤2.5%
|
≤2.5%
|
|
Electrical rating :
|
AC 220V ,6A(Resistance)
|
DC 250V ,0.25A(Resistance), 60W max.
|
|
|
|
AC 250V ,5A(Resistance),1250VA max.
|
Selection table
|
YTK-18H Dead Band Non-adjustable
|
|
|
|
|
|
|
|
|
|
||||
|
Set Point Adjustable Range Mpa
|
Dead Band No Greater Than
|
|
Max. allowable Pressure Mpa
|
Switching frequency Time/min.
|
Material of Sensor
|
|
|
Order Content No
|
|
||||
|
|
Set Point Range Lower Limit Mpa
|
Set Point Rang Upper Limit Mpa
|
|
|
Shell
|
Diphragm
|
Piston
|
|
|
||||
|
|
|
|
|
|
|
|
|
Typical
|
Explosion-proof Type
|
||||
|
0.03...4
|
0.5
|
0.9
|
30
|
20
|
Brass
|
fluorine-rubber
|
Steel
|
0916500
|
0956580
|
||||
|
0.5...6.3
|
0.6
|
1.3
|
|
|
|
|
|
0916600
|
0956680
|
||||
|
0.5...10
|
0.6
|
1.6
|
|
|
|
|
|
0916700
|
0956780
|
||||
|
0.5...16
|
0.7
|
1.9
|
|
|
|
|
|
0916800
|
0956880
|
||||
|
1…...25
|
1
|
2.5
|
|
30
|
|
|
|
0916919
|
0956989
|
||||
|
1…...40
|
1.2
|
2.8
|
60
|
|
|
|
|
0916900
|
0956980
|
||||
|
YTK-18H Dead Band Adjustable
|
|
|
|
|
|
|
|
|
|
||||
|
Set Point Adjustable Range Mpa
|
Dead Band No Greater Than
|
|
Max. allowable Pressure Mpa
|
Switching frequency Time/min.
|
Material of Sensor
|
|
|
Order Content No
|
|
||||
|
|
Set Point Range Lower Limit Mpa
|
Set Point Rang Upper Limit Mpa
|
|
|
Shell
|
Diphragm
|
Piston
|
|
|
||||
|
|
|
|
|
|
|
|
|
Typical
|
Explosion-proof Type
|
||||
|
0.03...4
|
0.8….2.5
|
1.3…2.5
|
30
|
20
|
Brass
|
fluorine-rubber
|
Steel
|
0906500
|
0946580
|
||||
|
0.5...6.3
|
1….4
|
1.6…4
|
|
|
|
|
|
0906600
|
0946680
|
||||
|
0.5...10
|
1.1…8
|
1.6…8
|
|
|
|
|
|
0909700
|
0946780
|
||||
|
0.5...16
|
1.3…12
|
2.2…12
|
|
|
|
|
|
0909800
|
0946880
|
||||
|
1…...25
|
1.4…12
|
2.8…12
|
|
30
|
|
|
|
0906919
|
0946989
|
||||
|
1…...40
|
2…30
|
4…30
|
60
|
|
|
|
|
0906900
|
0946980
|
||||
