Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Free spare parts
-
Brand Name:
-
SHACMAN
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
5200*2300*1350mm
-
Cargo Tank Dimension:
-
5200*2300*1350mm
-
Product name:
-
Dump truck
-
Engine:
-
Weichai Engine
-
Driving type:
-
LHD RHD
-
Transmission:
-
Fast F9,F10,F12 series
-
Front axle:
-
9t Axle
-
Cabin:
-
Comfortable Cabin
-
Wheel base:
-
3775+1440
-
Capacity (Load):
-
61 - 70t
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Free spare parts
-
Brand Name:
-
SHACMAN
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
5200*2300*1350mm
-
Cargo Tank Dimension:
-
5200*2300*1350mm
-
Product name:
-
Dump truck
-
Engine:
-
Weichai Engine
-
Driving type:
-
LHD RHD
-
Transmission:
-
Fast F9,F10,F12 series
-
Front axle:
-
9t Axle
-
Cabin:
-
Comfortable Cabin
-
Wheel base:
-
3775+1440
-
Capacity (Load):
-
61 - 70t
Product Overview

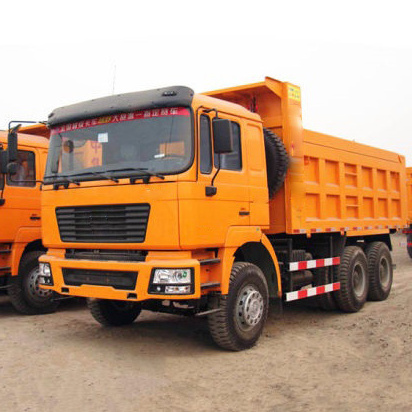

Shacman F2000 25 Ton 6*4 10 Wheels Price New Dump Tipper Truck Algeria
The F2000 series heavy duty trucks, with over 30 years of reputation, perfect for even the most difficult tasks, bring
unprecedented values to its users.
unprecedented values to its users.
PRODUCT SPECIFICATIONS
|
SHACMAN F2000 6×4 DUMP TRUCK
|
|
|
|
Cab
|
MAN F2000 Cab Single bed Air conditioner
|
|
|
Dimension(Lx W xH)(mm)
|
8275×2500×3450mm
|
|
|
Total mass(kg)
|
25000kg
|
|
|
Kerb mass(kg)
|
11200kg
|
|
|
Rated mass(kg)
|
13670kg
|
|
|
Payload(kg)
|
25000kg
|
|
|
Approach / departure angel
|
16/66
|
|
|
Front/rear suspension(mm)
|
1525/1600
|
|
|
Max. gradeability (%)
|
28
|
|
|
Engine brand
|
Weichai Engine
|
|
|
Engine model
|
WP10.290E32,290hp
|
|
|
Rated output power
|
213kw
|
|
|
Torque(N.m r. p. m)
|
1160N.m/1200-1600rpm
|
|
|
Rated speed(rpm)
|
2200rpm
|
|
|
Emission Standard
|
E-II
|
|
|
Displacement(L)
|
9.726L
|
|
|
Driving type
|
6×4
|
|
|
Axle number
|
3
|
|
|
Wheel base(mm)
|
3775+1400mm
|
|
|
Clutch
|
φ430 diaphragm spring
|
|
|
Gearbox
|
FAST 10JSD120,10 Forward&2 Reverse,Manual
|
|
|
Front axle
|
7.5T MAN 7500kg
|
|
|
Rear axle
|
16T STR 2×16000kg
|
|
|
Ratio
|
5.73
|
|
|
Steering
|
ZF technology Left-hand drive(LHD)
|
|
|
Brake system
|
ABS(Four channel)
|
|
|
Type
|
12R22.5,10+1pc
|
|
|
Tank capacity(L)
|
380L
|
|
|
Max. speed (km/h)
|
77km/h
|
|
|
Color
|
Optional
|
|
|
Cargo box size(mm)
|
5200×2300×1350mm(16m³) bottom8mm,side4mm
|
|
|
Lifting style
|
Middle lifting
|
|
