Quick Details
-
Production Capacity:
-
High
-
Power:
-
2.5KW
-
Dimension(L*W*H):
-
4400*1100*1700mm
-
Name:
-
PVC Window Fame Fabrication Machine
-
Application:
-
Welding PVC Window Door Corner
-
Power supply:
-
380V 50Hz
-
Total Power:
-
2.5KW
-
Air Pressure:
-
0.6-0.8MPa
-
Welding Height:
-
20-120mm
-
Welding Width:
-
0-120mm
-
Welding Range:
-
400-3500mm
-
Machine Dimension:
-
4400*1100*1700mm
Quick Details
-
Brand Name:
-
SINON
-
Voltage:
-
220V 50HZ
-
Weight:
-
900 kg, 900KW
-
Production Capacity:
-
High
-
Power:
-
2.5KW
-
Dimension(L*W*H):
-
4400*1100*1700mm
-
Name:
-
PVC Window Fame Fabrication Machine
-
Application:
-
Welding PVC Window Door Corner
-
Power supply:
-
380V 50Hz
-
Total Power:
-
2.5KW
-
Air Pressure:
-
0.6-0.8MPa
-
Welding Height:
-
20-120mm
-
Welding Width:
-
0-120mm
-
Welding Range:
-
400-3500mm
-
Machine Dimension:
-
4400*1100*1700mm

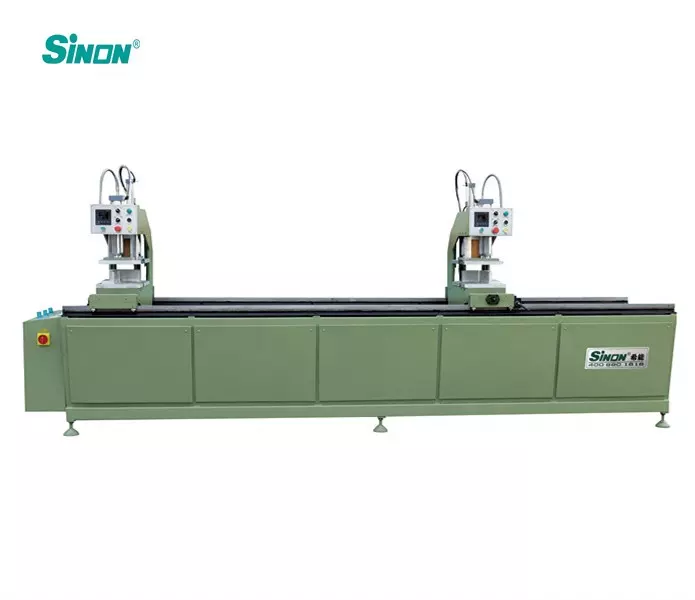

Pakistan Double Head Welding PVC Window Fame Fabrication Machine
Product Features
1. Double Head PVC Window Door Welding Machine
2. Adopt programmable controller ( PLC ) ensures the machine running more steady and reliable.
3. Adopt second pressing function so as to ensure the welding strength.
4. Professional three layers welding board to meet different height profile welding.
5. The heads can be used individually, combinative or jointly as well as be combined at will.
6. No. 2 head of double head welding machine can horizontal moving so that realized all kinds of welding combination. And also can be used for welding variable angle with the special mold and the angle range from 30°~180°.
Double Head Welding UPVC Window Machinery for Sale
|
Technical Specification |
|
|
Name |
Double Head Welding for PVC Window Fame Fabrication Machine |
|
Model |
HJ02-3500.2/2A |
|
Power Supply |
380V 50Hz |
|
Input Power |
2.5Kw |
|
Air Pressure |
0.6-0.8MPa |
|
Air Consumption |
60L/min |
|
Welding profile height |
20-120mm |
|
Welding profile width |
0-120mm |
|
Welding range |
400 -3500mm |
|
Dimension |
4400*1100*1700mm |
|
Weight |
900kg |
Deatils Display
PLC : Omron, Japan
Professional Customization and Solution for Aluminum & UPVC Window Door Production
UPVC Window and Door Making Machine
Pakistan Double Head Welding PVC Window Fame Fabrication Machine
24h x 365 service
1. detailed operation Manual and video
2. Our engineers could provide service overseas for installation,test and training
3. One year warranty since B/L issued,lifetime maintenance
4. 24h and 365 days online service by E-mail, calling ,social media ,video call
5. broken parts can be changed quickly, some parts can sent FREE within one year
6. Return visit for free maintenance.
7. Give professional Turn-Key Solution for client's requirements,production capacity and market.
Service Overseas for Our Clients
