Quick Details
-
Name:
-
PVC plastic profile extrusion line
-
Raw material:
-
PVC Powder, additives
-
Color:
-
Customised
-
Warranty:
-
12months
-
Formulation:
-
Stabilizer, DOP, CPE, ACR and so on
-
Main Electric:
-
SIEMENS
-
Main Material:
-
PVC and soft rubber side
-
PVC Skirting Board:
-
PVC Plinth
-
Machine Total Length:
-
about 30meters
-
Printing Width:
-
100mm
-
Automatic Grade:
-
Automatic
-
Certification:
-
CE ISO SGS
-
Power:
-
50KW
Quick Details
-
Screw Design:
-
Double-screw
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
PVC plastic profile extrusion line
-
Raw material:
-
PVC Powder, additives
-
Color:
-
Customised
-
Warranty:
-
12months
-
Formulation:
-
Stabilizer, DOP, CPE, ACR and so on
-
Main Electric:
-
SIEMENS
-
Main Material:
-
PVC and soft rubber side
-
PVC Skirting Board:
-
PVC Plinth
-
Machine Total Length:
-
about 30meters
-
Printing Width:
-
100mm
-
Automatic Grade:
-
Automatic
-
Certification:
-
CE ISO SGS
-
Power:
-
50KW
China Machine PVC Plastic Profile Extrusion Line / PVC Baseboard Machine
PVC plastic profile extrusion line is mainly to manufacture all kinds of different color and size skirting board, 2 sides is soft PVC or rubber material.
PVC plastic baseboard samples
PVC plastic baseboard extrusion line
1- Extrusion speed: 0-8m/min
2- Capacity: 150-250kg/h
3- Printing color: 3 colors
4- Machine list
| NO. | PVC plastic baseboard extrusion line machine list |
| 1 | SRL-200/500 heat and cold high speed mixer |
|
2 |
Screw feeder + SJSZ51/105 conical double scew extruder |
| 3 | Co-extruder |
| 4 | Baseboard forming molds |
| 5 | Vacuum calibrating table |
| 6 | Printing machine |
| 7 | Hauling-off machine |
| 8 | Cutting machine and stracker |
| 9 | Chiller |
PVC SKIRTING EXTRUSION AND NECESSARIES PARTS VIDEO WEBSITE:
https://www.youtube.com/watch?v=Jh2GNIWpS8M&t=4s
| Specification Name | SJSZ51/105 Conical twin screw extruder |
| Diameter |
¢ 51mm and ¢ 105mm |
|
Nitride Depth of screw and barrel |
0.5-0.7mm |
|
Feeding Method |
Two-screw feeding system |
|
Inverter Brand |
ABB |
|
Extruder Main Motor Power |
18.5KW/AC |
| Extruder Speed Adjust Method | Transducer |

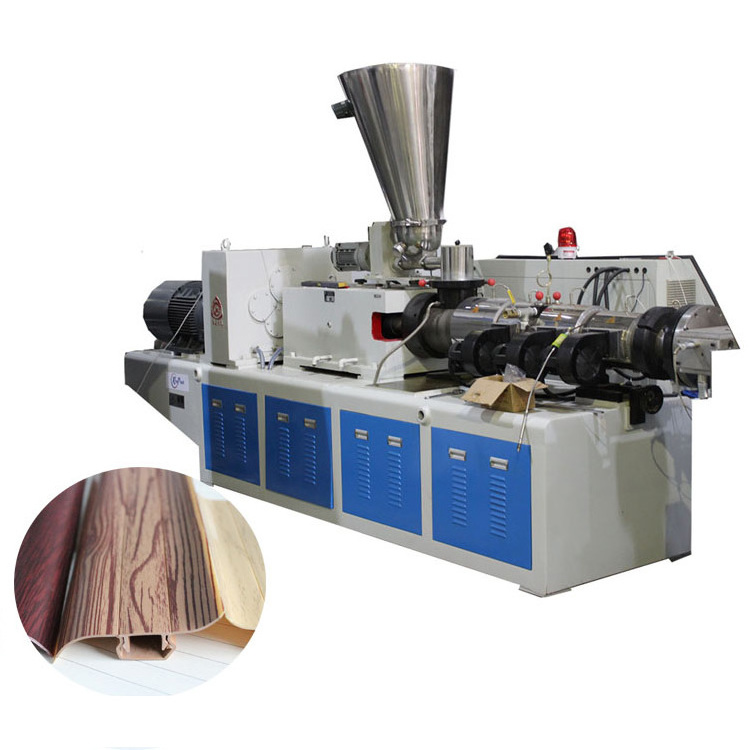

SJSZ-51/105 twin screw extruder for PVC plastic baseboard extrusion line
PVC plastic baseboard forming molds
Vacuum calibrating table
Printing machine
Haul-off machine
Cutting machine
Used with skirting corner
Pre-sale services:
Based on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients.
Sale services:
Our experienced technicians are available on the phone also the Internet, clients can get instance guidance by telephone, email, online service anytime and anywhere.
After-sale services:
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and email our clients to check the equipment working condition and offer suggestions for maintenance.
We use pe film for inner and wooden for outside packing or pack it according to customers special request.
