Quick Details
-
Model Number:
-
TG-4500D
-
Display Type:
-
2.4" color OLED, 320X240 pixels, contrast 10,000:1
-
Measuring Range:
-
0.60mmto 508mm
-
MeasuringResolution:
-
Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
-
Update Rate:
-
Selectable 4Hz, 8Hz, 16Hz
-
MaterialVelocity Range:
-
500 to 9999m/s (0.0197 to 0.3937in/us)
-
Alarm Settings:
-
Minimum and Maximum alarms. Range of 0.25 mm to 508 mm .
-
Power Requirements:
-
2 AA size batteries
-
Operating Temperature:
-
-10°Cto +50°C (+10°F to +120°F)
-
CommunicationPort:
-
USB 2.0 (Full Speed ) port
-
function:
-
ultrasonic
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
HUATEC
-
Model Number:
-
TG-4500D
-
Display Type:
-
2.4" color OLED, 320X240 pixels, contrast 10,000:1
-
Measuring Range:
-
0.60mmto 508mm
-
MeasuringResolution:
-
Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
-
Update Rate:
-
Selectable 4Hz, 8Hz, 16Hz
-
MaterialVelocity Range:
-
500 to 9999m/s (0.0197 to 0.3937in/us)
-
Alarm Settings:
-
Minimum and Maximum alarms. Range of 0.25 mm to 508 mm .
-
Power Requirements:
-
2 AA size batteries
-
Operating Temperature:
-
-10°Cto +50°C (+10°F to +120°F)
-
CommunicationPort:
-
USB 2.0 (Full Speed ) port
-
function:
-
ultrasonic

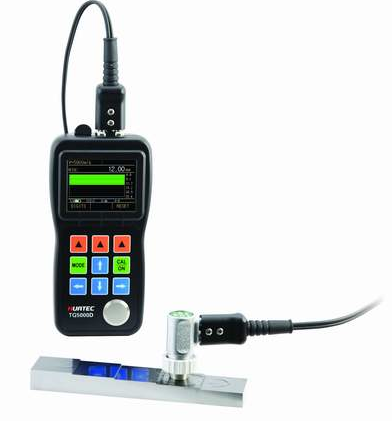

Through coating/painting thickness gauge, Ultrasonic Thickness tester with USB port TG-4500D Echo-Echo mode
\
Features:
Color 320x240 Pixels Display
A-Scan Snapshot
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions
Specifications
|
Feature |
TG-4500 |
TG-4500D |
TG-4500DL |
Data Logger Option |
|
Color Display |
|
|
|
|
|
A-Scan Snapshot |
|
|
|
|
|
Gain: Low, Medium, High |
|
|
|
|
|
Min/Max Capture |
|
|
|
|
|
DIFF/RR% |
|
|
|
|
|
Thru-paint |
X |
|
|
|
|
Data Logger |
X |
X |
|
|
|
Data View Software |
X |
X |
|
|
|
Instrument Specifications |
|
|
Display Type |
2.4" color OLED, 320X240 pixels, contrast 10,000:1 |
|
Operating Principle |
Pulse echo with dual element transducers |
|
Measuring Range |
0.60mmto 508mm(0.025" to 20.00"), depending on material, probe and surface condition |
|
MeasuringResolution |
Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01") |
|
Units |
Inch or Millimeter |
|
Through Coating Function |
coating thickness: 0-2mm measuring range: 3-25mm |
|
Gain |
Low, Medium or High for varying test conditions |
|
Display Mode |
Normal, Minimum / Maximum capture, DIFF/RR% |
|
V-Path Correction |
Automatic |
|
Update Rate |
Selectable 4Hz, 8Hz, 16Hz |
|
MaterialVelocity Range |
500 to 9999m/s (0.0197 to 0.3937in/us) |
|
Languages |
Selectable Chinese, English, Japanese |
|
Alarm Settings |
Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm |
|
Power Requirements |
2 AA size batteries |
|
Operating Time |
Approximately 40 hours |
|
Instrument Shut-off |
Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity |
|
Operating Temperature |
-10°Cto +50°C (+10°F to +120°F) |
|
Size |
153mmX 76mm X 37mm(H X W X D) |
|
Weight |
280gincluding batteries |
|
Data Logger Option Features |
|
|
Capacity |
400 files, 100,000 readings |
|
File Structure |
Grid file |
|
Rows X Columns |
21 X 12 |
|
CommunicationPort |
USB 2.0 (Full Speed ) port |
|
Software |
Data View PC software |
|
Standard Configurations |
|
|
Thickness Gauge |
1 |
|
Probe |
1 |
|
Alkaline Battery |
2 |
|
Couplant |
1 |
|
Carrying Case |
1 |
|
Operation Manual |
1 |
|
USB Cable |
1(Only TG-4500DL) |
|
Software CD |
1(Only TG-4500DL) |
|
Optional Configurations |
|
|
High-temperature Probe |
Cast Iron Probe |
|
Small Probe |
Mini Probe |
|
Probe Cable |
Stepped Calibration Block |
|
Rubber Sheath |
Storage Option(Only TG-4500DL) |
