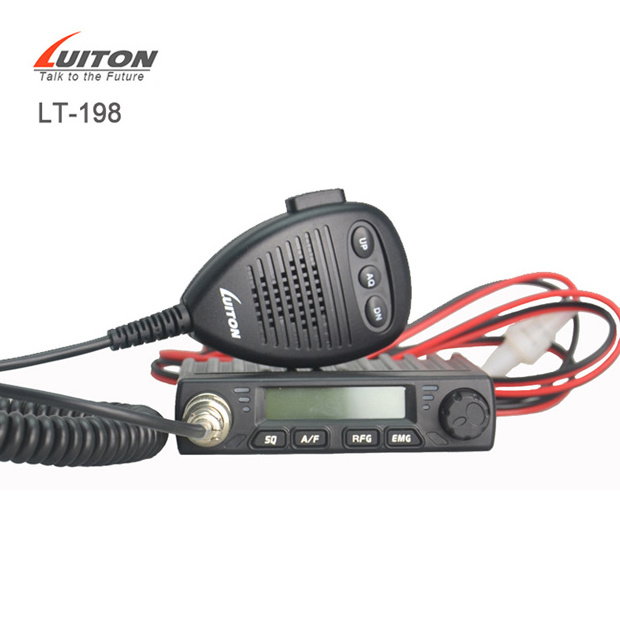

Cheap Vehicle Mounted Luiton LT-198 27MHz HF CB Ham Mobile Radio Transceiver For Car Truck

Cheap Vehicle Mounted Luiton LT-198 27MHz HF CB Ham Mobile Radio Transceiver For Car Truck

FOB Reference Price: Get Latest Price

≥1 Pieces

US $27

≥500 Pieces

US $26

≥1000 Pieces

US $25.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Walkie Talkie Type:: LUITON CB Radio

Frequency Type:: 25.565-27.99125MHz

Place of Origin:: Fujian, China

Model Number:: LT-198

Dimensions:: 104mm*108mm*25mm

Frequency Range:: 25.565-27.99125MHz, 25.565-27.99125MHz

Modulation Mode:: AM/FM

Frequency Control:: P.L.L.

DC Input Voltage:: 13.2V

Dimensions (H*W*D):: 104mm*108mm*25mm

Weight:: 416g

Power Output:: 4 Watt AM/FM

Frequency Response:: 300-3000Hz

Output Impedance:: 50 ohms

Image Rejection:: 70dB

Quick Details

Talk Range:: 1-5KM

Terminal style:: Vehicle Mouted

Storage Channel:: 40 channels

Walkie Talkie Type:: LUITON CB Radio

Frequency Type:: 25.565-27.99125MHz

Place of Origin:: Fujian, China

Model Number:: LT-198

Dimensions:: 104mm*108mm*25mm

Frequency Range:: 25.565-27.99125MHz, 25.565-27.99125MHz

Modulation Mode:: AM/FM

Frequency Control:: P.L.L.

DC Input Voltage:: 13.2V

Dimensions (H*W*D):: 104mm*108mm*25mm

Weight:: 416g

Power Output:: 4 Watt AM/FM

Frequency Response:: 300-3000Hz

Output Impedance:: 50 ohms

Image Rejection:: 70dB

Cheap Vehicle Mounted Luiton LT-198 27MHz HF CB Ham Mobile Radio Transceiver

CB radio AM/FM/SSB
cb radio 27MHz
car radio

Product Description

Features:

Squelch control

RF Gain control

AM/FM mode

ASQ/SQ function

3-colors backlight

Dual watch

EMG channel CH9/19

General
Modulation Mode	AM/FM
Frequency Range	25.565– 27.99125MHz
Frequency Control	P.L.L.
Frequency Tolerance	±5.0ppm
Operating Temperature	-20°/+50°C
DC Input Voltage	13.2V
Dimensions (H × W × D)	104mm×108mm×25mm
Weight	416g
Antenna Connector	UHF,SO-239
Current drain	Transmit : 2A MAX
	Receive : Squelched 0.3A
	VOL Max : 0.8A
Transmitter
Power Output	4 Watt AM/FM
Transmission Interference	inferior to 4nW(-54dbm)
Frequency Response	300-3000Hz
Modulation Signal Distortion	inferior to 5%
Output Impedance	50 ohms
Receiver
Sensitivity	Less than 1uV for 10dB(S+N)/N
Image Rejection	70dB
Adjacent Channel Rejection	60dB
IF Frequencies	1st 10.695MHz
AGC	2nd 455KHz
	Less than 10dB change in audio
Squelch	Output for inputs from 10 to 50000uV
	Less than 1uV
Audio Output Power	1 Watt
Frequency Response	300-3000Hz
