Quick Details
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Enfriar
-
Voltage:
-
Customized
-
Power:
-
Depends
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
800 KG
-
Product name:
-
Walk in Cold Room
-
Panel Fire-proof Level:
-
B1,B2
-
Defrosting Way:
-
Hot Gas/ Electric
-
Cold Room Storage Door Type:
-
Hinged / Sliding / Swing / Lifting Doors
-
PU Core Density:
-
40+-/2kg/M2
-
Surface Material:
-
Galvanized steel/Stainless steel
-
Condenser Type:
-
Fnv / Fnh (Air Cooled, Water Cooled, Evaporative)
-
Refrigeration System:
-
New Generation of Smart Cooling System
-
Panel:
-
PU Camlock Panel/plug-in panel
-
Refrigerant:
-
R404A/R134A/R448A
Quick Details
-
Temperature:
-
-45℃ ~ +20℃
-
Compressor brand:
-
Copeland, Bitzer, Other, Emerson, Sinocold
-
Panel Thickness:
-
100mm, 200mm, 120mm, 75mm, 50mm, 150mm
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Enfriar
-
Voltage:
-
Customized
-
Power:
-
Depends
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
800 KG
-
Product name:
-
Walk in Cold Room
-
Panel Fire-proof Level:
-
B1,B2
-
Defrosting Way:
-
Hot Gas/ Electric
-
Cold Room Storage Door Type:
-
Hinged / Sliding / Swing / Lifting Doors
-
PU Core Density:
-
40+-/2kg/M2
-
Surface Material:
-
Galvanized steel/Stainless steel
-
Condenser Type:
-
Fnv / Fnh (Air Cooled, Water Cooled, Evaporative)
-
Refrigeration System:
-
New Generation of Smart Cooling System
-
Panel:
-
PU Camlock Panel/plug-in panel
-
Refrigerant:
-
R404A/R134A/R448A
Product Description

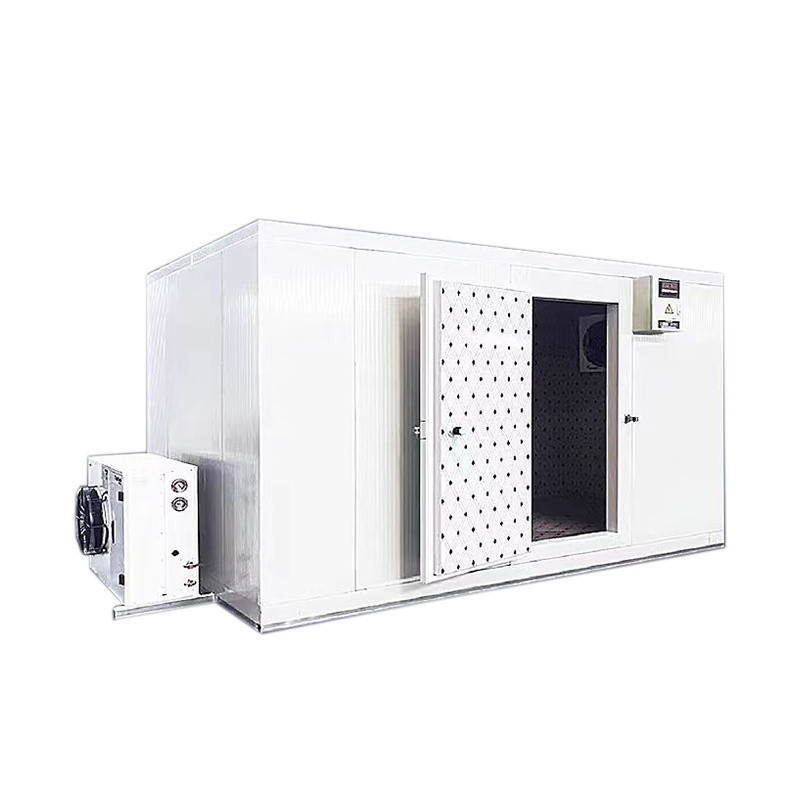

Cold room (also called cool room, chiller room) is a walk-in storage facility in controlled condition to keep a consistent temperature, it is widely used to preserve the quality of stored products like fruit, vegetables, beverages, flowers, beef and chicken meat, seafood, medicine, cheese, eggs and other fresh foods. The applications of cold rooms include foods and beverages packaging, short and long term products cold storage as well as blast freezing.
We provide one-stop procurement services that are fast and convenient.
We provide one-stop procurement services that are fast and convenient.
Our innovative, high quality and intelligent controlled cool room solutions have the characteristics of integrated design, modular installation, energy saving, easy maintenance and long life span. Every Sino-cold Brand cold room is manufactured and designed to optimize your intended uses. Our typical cool room temperature ranges from -5°C to 10°C.
Specifications of Cold Room
|
Insulation
|
Modular cold room panels with rigid polyurethane foam and cam locking facility.
|
|
Thickness
|
60, 80,100, 125,150 and 200mm.
|
|
Lamination
|
Pre-coated GI on both sides, SS sheet (Grade 202,304/316), GI plain sheet both sides or a combination of any 2 of the above.
|
|
Floor Finish
|
Aluminum checkered plate with marine plywood, PUF slabs, EPS slabs, XPS slabs, Tarfelt cladding etc.
can be provided depending on customers requirement. |
|
Injected Density
|
40Kg/m3(+/-2)
|
|
Thermal Conductivity
|
0.022 W/m2K
|
|
Vapour Permeability
|
5.5mg/PASM
|
|
Operational Temp
|
-40°C to +80°C
|
|
Fire Resistance
|
PIR panels (Polyisocyanurate) can be provided where a requirement for resistance to fire may be higher.
|
|
Refrigerant
|
R404A
|
|
Remark
|
ODM.OEM，Customized available
|
Doors:
Swing doors, Sliding Door, double open hinged door, sliding doors with clear door openings etc.(Optional)
Non-corrosive hinges, door handles and locks
View ports provided on the doors(optional)
Hatch doors(optional)
Self closing : Ensures that the doors remain closed
Safety release : Doors can be opened from the inside of emergency
Precision locking Mechanism:
Each Green Box pre-fabricated insulation panel has cam-action locking devices precisely positioned and firmly
anchored within it.
Al cam-locks are accessible from within by means of a hex wrench provided with the panel.
Cam-locks have integral rear flanges to permanently anchor their position during the manufacturing of the
PUF Panels:
We offers a wide range of Walk-In Coolers and Freezer Rooms in PUF insulated sandwich panels starting from 125 CFT in volume to any volume the customer needs. Each modular cold room’s prefabricated insulation panel has cam-action locking devices precisely positioned for enhancing the rooms air tightness.
Insulation : Modular cold room panels with rigid polyurethane foam and cam locking facility
Thickness : 60, 80,100, 125,150 and 200mm
Lamination : Pre-painted GI on both sides, SS sheet (Grade 202,304/316), GI plain sheet both
sides or combination of any 2 of the above
Floor Finish : Aluminum checkered plate with marine plywood, PUF slabs, EPS slabs, XPSslabs, Tarfelt cladding etc. can be
provided depending on customer’s requirement
Injected Density : 40Kg/m³ (+/-2)
Thermal Conductivity : 0.022W/m2 K
Vapour Permeability : 5.5mg/PASM
Operational Temp : -40°C to +80°C
Fire Resistance : PIR panels (Polyisocyanurate) can be provided where a requirement for resistance
to fire may be higher
Main Components of Cold Room
Features of Cold Room
Applications of Cold Room
Cold storage room is the effective facility to keep quality of stored products like fruit, vegetables, beverages, flowers, beef and chicken meat, seafood, medicine, cheese, eggs and other fresh foods. It is widely used in restaurants, hotel, food shops and supermarkets, etc al. We are always providing one stop solution to worldwide customers. All our cold rooms can be customized for your requirements. OEM and ODM are also available.
Success Cases
Sino-cold Technology had been specializing in delivering turn key cold room solutions to worldwide customers for 15 years. We had provided many types of effective and states of the art cold rooms and freezer rooms to over 45 countries. Our customers are from Swiss, Sweden, Australia, USA, Canada, New Zealand, Japan, Pakistan, Spain, India, Malaysia, Singapore, Malaysia, Philippines, South Africa, Argentina, Indonesia, Kenya, Algeria, Ghana, Guyana, Mongolia, Chile, Peru, Dubai, Poland, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Turkmenistan, Bangladesh, Colombia, Bahrain, and so on. The following are some of the successful cold room projects.
Product Packaging
The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
COMPANY PROFILE
Hangzhou Sino-Cold Sci-Tech Co., Ltd.
is the leading cold room and refrigeration unit designer, manufacturer and exporter, which dedicated in supplying finest quality Cold Room, Blast Freezer, Unit Cooler, Condensing Unit, Door and PU Panel, etc. Product innovation and customer
satisfaction are our long term commitment to all our partners.
