Quick Details
-
Brand Name:
-
CVT industrial ethernet switch
-
Model Number:
-
NIE8084PGM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
full gigabit industrial managed PoE switch
-
PoE Ports:
-
8 10/100/1000Mbps PoE Ports
-
Uplink Ports:
-
4x1000M SFP Outdoor switch
-
Working temperature:
-
-40°C~75°C
-
Type:
-
10/100/1000Mbps SFP switch
-
Surge protection:
-
6KV/8KV IEC61000-4-5
-
Keywords:
-
managed PoE switch
-
Applications:
-
ethernet industrial switch
-
Feature:
-
Unmanaged network switch
-
mounting:
-
Supporting wall and Din-rail
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
24 GBPS
-
Brand Name:
-
CVT industrial ethernet switch
-
Model Number:
-
NIE8084PGM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
full gigabit industrial managed PoE switch
-
PoE Ports:
-
8 10/100/1000Mbps PoE Ports
-
Uplink Ports:
-
4x1000M SFP Outdoor switch
-
Working temperature:
-
-40°C~75°C
-
Type:
-
10/100/1000Mbps SFP switch
-
Surge protection:
-
6KV/8KV IEC61000-4-5
-
Keywords:
-
managed PoE switch
-
Applications:
-
ethernet industrial switch
-
Feature:
-
Unmanaged network switch
-
mounting:
-
Supporting wall and Din-rail
Product Description
L2 management software system 4* 1000M SFP Outdoor full gigabit industrial managed PoE switch
Overview

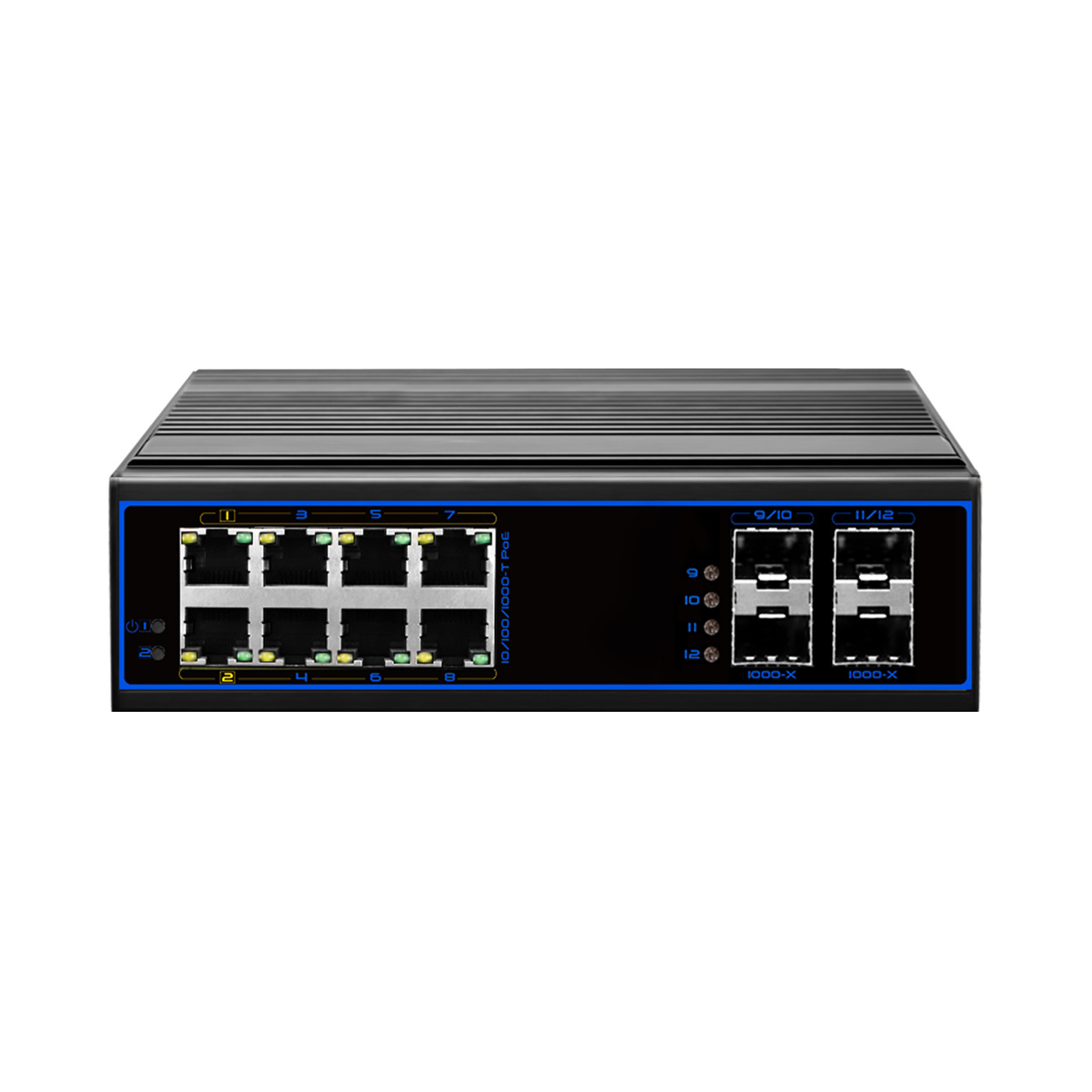

NIE8084PGM is a 12-port full gigabit industrial managed PoE switch that supports up to 8*10/100/1000M PoE downlink ports, 4* 1000M SFP ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, support 2 port PoE power each up to 90W,6 port PoE power each up to 30W.
It supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management.
It supports 6KV surge protection, 8KV contact/15KV air ESD protection.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
With 8*10/100/1000M PoE downlink ports, 4*1000M SFP ports, with L2 network management ;
Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;
Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
6KV surge protection, 8KV contact /15KV air ESD protection ;
Supports working temperature - 40℃～75℃.
