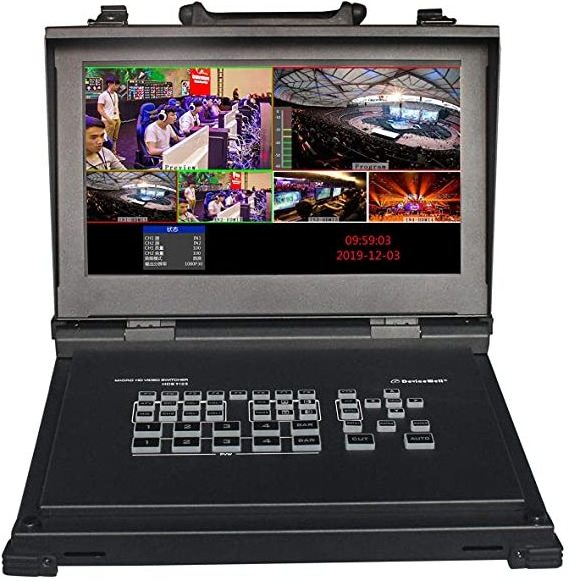

DeviceWell HDS9105 5-Channel Video switcher 4 HD-MI + 1 DP Signal inputs 5 signals switching panel for camera Live Broadcasting

Comes with 11.6-inch LCD monitor
Portable integrated design
Metal body, high strength and light weight

Integrated control keyboard
Support up to 4 HDMI + 1 DP inputs
2 stereo MIC inputs
2-CH RCA audio input
1 LINE OUT output

Support audio follow, mix function

Support HDMI audio de-embedding
PGM output: 2 HDMI

Multiview output: 1 HDMI
Support special effects switching such as MIX / FADE

Support CUT hard cut, support AUTO special effect switching
Support Tally / Network remote control

DeviceWell high-definition video switcher HDS9105 adopts a portable integrated design, metal casing, small size and light weight.
Comes with a 11.6-inch high-definition monitor screen, which can directly output and display multiple pictures.
Standard size: 310mm*285mm*80mm, which can be used for small-scale out-of-field video effects switching requirements.
The device integrates multiview processor, special effect generator, audio processor, control keyboard and other common components of the switcher.
HDS9105 supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external preview signal can be output simultaneously.
HDS9105 supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded in the output HDMI signal or output from the analog port.
The resolution of all input signals is automatically adapted, and the output signal resolution can be selected according to requirements,
which is quite flexible. For the needs of video switching such as radio and television,
program production, live production of interviews and lectures, outdoor sports events, and school courseware production, the functions of the HDS9105 can be fully met.
