Quick Details
-
Welding Diameter:
-
250-3000mm
-
Use:
-
LPG/LNG Cylinder Pressure Vessel welding machine
-
Voltage:
-
220v, 380v or customised
-
Weight (KG):
-
500 KG
-
Tank Circumferential lathe welder:
-
tank welding machine, welding lathe
-
Type:
-
TIG, MIG, TIG+MIG, Plasma
-
Welding material:
-
stainless steel, carbon steel
-
Length of Material:
-
10-3000mm, could be customized
-
Diameter range of tank:
-
dia =250-3000mm, customized
-
Welding Thickness:
-
0.8-10mm, customized
-
MOQ:
-
1 set
Quick Details
-
Place of Origin:
-
China
-
Forming Time:
-
1000mm/min
-
Welding Mode:
-
butt welding
-
Welding Diameter:
-
250-3000mm
-
Use:
-
LPG/LNG Cylinder Pressure Vessel welding machine
-
Voltage:
-
220v, 380v or customised
-
Weight (KG):
-
500 KG
-
Tank Circumferential lathe welder:
-
tank welding machine, welding lathe
-
Type:
-
TIG, MIG, TIG+MIG, Plasma
-
Welding material:
-
stainless steel, carbon steel
-
Length of Material:
-
10-3000mm, could be customized
-
Diameter range of tank:
-
dia =250-3000mm, customized
-
Welding Thickness:
-
0.8-10mm, customized
-
MOQ:
-
1 set
Product Description

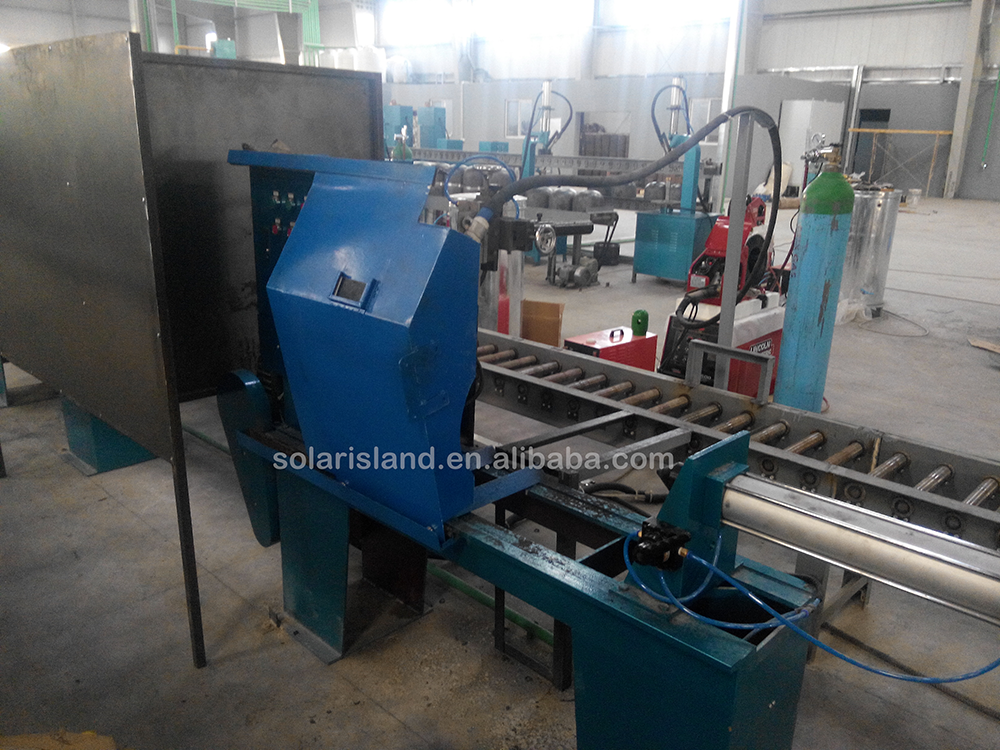

Seam Welding Equipment for LPG Gas Cylinder Production Line
Automated circular seam MIG inverter welding mathine are widely used by tank manufacturers as stand-alone machine or as part of assembly line operations. Such circumferential lathe welder are widely used in production of solar water heater tank, enamel tank, LPG cylinder, large capacity welded insulated cylinder, storage tank, LNG gas station and so on.
Completely customized to meet customer’s requirements.
Completely customized to meet customer’s requirements.
|
Features
|
1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of welding seam and productivity.
3. Adjustable for various thickness 4. Precision longitudinal track for smooth travel 5. Change size automatically or manually |
|
Applications
|
Our precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank * Low-pressure type solar water heater tank * Enamel tank for electrical water heater * LPG cylinder * LNG gas station * Cryoease * Storage tank |
|
Range of working piece
|
Thickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm |
|
Custom Designed
|
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as: * Programmable Logic Controllers (PLCs) * Standard Push Button Controls * Emergency Stop Buttons * Safety Sensors * Audiovisual Alarms * Data Acquisition We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify |
Our Service
With our production and export experience with lathe welder, our team of engineers can custom design equipment.
We can tie-in our equipment with a current assembly line or machinery or supply an entire assembly line.
We also provide detailed technical drawings, user manual, work procedure and maintenance manual throughout the design, fabrication and installation processes
We can tie-in our equipment with a current assembly line or machinery or supply an entire assembly line.
We also provide detailed technical drawings, user manual, work procedure and maintenance manual throughout the design, fabrication and installation processes
