Quick Details
-
Material:
-
Galvanized steel, Galvanized steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FGVSLIDE
-
Model Number:
-
DY3LW1-07
-
Usage:
-
furniture & cabinet
-

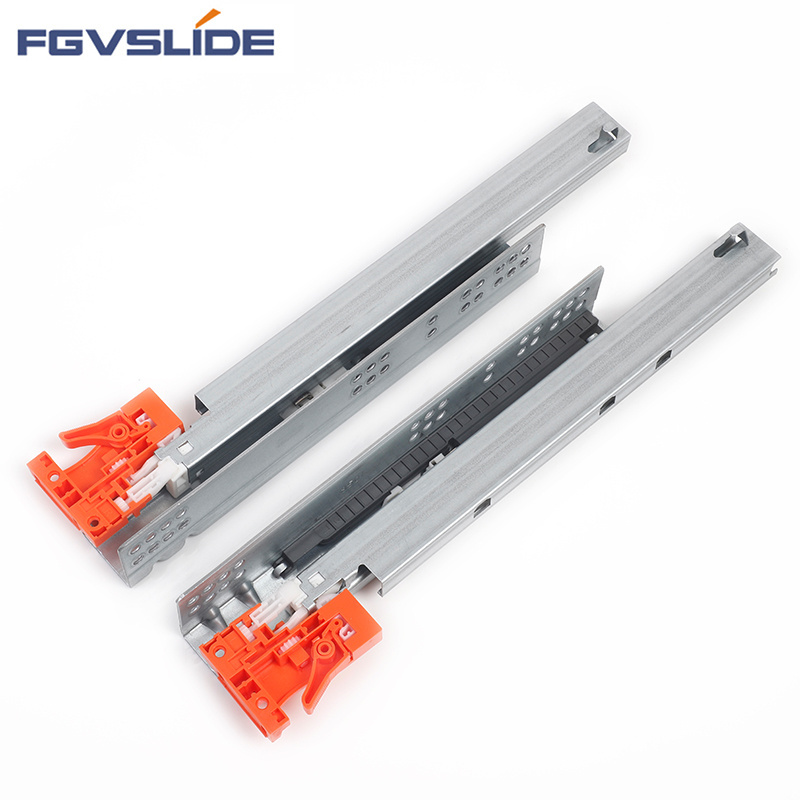

Product Name:
-
cabinet full extension concealed undermount drawer slide
-
Finish:
-
Electro-zinc plated with black Chromate
-
Thickness:
-
1.8*1.0*1.5 mm
-
Height:
-
0+-5 mm
-
Load Rating:
-
25 KG
-
Feature:
-
low profile
-
Certification:
-
ISO9001
-
Garantee:
-
75000 Times Cycling Test
-
length:
-
300-550mm
Quick Details
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Hotel, Office Building, Hospital, School, Mall, Supermarket, Warehouse, Workshop
-
Design Style:
-
Modern
-
Type:
-
Slide
-
Material:
-
Galvanized steel, Galvanized steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FGVSLIDE
-
Model Number:
-
DY3LW1-07
-
Usage:
-
furniture & cabinet
-
Product Name:
-
cabinet full extension concealed undermount drawer slide
-
Finish:
-
Electro-zinc plated with black Chromate
-
Thickness:
-
1.8*1.0*1.5 mm
-
Height:
-
0+-5 mm
-
Load Rating:
-
25 KG
-
Feature:
-
low profile
-
Certification:
-
ISO9001
-
Garantee:
-
75000 Times Cycling Test
-
length:
-
300-550mm
electric drawer slides jewerly cabinet cabinet full extension concealed undermount drawer slide
|
ITEM NAME
|
cabinet full extension concealed undermount drawer slide
|
ITEM NO.
|
DY3LW1-07
|
|
MATERIAL
|
Galvanized Steel
|
LOCKS
|
Plastic / Metal
|
|
STYLE
|
American
|
LENGTH
|
12 to 24 inches
|
|
THICKNESS
|
1.8*1.0*1.5 mm
|
HOLE PATTERN
|
Standard
|
|
COLOR
|
Clear
|
LOAD RATING
|
25 KG
|
|
FUNCTION
|
Soft Close
|
EDGE
|
Square
|
|
Thickness(mm)
|
Length(mm)
|
N.W.(kg)/box
|
G.W.(kg)/box
|
CTN SIZE(mm)
|
|
1.0*1.0*1.2
|
250
|
10.95
|
11.45
|
270*200*100
|
|
1.0*1.0*1.2
|
300
|
13.14
|
13.64
|
320*200*100
|
|
1.0*1.0*1.2
|
350
|
15.33
|
15.83
|
370*200*100
|
|
1.0*1.0*1.2
|
400
|
17.52
|
18.02
|
420*200*100
|
|
1.0*1.0*1.2
|
450
|
19.71
|
20.21
|
470*200*100
|
|
1.0*1.0*1.2
|
500
|
21.9
|
22.4
|
520*200*100
|
|
1.0*1.0*1.2
|
550
|
24.09
|
24.59
|
570*200*100
|
|
1.0*1.0*1.2
|
600
|
26.28
|
26.78
|
620*200*100
|
|
Testing
|
SGS TEST
|
|
|
Passed over 50,000 open-close
|
|
|
Passed 48 hours salt spray test
|
|
|
Passed 75 pounds load test
|
|
Sample
|
Sample free and small order can be accepted
|
|
Features
|
Strengthened adjustable screw can widen the adjustable ranges and longer using life.
|
|
|
Strengthened spring, thickness 2.5mm instead of common one thickness:
1.2*1.2*1.5mm or 1.0*1.0*1.2mm |
|
|
Adopt advanced hydraulic system,longer life time,smaller volume
|
