Quick Details
-
Model Number:
-
HPCS6300
-
Wavelength Range:
-
380nm-780nm
-
Name:
-
HOPOOCOLOR Integrating Sphere System
-
DC power:
-
60V 5A
-
Screen:
-
10.1 inch
-
Range of wavelength:
-
380nm~780nm
-
FWHM:
-
2nm
-
Accuracy of wavelength:
-
±0.5nm
-
Application:
-
Lighting Test
-
Display:
-
10 inch
-
Stray light:
-
0.3%
-
Wavelength Accuracy:
-
0.3nm
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOPOOCOLOR
-
Model Number:
-
HPCS6300
-
Wavelength Range:
-
380nm-780nm
-
Name:
-
HOPOOCOLOR Integrating Sphere System
-
DC power:
-
60V 5A
-
Screen:
-
10.1 inch
-
Range of wavelength:
-
380nm~780nm
-
FWHM:
-
2nm
-
Accuracy of wavelength:
-
±0.5nm
-
Application:
-
Lighting Test
-
Display:
-
10 inch
-
Stray light:
-
0.3%
-
Wavelength Accuracy:
-
0.3nm
Product Description

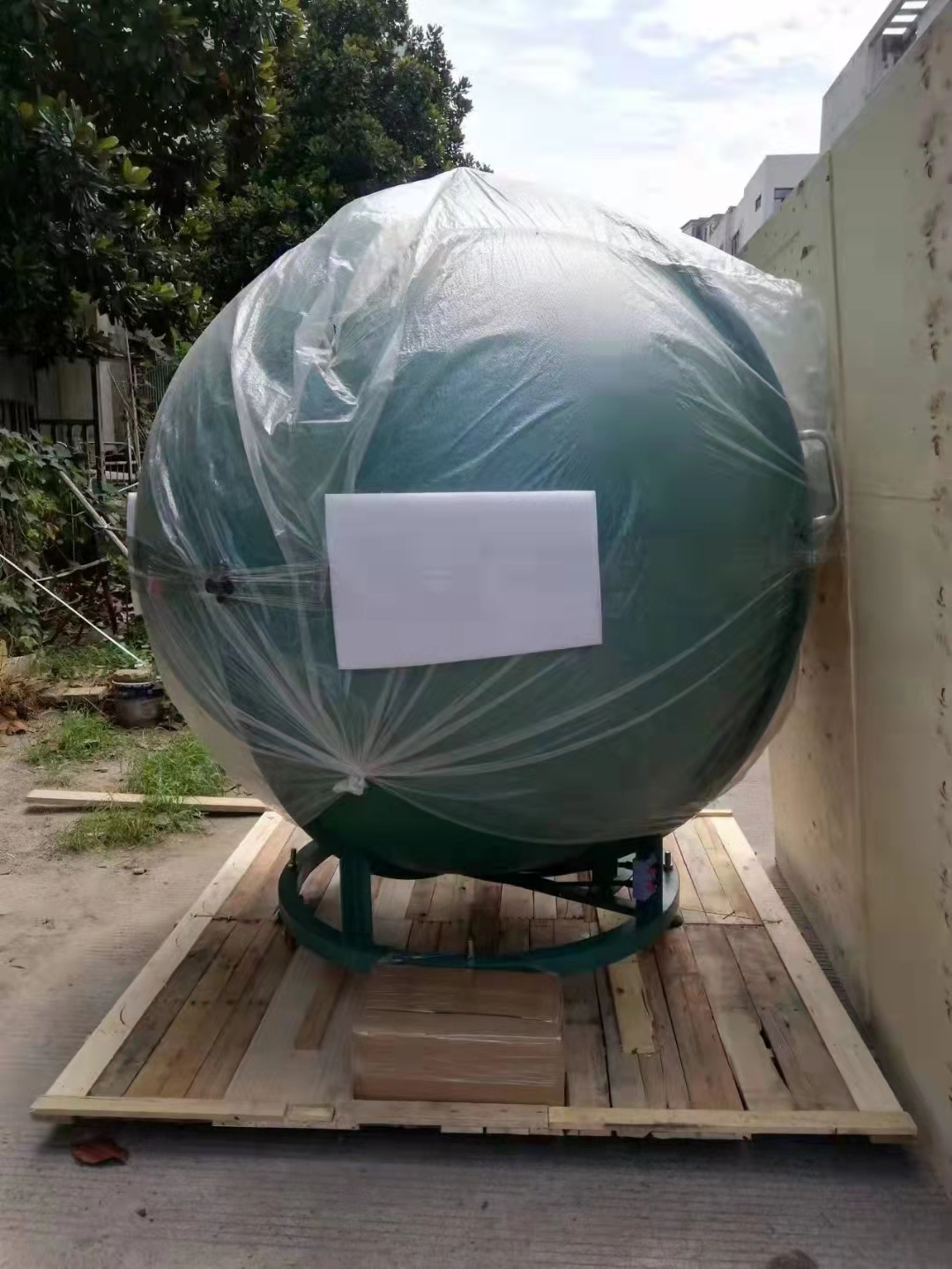

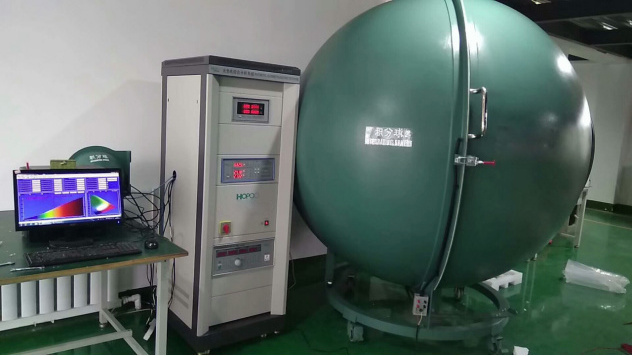

HPCS6300 Spectroradiometer Integrating sphere system
(1)Fast scan Spectroradiometer (10.1 inch Touch screen)
CHRACTERISTICS AND SPECIFICATIONS
The system can determine spectral power distribution, chromaticity coordinates, correlated color temperature, color
rending index, color difference, peak wavelength, spectral half width, dominant wave length, color purity, luminous flux,
test for photometry colorimetry electricity of LED characteristics.
1.Grating: high performance precision diffractive concave grating;
2.Detector: HAMAMATSU (Japan Hamamatsu) back-illuminated precision array CCD;
3.Test speed：10μs-10s;
4.Optical parameter:
Range of wavelength:380nm~780nm;
Accuracy of wavelength: ±0.5nm；
FWHM:2nm
Accuracy of chromaticity coordinates: ±0.0002x, ±0.0003y
Correlative color temperature: 1000K—100000K, resolution: 1K
Range of luminous intensity: 0.01 lm-200,000 lm(depending on the size of sphere);
(2)DC power supply
1. Output range: voltage 0-60.000V, current 0-5.000A; maximum power: 300W
2. Ammeter range: 0.5A/1A/ 2.5A/5A
3. Voltmeter measurement range: 5V/15V /30V/60V
4. Ammeter resolution: 0.0001A;
5. Ammeter accuracy: ± (0.02% reading + 0.01% range +1 word)
6. Current output accuracy: ± (0.05 & reading + 0.2 mA)
Specification
|
item
|
value
|
|
Warranty
|
2 years
|
|
Place of Origin
|
China
|
|
Brand Name
|
HOPOOCOLOR
|
|
Model Number
|
HPCS6300
|
|
Wavelength Range
|
380nm-780nm
|
