Quick Details
-
Brand Name:
-
AOBO
-
Product Name:
-
Radar level meter
-
Measuring Range:
-
20 m
-
Accuracy:
-
±3mm
-
Medium Temperature:
-
-40℃-150℃
-
Output Signal:
-
4-20mA / Hart (Two-wire / Four) RS485/Modbus
-
Process Pressure:
-
-0.1-4.0MPa / Customized
-
Explosion Proof Grade:
-
Exia IIC T6 Ga
-
Protection Grade:
-
IP67
-
Medium:
-
Liquid /Solid Material
-
Keywords:
-
Radar level meter
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOBO
-
Product Name:
-
Radar level meter
-
Measuring Range:
-
20 m
-
Accuracy:
-
±3mm
-
Medium Temperature:
-
-40℃-150℃
-
Output Signal:
-
4-20mA / Hart (Two-wire / Four) RS485/Modbus
-
Process Pressure:
-
-0.1-4.0MPa / Customized
-
Explosion Proof Grade:
-
Exia IIC T6 Ga
-
Protection Grade:
-
IP67
-
Medium:
-
Liquid /Solid Material
-
Keywords:
-
Radar level meter
Product Description

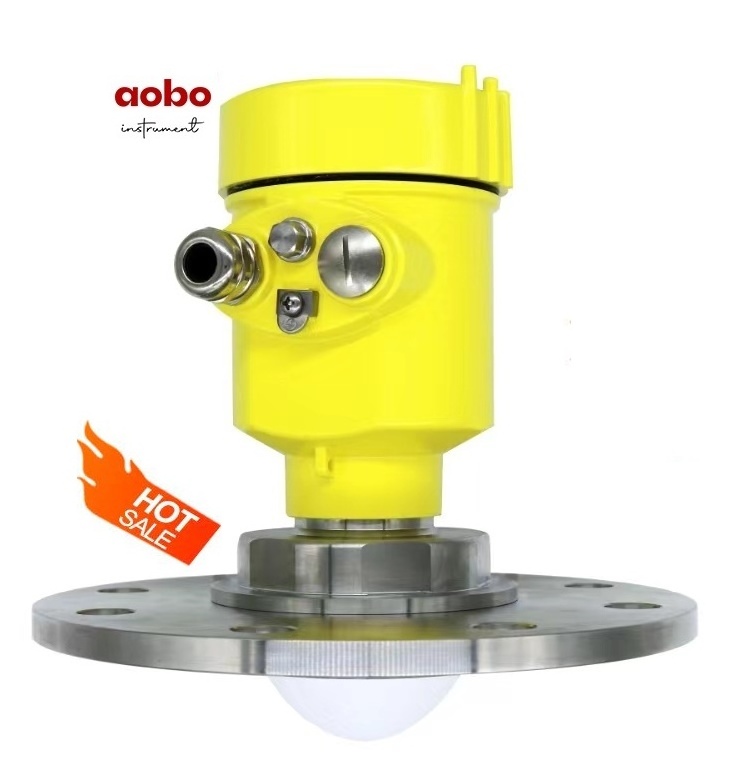

80g Radar Level Meter Reservoir Level Meter new Solid Radar Level Measurement Meter With High Accuracy
AOBO
radar level sensor operating at 76-81 GHz, which has a maximum measuring range of 120m and a minimum blind zone of 8cm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.
Product Features
Charateristics of AOBO Radar Level Sensor
1）Wide range of non-contact measurement;
2）Multiple range options;
3) High precision and accurate measurement.
4) Strong anti-interference function;
Product Paramenters
|
Item
|
Radar Level Sensor
|
|
Process Connection
|
Flange
|
|
Accuracy
|
±3mm
|
|
Process Pressure
|
-0.1-4.0 MPa (Customized)
|
|
Output Signal
|
4-20mA / Hart (Two-wire / Four-wire)) RS485/ Modbus
|
|
Medium Temperature
|
-40℃-150℃
|
|
Protection Grade
|
IP67
|
|
Explosion Proof Grade
|
Exia IIC T6 Ga
|
Product Detail
Product Application
