Quick Details
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
950Deg.C Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Max temperature:
-
750 Deg.C
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Application:
-
air, liquid,mould
-
Certification:
-
CE, SGS, ISO
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
950Deg.C Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Max temperature:
-
750 Deg.C
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Application:
-
air, liquid,mould
-
Certification:
-
CE, SGS, ISO
Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
1. The smallest diameter could be 3 mm.
2. Unlimited length, 15 to 2000mm
3. High power density, and the highest power density could be 50W per square centimeter.
4. Long life time
5. Warranty: One year
6. Different type of wire available according to the usage environment.

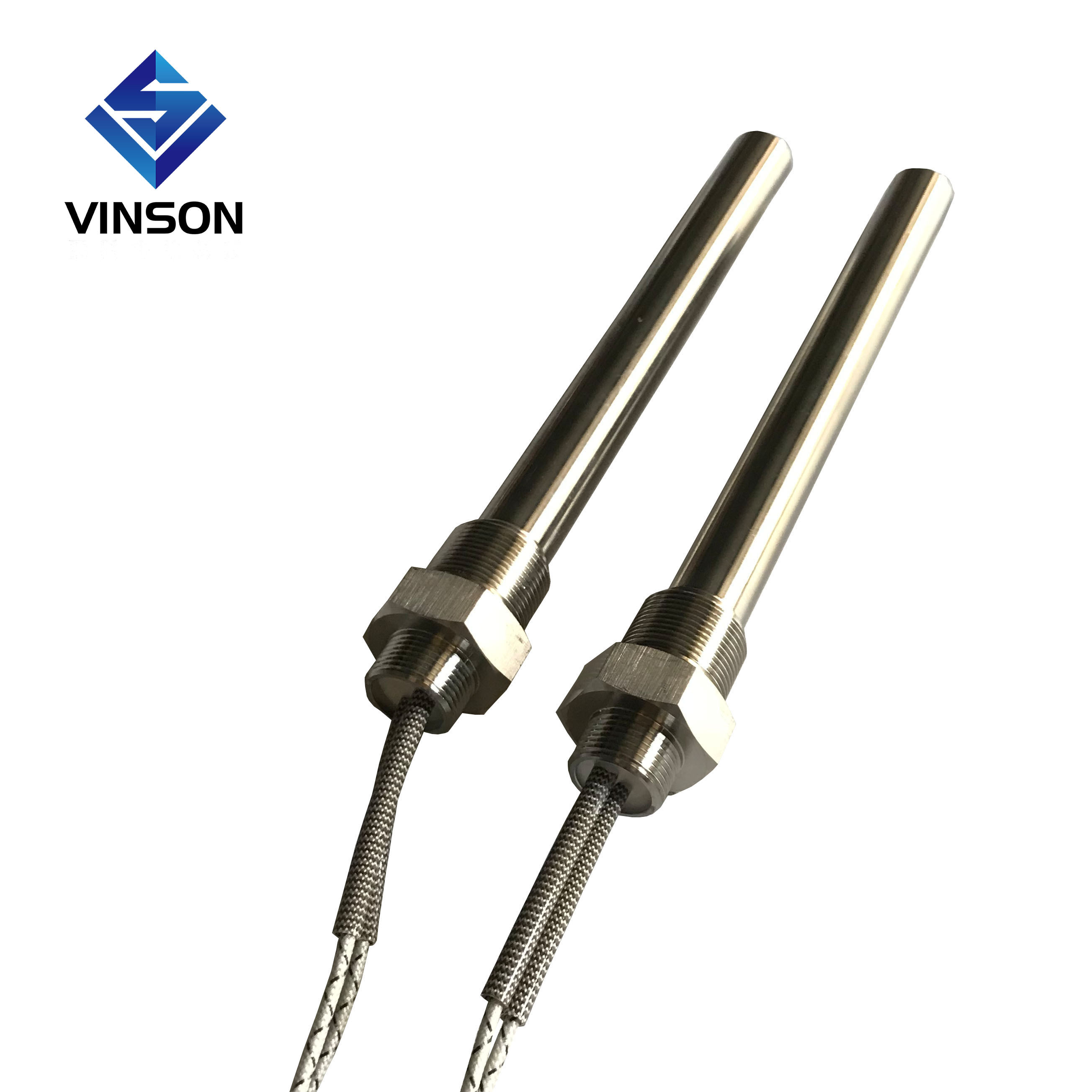

Cartridge heater in Industrial heater
* High-Density swaged Cartridge Heater
* Many diameters offered as standard
* Alloy sheath for high corrosion resistance
Cartridge heater in Industrial heater
* We support OEM order,and print Brand or Logo on surface.
* We can custom cartridge heaters specially(According to your size,voltage,power etc.)
Application of Cartridge heater
* 3D printer.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.
* Medical equipment.
