Quick Details
-
Place of Origin:
-
shenzhen
-
Brand Name:
-
JOAREON
-
Model Number:
-
12V 10A Power Supply
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
1A 2A 5A 8A 10A 15A 20A 30A 40A 50A
-
Product Name:
-
Switching Power
-
Application:
-
CCTV Camera
-
Output:
-
DC12V
-
Weight:
-
55g to 1625g or customize
-
Warranty:
-
2 Years
Quick Details
-
Output Power:
-
15-500W
-
Input Voltage:
-
100-240VAC 1.8A
-
Output Voltage:
-
12V
-
Place of Origin:
-
shenzhen
-
Brand Name:
-
JOAREON
-
Model Number:
-
12V 10A Power Supply
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
1A 2A 5A 8A 10A 15A 20A 30A 40A 50A
-
Product Name:
-
Switching Power
-
Application:
-
CCTV Camera
-
Output:
-
DC12V
-
Weight:
-
55g to 1625g or customize
-
Warranty:
-
2 Years
Product Description

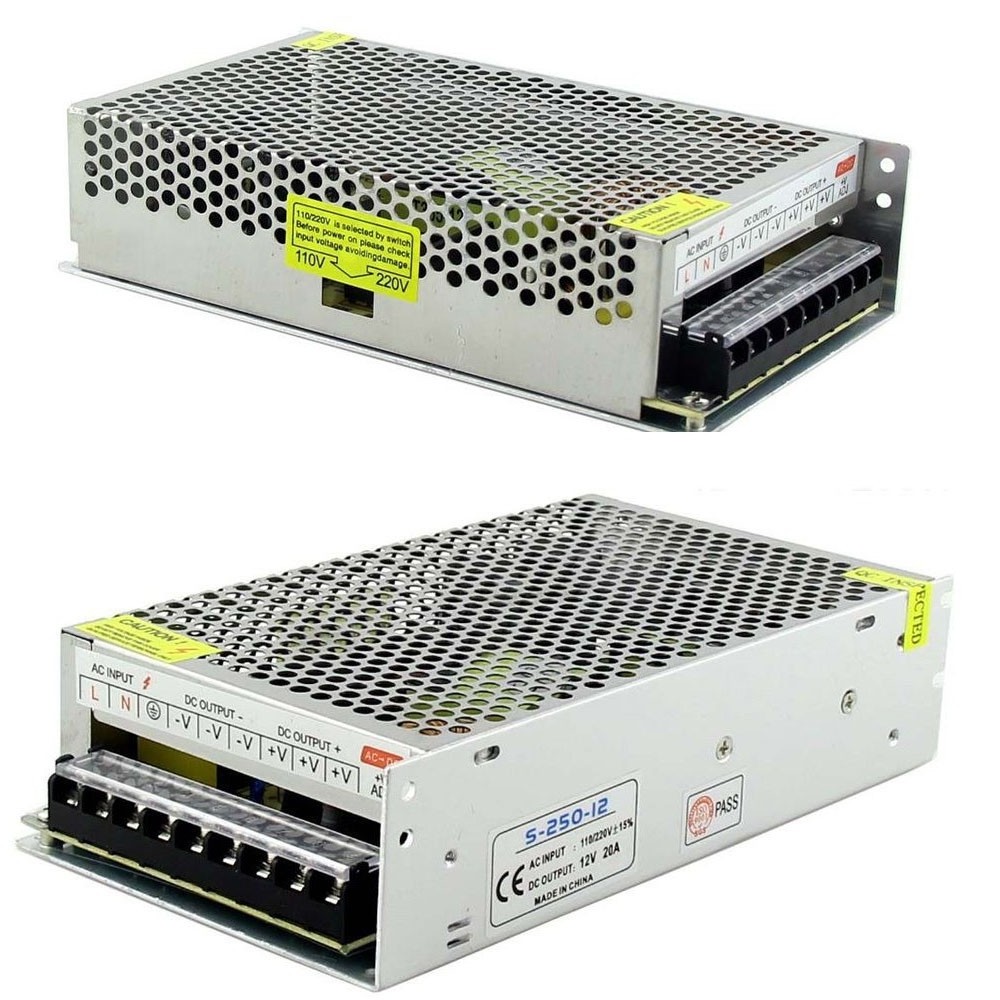

12V 2A / 3A / 5A / 10A / 15A / 20A / 30A / 40A / 60A CCTV CAMERA / LED Switch Power Supply Adapter
Input Voltage: AC100V-265V
Output Voltage: DC 12V 5V 24V 48V
Output Current: 1.5A 2A 3A 5A 10A 15A 20A 30A 40A 60A
Shell Material: Metal case / Aluminum case
Safety Compliance: FCC / CE /RoHs
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
Ambient Humidity: 0~95% Non-Condensation
Input Voltage: AC100V-265V
Output Voltage: DC 12V 5V 24V 48V
Output Current: 1.5A 2A 3A 5A 10A 15A 20A 30A 40A 60A
Shell Material: Metal case / Aluminum case
Safety Compliance: FCC / CE /RoHs
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
Ambient Humidity: 0~95% Non-Condensation
Specification
|
DC Output
|
DC Voltage: 12V
|
|
|
DC Current : 1A 2A 3A 5A 8A 10A 15A 20A 30A 40A 50A
|
|
|
Ripple & Noise: 80MV
|
|
|
DC Adjustable Range: ±10% Rated Voltage
|
|
|
Voltage Tolerance: ±2.0%
|
|
|
Line Regulation: ±0.5%
|
|
|
Load Regulation: ±1%
|
|
|
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
|
|
AC Input
|
AC Voltage Range: 85-264VAC
|
|
|
Frequency Range: 47-63Hz
|
|
|
Efficiency:90%
|
|
|
AC Current: 0.86/115V 0.4A/230V
|
|
|
AC Inrush Current: 20A/115V 40A/230V
|
|
|
Leakage Current< 0.5mA /240VAC
|
|
Protection
|
Over-load: 105%-150% hiccup mode,Auto-recovery
|
|
|
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
|
|
|
Over-temp. : Shut down O/P voltage, Auto-recovery
|
|
Environment
|
Working temp.: -10~ +60C° (Refer to output load derating curve)
|
|
|
Working Humidity:20 ~ 90% RH, non-condensing
|
|
|
Storage Temp.: -10~ +60C°
|
|
|
Storage Humidity: 10 ~ 95% RH
|
|
Safety
|
Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
|
|
|
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
|
Safety standards: CE,RoHS,FCC
|
