Quick Details
-
Model Number:
-
Beihua
-
products name:
-
soft silicone rubber sheet
-
Hardness (shore A):
-
50-75 A soft , low compression force
-
Density(g/cm3):
-
high elastic
-
Tensile strength(Mpa):
-
1.9 ,high flexible
-
style:
-
custom molded,flame retardant, emi shielding, sticky
-
working temperature at max:
-
-65 -150 ,heat resistance ,high temperature,new products
-
resistant high voltage:
-
50Mpa-70Mpa
-
material:
-
conductive rubber elastomer nitrile ,emi shielding rubber
-
manufacture:
-
china supplier
-
color:
-
natural , customized,translucent,clear ,green,red .blue
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRL
-
Model Number:
-
Beihua
-
products name:
-
soft silicone rubber sheet
-
Hardness (shore A):
-
50-75 A soft , low compression force
-
Density(g/cm3):
-
high elastic
-
Tensile strength(Mpa):
-
1.9 ,high flexible
-
style:
-
custom molded,flame retardant, emi shielding, sticky
-
working temperature at max:
-
-65 -150 ,heat resistance ,high temperature,new products
-
resistant high voltage:
-
50Mpa-70Mpa
-
material:
-
conductive rubber elastomer nitrile ,emi shielding rubber
-
manufacture:
-
china supplier
-
color:
-
natural , customized,translucent,clear ,green,red .blue

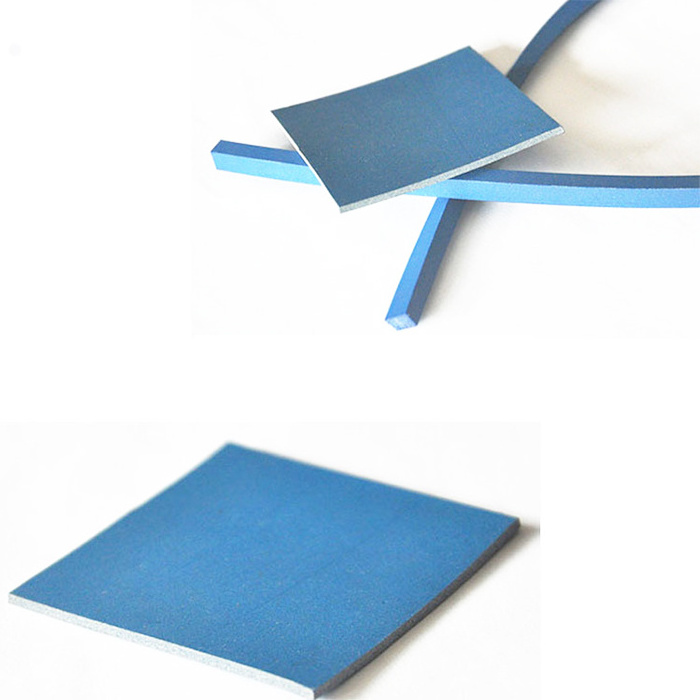

new products EMI conductive rubber soft silicone rubber sheet sticky silicone sheet price of rubber compound
Products description
Product details of emi gasket sheet
|
Material |
conductive silicone rubber |
Color |
Blue |
|
Safety standard |
|
Testing standard |
|
|
Testing items |
Technical index |
Method of testing |
Measurement value |
|
Hardness (shore A) |
|
70±5 |
|
|
Density(g/cm 3 ) |
3.0±0.5 |
ASTM792 |
3.2 |
|
Tensile strength(Mpa) |
>1.38 |
ASTM412 |
>1.92 |
|
Elongation at break(%) |
100~300 |
ASTM412 |
270 |
|
Operating temperature(℃) |
-65~150 |
Mil-83528 |
-65~150 |
|
Volume resistivity ( Ω·cm) |
<0.004 |
Mil-83528 |
0.0031±0.0006 |
|
Volume resistivity after aging test ( Ω·cm) |
<0.01 |
Mil-83528 |
<0.01 |
|
Shielding effectiveness(dB) |
>110 |
Mil-83528 |
>110 |
The advantage of emi gasket sheet
1. Low hardness, high strength, Good elasticity,heat resistance,environmental friendly .
2. Good sealing performance and extrusion resistant performance, materials of high-end business application
3. high performance in the non radiation environments ,Lower compression force.
4. device used in high sealing performance requirements,Lower percentage of compression needed.
Application of products
High-conductive silicone rubber products proved to be widely used in military, electronic, aviation,
spaceflight, ship and other military electronic equipment through the practice for its high performance EMI in harsh environment, and can replace the traditional sealing,
1. Medium and small military electronic computer case and microwave waveguide system
2. Aviation, spaceflight, ships and other military shelter and military electronic equipment;
3. Electronic products (such as computer chassis, mobile phones),
telecommunications, high-frequency control equipment;
4. Electric power, railways and other harsh environment of electronic equipment.
Company imformation &certification
Shenzhen Brilliance Rubber & Plastic materrial Co.,ltd ,Established in 2006 .being the south China office of Beijing Bei hua xin xiang polymer technology Co.,ltd and Dawn Polymer Co ., ltd ,gaining the advanced technical support from elastomer research center of Beijing uninversity of
chemical technology and the technical division of shangdong dawn polymer Co.,ltd. mainly focus on the technical consulting , application ,promotion,and the other service at the high-conductive silicone rubber,fluorine rubber, hydrogenated nitrile rubber(HNBR), rubber compund of roller etc:and the Dawnprene TPV, TPE thermoplastic elastomer, Our products have been certificated for ISO9001.2008.
we are the one of biggest capacity and variety grade manufacture..
Package & shipping Detail: Plastic film and woven, then pallet. It also can be packed according to your requirements
Why choose us ? 1 . Our value massage is'' Quality is our culture''
2.Our core competencies is silicone products ,graphite products ,and thermal products
3.Competitive advantage products
5.Condidentiality agreement Bussiness Secrect Contract
6.Free sample offer & small order welcomed
7.Quality assurance contarct
8. OEM/ODM Service are available.we can design and produce various Non-standard Rubber Parts according to your requirement. Models and logos can be customized according to your requirement
9.we are the direct manufacture, which means the price advantage.
